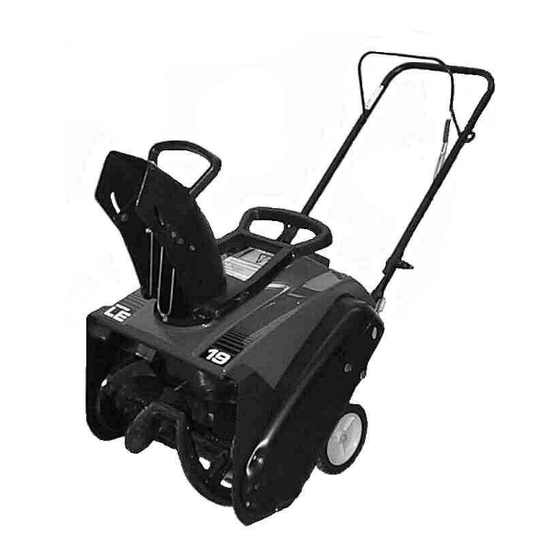

Snapper ELE3190R Safety Instructions & Operator's Manual

L.e. single stage small frame snow thrower series 0
Hide thumbs Also See for ELE3190R:
Table of Contents

Advertisement

Quick Links

MODEL DESIGNATION
ENGINE HP
EL – Light Weight Frame
E – Easy Operation
3 – 3.0 HP (Engine Horse Power)
Thank you for buying a SNAPPER Product! Before operating your Snow Thrower, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 2001
SNAPPER INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
EL
E
19 – 19" Auger Width
L.E. SINGLE STAGE

SNOW THROWER

3
19
0
0 -- Series Designation
R – Recoil Start
SMALL FRAME
SERIES 0
MODELS
ELE3190R
R
ENGINE OPTIONS
SERIES DESIGNATION
AUGER WIDTH
INSTRUCTION No. 7-4235 (I.R. 1/29/01)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELE3190R and is the answer not in the manual?

Questions and answers

Related Manuals for Snapper ELE3190R

Summary of Contents for Snapper ELE3190R

  • Page 1: Snow Thrower

    3 – 3.0 HP (Engine Horse Power) Thank you for buying a SNAPPER Product! Before operating your Snow Thrower, read this manual carefully and pay particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power equipment can be dangerous if used improperly.

  • Page 2: Section 1 - Important Safety Instructions

    If you have any questions pertaining to your snow thrower which your dealer cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough, Georgia 30253. Phone: 800/935-2967.

  • Page 3: Section 1 - Important Safety Instructions

    Spark from the plug could ignite gas exiting engine. 9. Have SNAPPER dealer at least once a year and have the dealer install any new safety devices. 10. Use only genuine SNAPPER replacement parts to assure that original standards are maintained.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SECTION 1 - IMPORTANT SAFETY INSTRUCTIONS... 2-3 TABLE OF CONTENTS ... 4 SECTION 2 – DECALS: SYMBOLS AND SAFETY LABELS... 5-6 SECTION 3 - OPERATING INSTRUCTIONS... 7-11 Pre-start Checklist ... 7-8 Starting & Stopping Engine (Recoil Start Models) ... 9-10 Starting &...

  • Page 5: Section 2 - Decals: Symbols And Safety Labels

    Section 2 – DECALS: SYMBOLS AND SAFETY LABELS DANGER ROTATING IMPELLER. DO NOT use hand to unclog auger/impeller or discharge chute. Stop engine and remove key before unclogging. DANGER ROTATING AUGER. Keep Away. DO NOT allow children or others in the area when Snowthrower is being operated.

  • Page 6: Section 2 – Decals: Symbols And Safety Labels

    Section 2 – DECALS: SYMBOLS AND SAFETY LABELS DANGER FIRE HAZARD. Remove all fuel from fuel SOUND POWER LEVEL tank and carburetor before tipping machine. EUROPEAN COMMUNITY HEARING PROTECTION REQUIRED. CHOKE MAXIMUM HANDLE VIBRATION 34 M/SEC ENGINE PRIMER IGNITION SWITCH YEAR OF MANUFACTURE...

  • Page 7: Section 3 - Operating Instructions

    DO NOT run engine indoors. 3.1.4. Mix fresh, good quality unleaded gasoline and SNAPPER 2-cycle engine oil or equivalent. Mix fuel and oil to a 32:1 ratio. See Figure 3.2. 3.1.5. Add premix fuel to tank after pushing the machine outside where fumes can safely dissipate.
  • Page 8 Replace damaged cord immediately. Contact your SNAPPER service dealer for assistance. To reduce the risk of electric shock, use only with an extension cord intended for outdoor use having a cord type: SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A or SJTOW-A.

  • Page 9: Starting & Stopping Engine (Recoil Start Models)

    Section 3 - OPERATING INSTRUCTIONS 3.2 STARTING, STOPPING & OPERATION (RECOIL START MODELS) 3.2.1. ENGINE & AUGER 1. Move choke control to the choke “ON” position. See Figure 3.4. NOTE: Stop the auger by releasing the auger control. Stop the engine by turning the key switch to the “OFF” position.

  • Page 10: Starting & Stopping Engine (Electric Start Models)

    Replace damaged cord immediately. Contact your SNAPPER service assistance. To reduce the risk of electric shock, use only with an extension cord intended for outdoor use having a cord type: SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJTW-A or SJTOW-A.

  • Page 11: Section 3 - Operating Instructions

    Section 3 - OPERATING INSTRUCTIONS WARNING Objects can be thrown by the snow thrower while it is in operation. Thrown objects could cause serious injury to the operator or bystanders. Always wear safety goggles or other suitable eye protection. Keep people and pets away from area. 3.2.6.

  • Page 12: Section 4 - Maintenance Instructions

    4.1 INTRODUCTION To retain the quality of the snow thrower, use genuine SNAPPER replacement parts only. Contact a local SNAPPER dealer for parts and service assistance. For the correct part or information for a particular snow thrower, always mention model and serial number.

  • Page 13: Section 5 - Repair And Adjustments

    Section 5 - REPAIR & ADJUSTMENTS WARNING DO NOT attempt any adjustments, maintenance, service, or repairs with engine running. Stop auger. Stop engine. Remove key. Remove spark plug wire and secure wire away from spark plug. 5.1 AUGER BELT ADJUSTMENT/REPLACEMENT When operating machine release the auger clutch control.

  • Page 14: Auger Drive Belt Replacement

    Section 5 - REPAIR & ADJUSTMENTS WARNING DO NOT attempt any adjustments, maintenance, service, or repairs with engine running. Stop auger. Stop engine. Remove key. Remove spark plug wire and secure wire away from spark plug. 5.1.2. AUGER BELT IDLER PULLEY ADJUSTMENT (Continued From Previous Page) 3.

  • Page 15: Auger Belt Replacement

    Section 5 - REPAIR & ADJUSTMENTS WARNING DO NOT attempt any adjustments, maintenance, service, or repairs with engine running. Stop auger. Stop engine. Remove key. Remove spark plug wire and secure wire away from spark plug. 5.1.3. AUGER BELT REPLACEMENT (Continued From Previous Page) 5.

  • Page 16: Troubleshooting

    PROBLEM Engine Will Not Start 1. Fuel tank empty. Using Recoil Starter 2. Engine needs choking & priming. 3. Spark plug fouled or wire disconnected. Engine Will Not Crank 1. Power extension cord not plugged into machine or Using Electric Starter 110 Volt outlet.

  • Page 17: Warranty

    For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
  • Page 18 SNOW THROWER SERIES 0 Snapper products are built using engines that meet or exceed all applicable emissions requirements on the date manufactured. The labels on those engines contain very important emissions information and critical safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine manual, and on the machine, engine and attachments.
