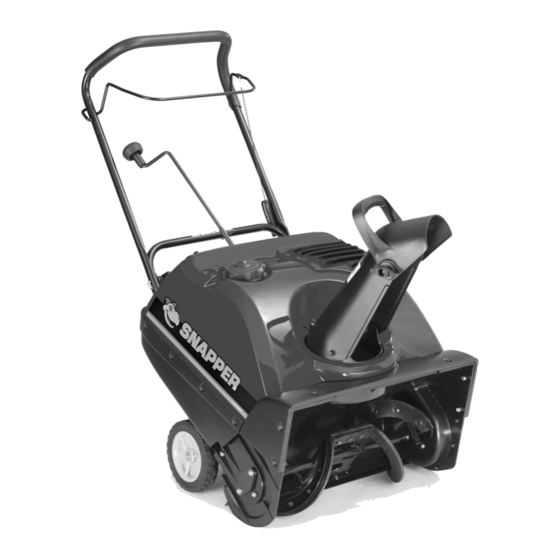

Page 1: Single Stage Snow Thrower
Parts Manual for 522 SINGLE STAGE SNOW THROWER SERIES 0 MODEL ESS50220E (7800083) SS50220E (7800080) Briggs & Stratton Yard Power Products Group 535 Macon Road Manual No. 7006053 McDonough, GA, 30253 U.S.A. 800-935-2967 Revision B, 4/28/2008 TP 400-5245-B-SX-N... -
Page 3: Table Of Contents
PAGE GROUP Handle Assembly Group Body Covering Group Auger and Housing Group Chute System Group Frame and Fuel Tank Group Engine Drive System Group Wheel Assembly Group Electric Starter Group Decals Group 522 SINGLE STAGE SNOW THROWER SERIES 0 Table Of Contents Manual No. -
Page 4: Handle Assembly Group
Handle Assembly Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 5 Handle Assembly Group Item Part No Description 722348 HANDLE & GRIP ASSEMBLY 722313 CONTROL, Bail 723154 BOOT, Clutch Spring 722366 CABLE, Upper Control 723259 BRACKET, Control Adjust 723261 CABLE, Lower Control 723263 SPRING, Extension 3/4 O.D. x .069 722326 U-BOLT, 5/16-18 723239 WASHER, Form 11/32 ID 1.0 722136...
-
Page 6: Body Covering Group
Body Covering Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 7 Body Covering Group Item Part No Description 1740006 PANEL, Control 22” SS DLR 723280 SCREW, 1/4-20 x 1.25 725330 WASHER, Flat 9/32 x 5/8 x .065 725429 NUT, 1/4-20 722906 NUT, 5/8-32 691959 KEY, Set 394281S PRIMER, Carburetor 722327 PANEL, Access 22” SS DLR 727479 NUT, Keps 1/4-20 723672...
-
Page 8: Auger And Housing Group
Auger and Housing Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 9 Auger and Housing Group Item Part No Description 725304 SCREW, 1/4-20 x 1.00 725429 NUT, Hex 1/4-20 723010 SCREW, 1/4-20 x 3/4 725330 WASHER, Flat 1740348 HOUSING ASSEMBLY, Auger 728095 SCREW, 1/4-20 x 5/8 1740380 AUGER, Assembly, 22” 724638 RETAINER, Bearing 724001 BEARING, Ball 724570...
-
Page 10: Chute System Group
Chute System Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 11 Chute System Group Item Part No Description 723283 SCREW, 1/4-14 727525 RETAINER, Chute Ring 1740060 RING, Chute 723873 BOLT, Carriage 5/16-18 x 3/4 725320 NUT, 5/16-18 Reghex 722303 NECK, Chute 1716631 CHUTE, 22” Upper 727445 T-KNOB, 3.00 Plastic 1920283 WASHER, Flat 1 - 1/2 O.D 1716642 LOCKWASHER, Shakeproof 725408...
-
Page 12: Frame And Fuel Tank Group
Frame and Fuel Tank Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 13 Frame and Fuel Tank Group Item Part No Description 723010 SCREW, 1/4-20 x 3/4 725330 WASHER, Flat 9/32 x 5/8 x .065 1740031E701 BRACKET, Fuel Tank 1715917 CAP, Fuel Tank 1716634 TANK, Fuel 725429 NUT, Hex 1/4-20 015x43 NUT, Hex 5/16-18 722361 TUBING, Fuel Line 723462...
-
Page 14: Engine Drive System Group
Engine Drive System Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 15 Engine Drive System Group Item Part No Description * ENGINE, 5HP 4CY B&S Model 09A413-0202-E1 * ENGINE, 5HP 4CY B&S Model 09A413-0203-E1 722304 CRADLE ASSEMBLY, Engine 722321 FRAME, Left Hand 722360 ANTIVIBRATION MOUNT, Engine 727947 BOLT, Hex 5/16-18 x 0865 725244 BOLT, Hex 5/16-24 x 1.125 725331...
- Page 16 Engine Drive System Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0...
-
Page 17: Engine Drive System Group
Engine Drive System Group Item Part No Description 1740284 INSTRUCTION BOOK (Not shown) Footnotes: Note: * For information on Replacement Parts contact the engine manufacturer. 522 SINGLE STAGE SNOW THROWER SERIES 0 Note Manual No. 7006053 TP 400-5245-B-SX-N... -
Page 18: Wheel Assembly Group
Wheel Assembly Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 19 Wheel Assembly Group Item Part No Description 724559 RETAINER, E-Ring 725332 WASHER, Flat 13/32 x 13/16 725603 WHEEL & TIRE 7” x 1.50” 723192 SPACER, Sleeve 13/32 x 5/8 722328 Rod, Axle 724750 WASHER, Flat - 25/64 x 1.00 x 1/8 Footnotes: 522 SINGLE STAGE SNOW THROWER SERIES 0...
-
Page 20: Electric Starter Group
Electric Starter Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... - Page 21 Electric Starter Group Item Part No Description 723237 SCREW, No. 8-32 x 3.00 723979 WASHER, FLAT No. 8 722892 NUT, Keps No. 8 791534 * LEVER, Choke 698855 * KIT, Muffler Assembly 691880 * GASKET, Muffler 727915 * BOLT, Muffler 724865 CORD, Electric 110V 10 Feet 728168...
-
Page 22: Single Stage Snow Thrower
Decals Group Manual No. 7006053 522 SINGLE STAGE SNOW THROWER TP 400-5245-B-SX-N SERIES 0... -
Page 23: Decals Group
729460 DECAL, Auger Engine 724267 DECAL, Danger Chute 729456 DECAL, Danger Chute 1741389 DECAL, Snapper ST0522 R.H. 1741395 DECAL, Snapper SS522EX Right Hand 1740368 DECAL, Snapper ST0522 L.H. 727742 DECAL, Hot Muffler 729461 DECAL, Hot Surface 727378 DECAL, Auger Control 729555 DECAL, Briggs &... - Page 26 IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED Briggs & Stratton Yard Power Products Group 535 Macon Road McDonough, GA, 30253 U.S.A. 800-935-2967 www.snapper.com Copyright © 2008 Briggs & Stratton Corporation Milwaukee, WI USA. All Rights Reserved Manual No. 7006053...
