Kushlan 600 Series Operating Instructions Manual page 12

Do not tilt mixer upright onto stand on a wet, uneven or slippery surface. Failure to fol-
low this instruction could result in personal injury or damage to equipment.

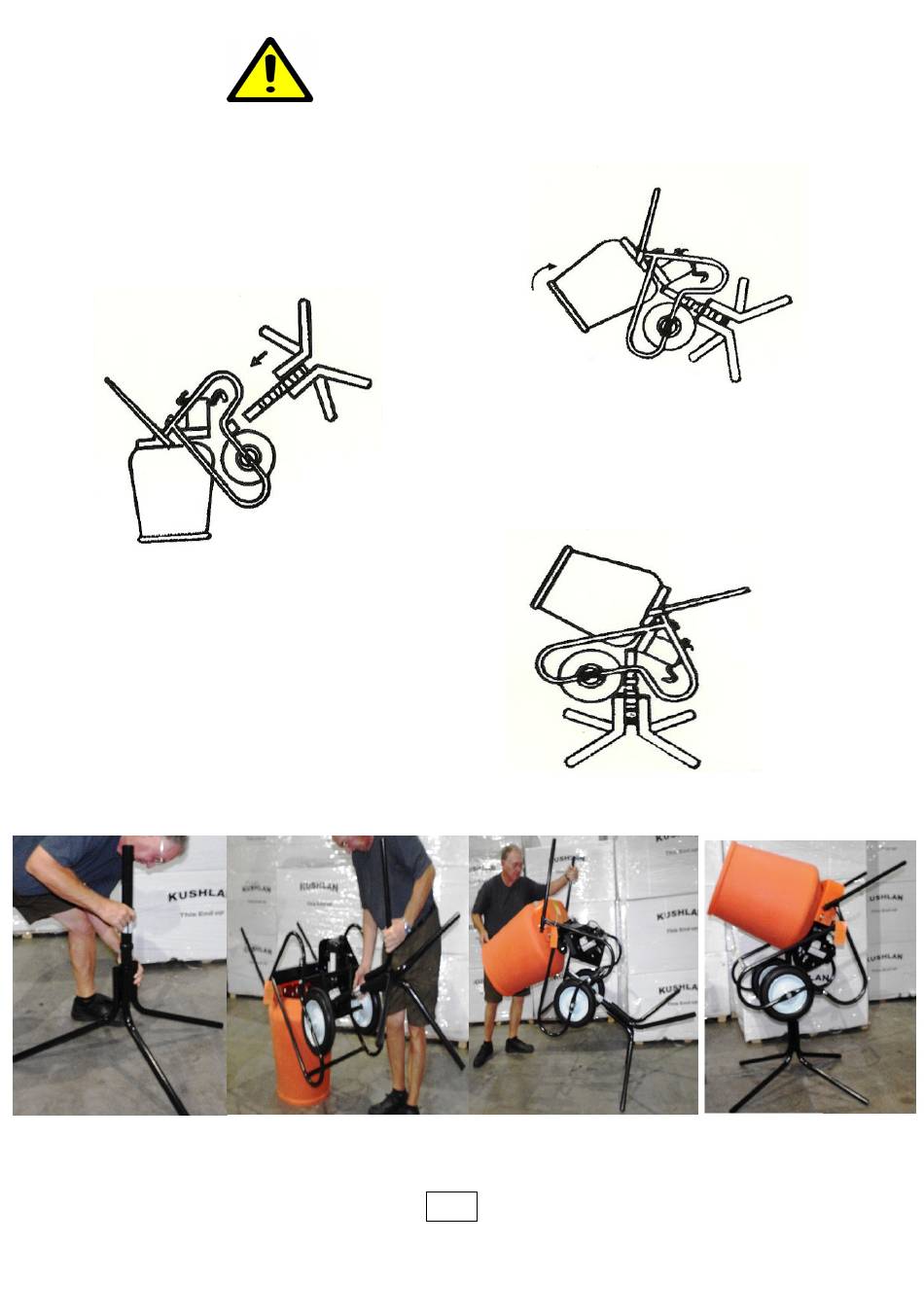

3. Insert pivot tube of tri-pod stand assembly through
pivot mount. (Figure 4)
Figure 4– Insert tri-pod stand assembly through
pivot mount plate
4. Once the stand has been attached, move to the
opening side of the drum and begin tilting the
mixer upright onto the stand. Always bend your
knees and use correct posture for lifting. Always
tilt from the front of the mixer. (Figure 5)
Insert pipe into
legs of the stand
WARNING
Insert stand
11
Figure 5– Tilt mixer upright onto stand.
5. Once mixer has been tilted upright
onto the stand, the mixer should be
tipped back into mixing position before
operating. (Figure 6)
Figure 6– Unit ready for mixing.
Lift up mixer to stand up
