Operating Instruction
and
Parts Manual
for

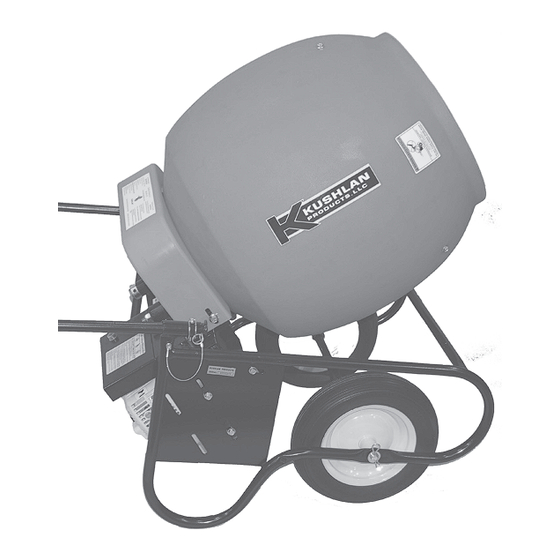

350/600 Gas
Gas Model Series With
Optional Tri-Pod Stand
WARNING
DO NOT ATTEMPT TO START OR OPERATE THE
MACHINE UNTIL ALL THE INSTRUCTIONS HAVE
BEEN READ AND UNDERSTOOD BY THE OPERATOR.
FAILURE TO DO SO COULD RESULT IN SERIOUS
BODILY INJURY AND/ OR PROPERTY DAMAGE!
12010 Dairy Ashford Road, Suite 160
Sugar Land, TX 77478
281-313-2506 • 800-469-4178
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kushlan 350 Gas
Summary of Contents for Kushlan 350 Gas
- Page 1 Operating Instruction Parts Manual 350/600 Gas Gas Model Series With Optional Tri-Pod Stand WARNING DO NOT ATTEMPT TO START OR OPERATE THE MACHINE UNTIL ALL THE INSTRUCTIONS HAVE BEEN READ AND UNDERSTOOD BY THE OPERATOR. FAILURE TO DO SO COULD RESULT IN SERIOUS BODILY INJURY AND/ OR PROPERTY DAMAGE! 12010 Dairy Ashford Road, Suite 160 Sugar Land, TX 77478...
-
Page 2: Safety Instructions
SHOULD YOU REQUIRE ANY SET-UP OR OPERATING ASSISTANCE WITH YOUR PRODUCT, DO NOT RETURN TO ORIGINAL PLACE OF PURCHASE •After referring to the operation manual, if assistance is still needed, please consult our web Site at www.kushlanproducts.com • From our web site you may e-mail us directly If assistance is still required, please call our customer service department at 1-800-469-4178 Safety Alert Symbol: This safety alert symbol is used to attract your attention! •... - Page 3 Model 350GAS & 350GAS With Stand Parts List DESCRIPTION ITEM PART NO Frame assembly 35-1 Polyethylene 3.5 cf drum with side holes 35-2 Gas Engine 35-3G 1 1/2" pulley 35-4 28" V-belt 35-5 6" pulley 35-6 Jackshaft with pinion 35-7 Jackshaft housing 35-8 1/2 Ball Bearings...
- Page 4 Model 350GAS With Stand Parts List Stand for 350Gas Mixer Item Parts No Description 35-37 Support Brace 35-38 Vertical Pipe Support 35-39 Horizontal Rest Bracket 35-40 Leg Support 1 Pipe 35-41 Leg Support 2 Pipe 35-42 Whizlock Screw...
- Page 5 Model 600GAS & 600GAS With Stand Parts List DESCRIPTION ITEM PART NO Frame assembly 60-1 Polyethylene 6.0 cf drum 60-2 Gas Engine 60-3G 60-4 1 1/2” pulley 60-5 30” V-belt 60-6 6” pulley 60-7 Jackshaft with pinion 60-8 Jackshaft housing 60-9 9/16”...
- Page 6 Model 600GAS With Stand Parts List Stand for 600Gas Mixer Item Parts No Description 60-38 Support Brace 60-40 Vertical Pipe Support 60-39 Horizontal Rest Bracket Whizlock Screw 60-41 60-42 Leg Support 1 Pipe 60-43 Leg Support 2 Pipe...
-
Page 7: Assembly Instruction
Assembly Instruction Step 1 Step 2 Step 3 Step 4 Wheel Assembly With the long end of wheel hub facing Install Wheels as shown, pushing axle rod Put washers on the axle, then fix R clips out assemble. end out and the other end into the frame. into holes. - Page 8 350 Gas How to Mix Concrete How to Mix Sand & Gravel 1. You will need approx. 2 1/2 gallons of water. 1. Use a 8 1/2 X 12” square shovel 2. 2-80 lb bags of premix concrete 2. Portland cement, gravel or round stone and masonry sand.
- Page 9 Maintenance Final Assembly • Pedestal Stand Assembly 5. Once mixer has been tilted upright onto the stand, the mixer should be tipped back into mix- ing position before operating. (Figure 6) 1. Place two halves of the support legs together and insert pivot tube through the center of the legs to join together.
- Page 10 Limited Warranty Policy Kushlan Products makes every effort to assure that its products meet high quality and durability standards and war- rants to the original retail consumer purchaser of our products (you) that each such product be free from defects in materials and workmanship as follows: ONE(1)YEAR limited warranty on motors.
