Operating Instruction
and
Parts Manual
for

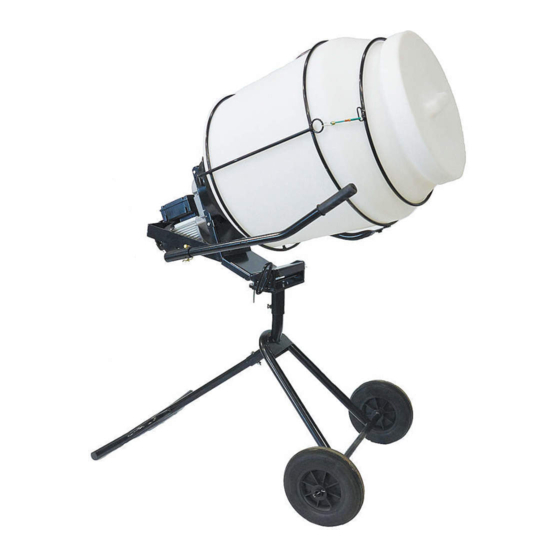

450DD
With Removable
Liner & Lid
WARNING
DO NOT ATTEMPT TO START OR OPERATE
THE MACHINE UNTIL ALL THE INSTRUCTIONS
HAVE BEEN READ AND UNDERSTOOD BY THE
OPERATOR. FAILURE TO DO SO COULD
RESULT IN SERIOUS BODILY INJURY AND/ OR
PROPERTY DAMAGE!
12010 Dairy Ashford Road, Suite 160
Sugar Land, TX 77478
281-313-2506 • 800-469-4178
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kushlan 450DD
Summary of Contents for Kushlan 450DD
- Page 1 Operating Instruction Parts Manual 450DD With Removable Liner & Lid WARNING DO NOT ATTEMPT TO START OR OPERATE THE MACHINE UNTIL ALL THE INSTRUCTIONS HAVE BEEN READ AND UNDERSTOOD BY THE OPERATOR. FAILURE TO DO SO COULD RESULT IN SERIOUS BODILY INJURY AND/ OR...
- Page 2 SHOULD YOU REQUIRE ANY SET-UP OR OPERATING ASSISTANCE WITH YOUR PRODUCT, DO NOT RETURN TO ORIGINAL PLACE OF PURCHASE •After referring to the operation manual, if assistance is still needed, please consult our web Site at www.kushlanproducts.com • From our web site you may e-mail us directly If assistance is still required, please call our customer service department 1-800-469-4178 Safety Alert Symbol: This safety alert symbol is used to attract your attention!
- Page 3 Mixer Instructions A. LUBRICATION: There are grease fittings on all models. Apply any type of EP grease until grease begins to come out of the bearings. LUBRICATE ALL FITTINGS BEFORE EACH USE B. GEARBOX MOTOR: Mixer shipped with lubricate/oil in gearbox. Change lubricate/oil every 200 hours. Use Synthetic Mobile 1 LS 75W-90 oil.
- Page 4 Model 450 DD & Removable Liner Parts List Part Number Item DESCRIPTION 450DD-02 Wire Basket For Drum 450DD-03 Plastic Drum 450DD-04 Lid for 450DD Liner DD-808 3/4 HP Gear Motor 450DD-06 R Clip Pin 450DD-07 Drum Handle 450DD-08 Side Handle...
- Page 5 Gearbox and Motor Assembly Parts List Model 350WSB & 350WSB With Stand Parts List Part Number Item DESCRIPTION DD-808 Gearbox and Motor Assembly (110V-60Hz) DDMA-02 Screw (6x25mm) DDMA-03 Seal (40mm) DDMA-04 Screw (6x50mm) DDMA-05 Gearbox Case Front Half DDMA-06 Gearbox Gasket DDMA-07 Pin (8x20mm) Locking Key For Gear and Axle (8x7x15mm)
- Page 6 Gearbox and Motor Assembly Parts List...
-
Page 7: Assembly Instruction
Assembly Instruction Step 1 Step 2 Step 3 Step 4 Install Wheels on Lower Frame Unit Put on Washer and Snap on R-clip. Insert Draw Bar into Main Frame. Put on Swivel Bracket to Main Frame. Step 8 Step 5 Step 6 Step 7 Connect Gear Motor Mounting Base to... - Page 8 Assembly Instruction Step. 1 Main Frame Place the main frame (A) on a level surface. Insert the draw bar (B) into the main frame. Secure with the 76.2 mm hex head bolt and nut (C) on top (A), and the looking bolt (D) to the side (B). (Use the open wrench provided).
- Page 9 Assembly Instruction Step. 3 Mounting the Mixing Drum Step. 4 Tilting Handle Finally, insert both tilting handles (A) in the gearbox motor assembly mounting frame (B) (as shown) and lock using the cotter pin (C)
-
Page 10: Transporting The Mixer
Transporting the Mixer Operation Disconnect the power cord. Hold the support leg and dump handle and move as shown below. Make sure there is no material in the drum 1. Position the mixer on a level surface. (NOTE: Maximum slope is 5 degrees. Before filling the drum, make sure the mixer can empty into a wheel barrow). - Page 11 This warranty gives you specific legal rights, and you may also have other right which vary from state to state. For service. Contact Kushlan Products 12010 Dairy Ashford Road, Suite 160 Sugar Land, TX 77478 • Phone (281)313-2506 Fax (281)313-2509...
