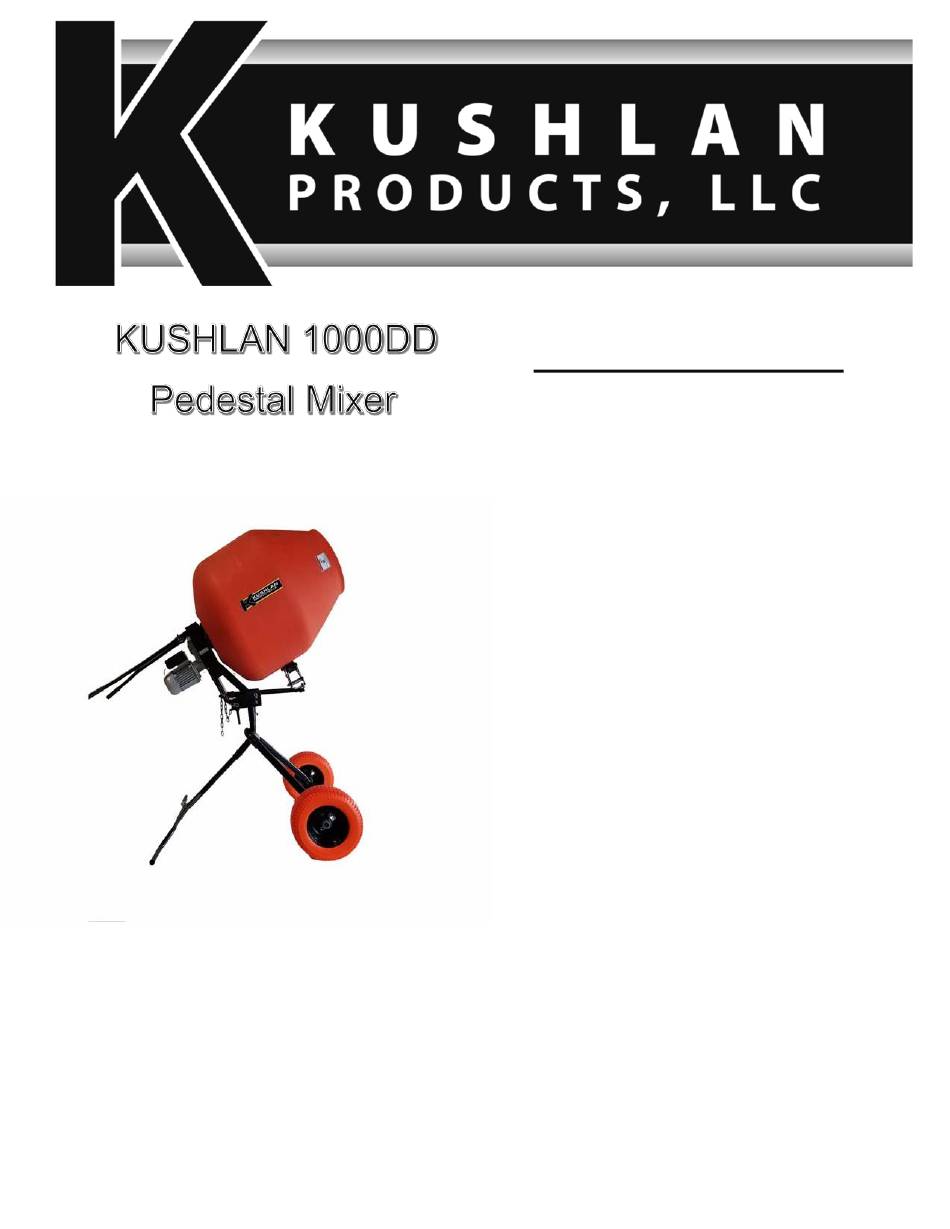

Kushlan 1000DD Manual

Portable gear drive pedestial

Advertisement

Quick Links

Kushlan Products, LLC
2747 W. Grand Parkway N. Suite B
Katy, TX 77449
FEATURES INCLUDE:
Portable Gear Drive Pedestal Mix-
er offered with flat free tires.
10 cu. ft. polyethylene drum will
hold up to 600 lbs.
1-1/2 HP Capacitor start, high
torque, direct drive, brushless
electric motor with gear box.
Drum rotation 28 RPM with gear
box.
Durable 1-1/2" and 2" gauge steel
tubing frame, with removable
handles.
Shipping weight 303 lbs.
Assembled: 45L x 36W x 48H
281-313-2506
Fax 281-313-2509

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1000DD and is the answer not in the manual?

Questions and answers

Summary of Contents for Kushlan 1000DD

  • Page 1 Drum rotation 28 RPM with gear box. Durable 1-1/2” and 2” gauge steel tubing frame, with removable handles. Shipping weight 303 lbs. Assembled: 45L x 36W x 48H Kushlan Products, LLC 281-313-2506 2747 W. Grand Parkway N. Suite B Fax 281-313-2509 Katy, TX 77449...
  • Page 2 SHOULD YOU REQUIRE ANY SET-UP OR OPERATING ASSISTANCE WITH YOUR PRODUCT, •After referring to the operation manual, if assistance is still needed, please consult our web Site at www.kushlanproducts.com • From our web site you may e-mail us directly, If assistance is still required, please call our customer service de- 1-800-469-4178 partment at Safety Alert Symbol: This safety alert symbol is used to attract your attention!
  • Page 3 ADVERTENCIAS 1. No use esta máquina, ni la arranque ni trate de manejarla antes de haber leído y entendido plenamente todas las instrucciones. 2. Nunca permita que nadie maneje esta máquina si la persona no está bien familiarizada con estas reglas operación segura.
  • Page 4 Mixer Instructions A. LUBRICATION: There are grease fittings on wheels. Apply any type of EP grease until grease begins to come out of the bearings. LUBRICATE ALL FITTINGS BEFORE EACH USE. B. GEARBOX MOTOR: Mixer shipped with grease in gearbox. Change grease every 200 hours. Use 75W-90 gear lube.
  • Page 5 Item # Part # Description 1000DDWB‐01 Machine Bolt m12x70 1000DDWB‐02 Outside Drum Plate with Bushing 1000DDWB‐03 Polyethylene Drum 10.0 cu. ft. 1000DDWB‐04 Inside drum plate 1000DDWB‐05 Bolts for drum plate 3/8” ‐ 16 x 2 1000DDWB‐06 Steel mixing blades 1000DDWB‐07 Bolts for blades 3/8”...
  • Page 6 Item # Part # Description 1000DDWB‐24 Gear Motor Mounting Plate 1000DDWB‐25 Dump Handle 1000DDWB‐26 Draw Bar 1000DDWB‐04 Main Frame 1000DDWB‐28 Swivel Bracket 1000DDWB‐29 Pivot Axle Pin (small) 1000DDWB‐30 Pivot Axle Pin (large) 1000DDWB‐31 Wheel for 1000DD Pedestal...
  • Page 8 Item # Part # Description DD‐1000 Gearbox and motor assembly (110V‐60Hz) DDMA‐02 Screw (6x25mm) DDMA‐03 Seal (40mm) DDMA‐04 Screw (6x50mm) DDMA‐05 Gearbox case‐ front half DDMA‐06 Gearbox gasket DDMA‐07 Pin (8x20mm) DDMA‐08 Locking key for gear and axle (8x7x15mm) DDMA‐09 Gearbox ball bearing DDMA‐10 Gear (Z79)
  • Page 10 For service. Contact Kushlan Products 2747 W Grand Pkwy N Ste B Katy, Tx 77449 • Phone (281)313- 2506 Fax (281)313-2509 Kushlan Products hace todo lo posible por asegurarse de que sus productos cumplan con altas normas de calidad y durabilidad y le gar- antiza al comprador original de nuestros productos (usted) que cada producto está...
  • Page 11 Teléfono (281)313-2506 Fax (281)313-2509 Kushlan Products met tout en oeuvre pour assurer que ses produits satisfont aux normes de qualité et de durabilité les plus strictes et garantit à l’acheteur-consommateur au détail d’origine de nos produits (vous) que chaque produit est exempt de défaut et matériaux et main- d’oeuvre comme suit :...
