SPXFLOW Power Team P59L-1500 SERIES Operating Instructions Manual

Two-stage hydraulic hand pump
Hide thumbs

Advertisement

Table of Contents

SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699 USA
powerteam.com
Definition: A hydraulic hand pump delivers hydraulic fluid under pressure by directly applied manual effort.

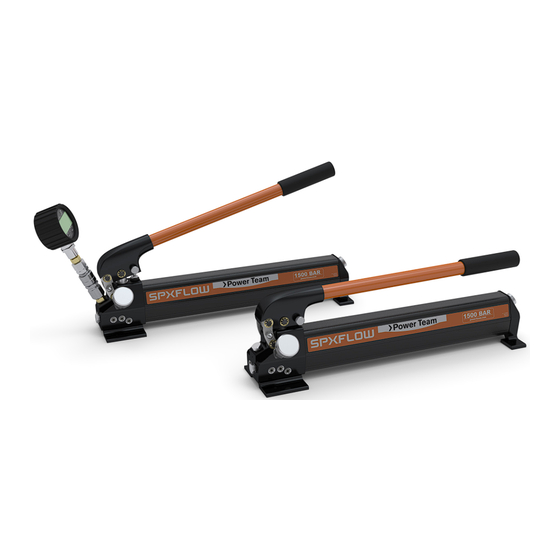

Note: Illustration depicts general pump configurations.
For Use
Part
With
No.
Stage
Single-
Acting
Cylinders
P59L-1500
(Pump
includes
2-Way
Valve)
9/16-18 Coned-and-Threaded Connection port(s) on all pumps
© 2017 SPX FLOW, Inc.
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031
HYDRAULIC HAND PUMP
Max. Pressure: See Pump Data Plate
Volume & Pressure
Volume per
Maximum
Stroke
Pressure
In.
cm
psi
3
3
1
0.68
11.2
300
2
0.05
0.88
22,500
Operating Instructions for:
TWO-STAGE
Handle
Lever
Effort
Type
bar
lbs.
kg
20
72
32.7
B
1550
Table 1
1
P59L-1500 SERIES
Reservoir
Oil
Usable Oil
Capacity
Capacity
In.
cm
In.
cm
3
3
3
3
67.1
1100
44.5
730
Form No. 1001082
Rev. 0
Sept. 5, 2017
Product
Weight
lbs.
kg.
10.4
4.7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Power Team P59L-1500 SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SPXFLOW Power Team P59L-1500 SERIES

Summary of Contents for SPXFLOW Power Team P59L-1500 SERIES

  • Page 1 Operating Instructions for: SPX Hydraulic Technologies Tech Services: (800) 477-8326 5885 11th Street Fax: (800) 765-8326 Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 powerteam.com Fax: (800) 288-7031 P59L-1500 SERIES TWO-STAGE HYDRAULIC HAND PUMP Max. Pressure: See Pump Data Plate Definition: A hydraulic hand pump delivers hydraulic fluid under pressure by directly applied manual effort.

  • Page 2: Safety Explanations

    SAFETY EXPLANATIONS Two safety symbols are used to identify any action or lack of action that can cause personal injury. Your reading and understanding of these safety symbols is very important. - Danger is used only when your action or lack of action will cause serious human injury or death.

  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS WARNING : To help prevent personal injury, • Before operating the pump, all hose connections must be tightened with the proper tools. Do not overtight- en. Connections need only be tightened securely and leak-free. Overtightening may cause premature thread failure or high pressure fittings to split at pressures lower than their rated capacities.

  • Page 4: Hydraulic Connections

    SET-UP Hydraulic Connections IMPORTANT: The P59L-1500 series hand pump uses a compact coned-and-threaded connection for attaching hydraulic fittings. Follow the fitting manufacturer’s specifications and recommended torque values when making connections using these types of fittings 1. Clean all areas around the fluid ports of the pump and cylinder. Clean all hose ends, couplers, and union ends.

  • Page 5: Preventive Maintenance

    PREVENTIVE MAINTENANCE IMPORTANT: Any repair or servicing that requires dismantling the pump must be performed in a dirt-free environment by a qualified technician. Lubrication Apply lubricant regularly to all pivot and rubbing points. Use a good grade of No. 10 motor oil or grease. Do not use dry lubricants. Bleeding Air From the System Air can accumulate in the hydraulic system during the initial set-up or after prolonged use, causing the cylinder to respond slowly or in an unstable manner.
  • Page 6 Preventive Maintenance continued Hydraulic Fluid Level WARNING : Cylinder(s) connected to the pump must be fully retracted before checking the fluid level. Release all system pressure before breaking any hydraulic connection in the system. Check the hydraulic fluid level in the reservoir periodically. Use a funnel with a filter to add hydraulic fluid if needed.

  • Page 7: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING : To help prevent personal injury, always release pump pressure and disconnect hoses(s) from pump before making repairs. Refer to the appropriate pump parts list during trouble-shooting. Repairs must be performed in a dirt-free environment by qualified personnel familiar with this equipment. PROBLEM CAUSE SOLUTION...

  • Page 8: California Proposition 65 Warning

    POWER TEAM FACILITIES & CONTACT www.spxflow.com SPX Flow Customer Service: (800) 541-1418 California Proposition 65 Warning This product contains or may contain chemical(s) known to the state of California to cause cancer or other reproductive effects. Form No. 1001082 © 2017 SPX FLOW, Inc.
  • Page 9 English Original DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY We declare under our sole responsibility that our Hand-Pump Models: 62072, 201338-TID, P157, 62087, P12, P157D, 64122, P19, P159, 64215, P19L, P159D, 64372, P23, P300, 66463, P30F, P300D, 64662, P55, P460, 64663, P59, P460D...
