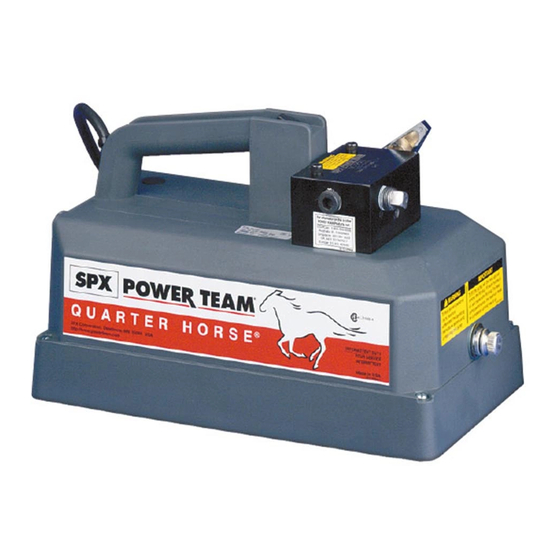

SPXFLOW PE10 Series Quick Start Manual

Electric hydraulic pump
Hide thumbs

Advertisement

Quick Links

Download this manual
SPX Hydraulic Technologies
5885 11th Street
Rockford, IL 61109-3699 USA
powerteam.com
For manifold or
For manifold or
valve options, see
valve options, see
"PARTS INCLUDED
"PARTS INCLUDED
BUT NOT SHOWN"
BUT NOT SHOWN"
section of list.
section of list.
1
31
30
29
28
26,
27
25
24
23
22
© 2019 SPX FLOW, Inc.
Tech Services: (800) 477-8326
Fax: (800) 765-8326
Order Entry: (800) 541-1418
Fax: (800) 288-7031

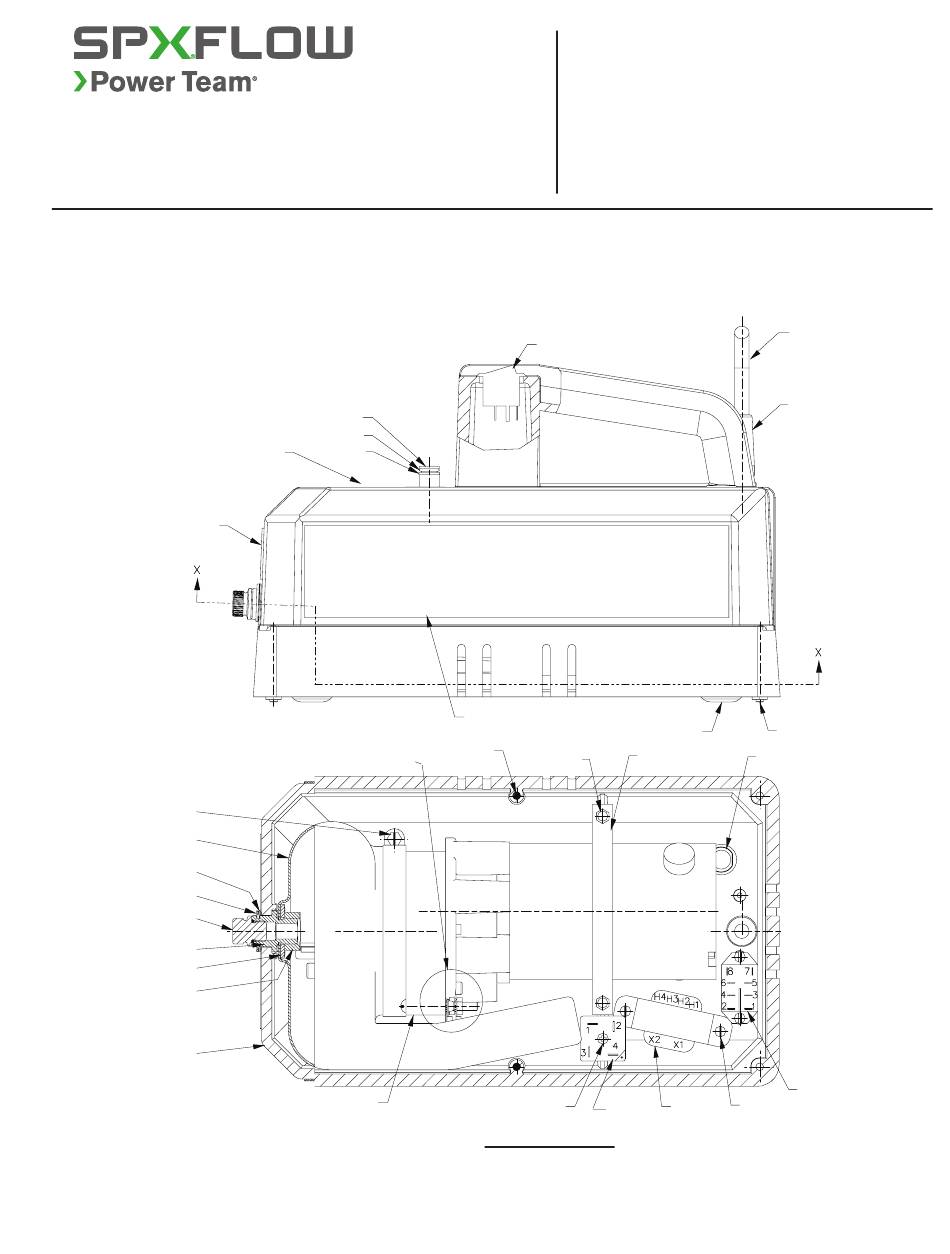

MODEL B (Model C for PE102A-GRC)
ELECTRIC HYDRAULIC PUMP
Max. Capacity: 10,000 PSI
4
3
2
See Detail V
See Detail V
Basic Pump Assembly
Basic Pump Assembly
See sheet 6
See sheet 6
Parts List for:
5
11
12
14, 15
13
21
20
SECTION X-X
1
Form No. 101703
PE10 Series
PR10 Series
6
7
8, 9
10
16
17
18
19
Form No. 101703
Rev 11
Date: June 2019

Advertisement

loading
Need help?

Need help?

Do you have a question about the PE10 Series and is the answer not in the manual?

Questions and answers

Related Manuals for SPXFLOW PE10 Series

Summary of Contents for SPXFLOW PE10 Series

  • Page 1 Form No. 101703 Parts List for: SPX Hydraulic Technologies Tech Services: (800) 477-8326 PE10 Series 5885 11th Street Fax: (800) 765-8326 PR10 Series Rockford, IL 61109-3699 USA Order Entry: (800) 541-1418 Fax: (800) 288-7031 powerteam.com MODEL B (Model C for PE102A-GRC) ELECTRIC HYDRAULIC PUMP Max.
  • Page 2 Parts List PART ITEM DESCRIPTION 251072 Warning & Fill Instructions Decal *11863 Backup Washer (1/2 X 3/8 X 1/16) O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104, *10268 PE104-220, PR102, & PR104) O-ring (1/2 X 3/8 X 1/16; For PE102, PE102-220, PE104, †...
  • Page 3 Parts List continued ITEM PART NO. DESCRIPTION 13324 Washer (For 5/8 Bolt) 350583 Filler Adapter *13755 O-ring (.558 X .414 X .072) † 250135 O-ring (.558 X .414 X .072) 251280 O-ring Boss Plug 251043 Retaining Ring 201373 Retainer Washer 420643 Bladder †...
  • Page 4 Parts List continued OTHER OPTIONS AND ACCESSORIES PART NO. DESCRIPTION Manifold (For PE102A, PE102A-220, PR102A, PE102A-EMP, & 9562 PR102A-DEUT; See Form No. 101344) 2 Position, 2-Way Valve (For PE102, PE102-220, PE102A-EMP, 9561 PR102A-DEUT, & PR102; See Form No. 101327) 3 Position, 4-Way Valve (For PE104, PE104-220, & PR104; See Form 9563 No.
  • Page 5 Parts List DETAIL FOR 4-WAY VALVE OUTLET CHECK (FOR PE104, PE104-110-3000, PE104-110-5000, PE104-220, &PR104) ITEM PART NO. DESCRIPTION 209795 Outlet Ball Stop *10445 Compression Spring (5/32 O.D. X 3/4 Lg.) *12223 Ball (3/16 Dia.) Part numbers marked with an asterisk (*) are contained in Repair Kit No. 3000008. DETAIL V Power Cord Ground (Must be isolated between...

  • Page 6: Basic Pump Assembly

    Parts List BASIC PUMP ASSEMBLY ITEM PART NO. DESCRIPTION 10002 Screw (1/4-20 UNC X 3/8 Lg.; Torque to 80/100 in. lbs.) 14423 Screw (#10-24 X 2” Lg.; Torque to 60/80 in. lbs.) 14426 Screw (#10-24 UNC X 1” Lg.; Torque to 60/80 in. lbs.) Form No.
  • Page 7 Parts List SECTION X-X .030 .090 Detail Detail Form No. 101703 © 2019 SPX FLOW, Inc. Rev 11 Date: June 2019...
  • Page 8 Parts List ITEM PART NO. DESCRIPTION *14484 Compression Spring (3/8 O.D. X 1” Lg.) Set Screw (#10-24 UNC X 1” Lg. Set unloading valve to *251067 400/500 PSI) *207405 Locknut (10-24 UNC) *251065 Replaceable Seat *10268 O-ring (1/2 X 3/8 X 1/16) †...
  • Page 9 Parts List DETAIL T DETAIL T ITEM PART NO. DESCRIPTION 10796 Dowel Pin *214992 Backup Washer (15/64 X 1/8 X 3/64) *17797 O-ring (1/4 X 1/8 X 3/64) † 17713 O-ring (1/4 X 1/8 X 3/64) Part numbers marked with an asterisk (*) are contained in Repair Kit No. 300651. Part numbers marked with a dagger (†) are contained in EPR Seal Kit No.
  • Page 10 Parts List SECTION Y-Y Form No. 101703 © 2019 SPX FLOW, Inc. Rev 11 Date: June 2019...
  • Page 11 Parts List ITEM PART NO. DESCRIPTION *16724 Compression Spring (3/8 O.D. X 1-1/4 Lg.) Set Screw (#10-24 UNC X 1” Lg.; Set High Pressure Relief Valve to 10,100/10,700 PSI [2,800/3,200 PSI for *251067 PE102-28-DC & PE102-28-220DC], [3,100/3,500 PSI for PE104-110-3000], [5,100/5,500 PSI for PE104-110-5000]) *207405 Locknut (10-24 UNC) *251064...
  • Page 12 Parts List SECTION Z-Z Clean mating surfaces of pump body and Clean mating surfaces of pump body and end plate (Items #12 & #13). Apply a thin, end plate (Items #12 & #13). Apply a thin, narrow, continuous band of Loctite gasket narrow, continuous band of Loctite gasket eliminator #518 or equivalent, outside of eliminator #518 or equivalent, outside of...
  • Page 13 Parts List ITEM PART NO. DESCRIPTION *12223 Ball (3/16 Dia.) *251063 O-ring (1-7/16 X 1-5/16 X 1/16) † 251289 O-ring (1-7/16 X 1-5/16 X 1/16) 420615 Gerotor Set 251061 Dowel Pin 251129 Needle Bearing 350606 Eccentric 15695 Ball Bearing 250491 Screw (10-24 UNC X 1-1/4 Lg.;...
  • Page 14 Parts List SECTION S-S ITEM PART NO. DESCRIPTION *10265 O-ring (5/16 X 3/16 X 1/16) † 17714 O-ring (5/16 X 3/16 X 1/16) 420617 High Pressure Piston Body *12223 Ball (3/16 Dia.) *10445 Compression Spring (5/32 O.D. X 3/4 Lg.) 251040 Dowel Pin 12102...

  • Page 15: Hydraulic Schematic

    Parts List HYDRAULIC SCHEMATIC MAX. PRESSURE MAX. PRESSURE SAFETY RELIEF SAFETY RELIEF VALVE VALVE 10,400 P.S.I. 10,400 P.S.I. S.C. RELIEF OPTIONAL OPTIONAL S.C. RELIEF VALVE EXT. PRESS. REGULATOR EXT. PRESS. REGULATOR VALVE 150 P.S.I. 9,800 P.S.I. 9,800 P.S.I. 150 P.S.I. AUTO.
