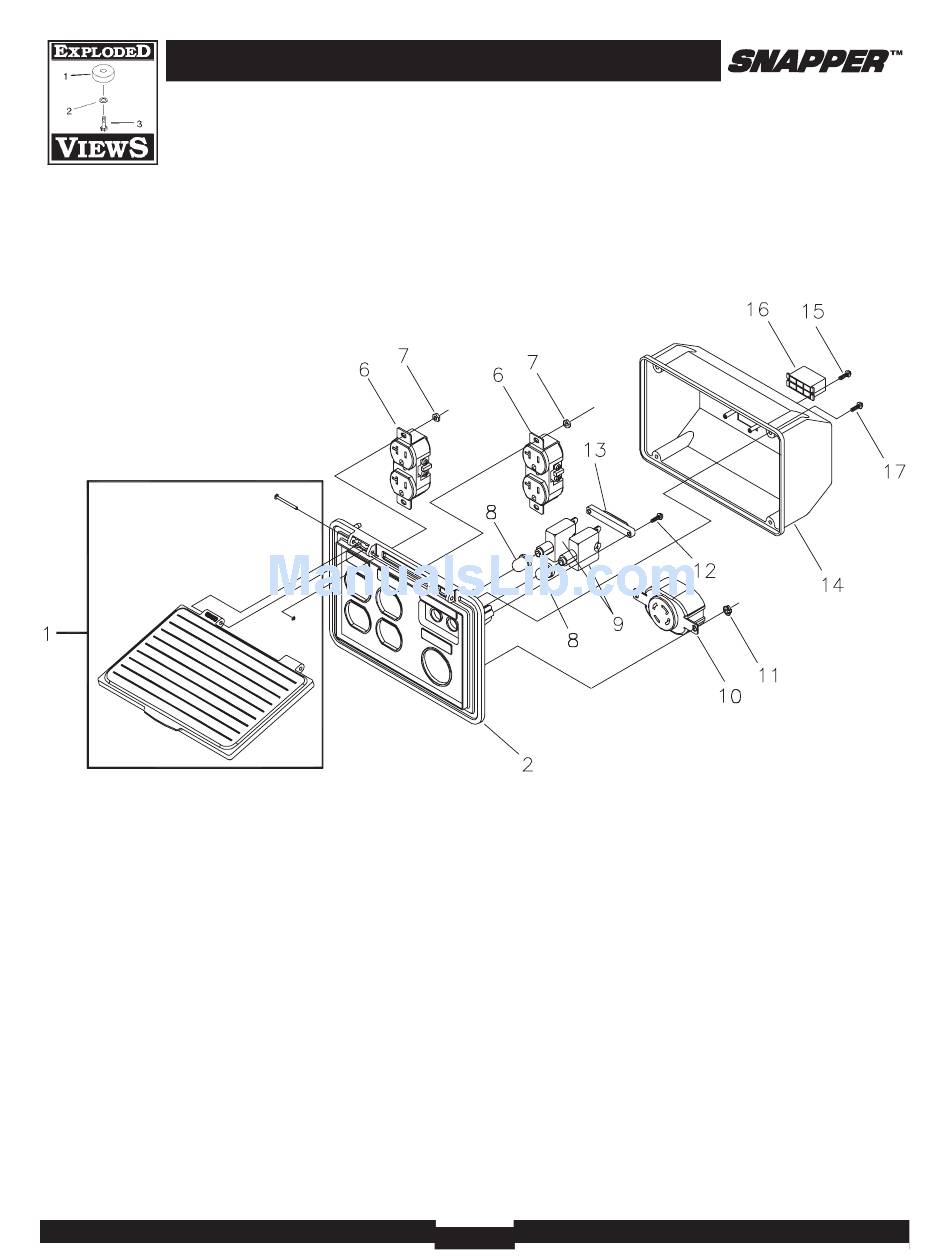

EXPLODED VIEW AND PARTS LIST - CONTROL PANEL

Snapper Model 030215 Portable Generator
Item Part # Description
1 195112GS KIT, Control Panel Lid
2 188889GS CONTROL PANEL, Compact
6 68759GS OUTLET, 120V, 20A, Duplex
7 * NUT, Palnut, Pushnut, 5/32
8 84198GS CAP, Breaker, Circuit
9 75207GS BREAKER, Circuit
10 43437GS OUTLET, 120/240V Locking, 30A
11 * NUT, Palnut, Pushnut, 3/16
12 * SCREW, Phillips, Head 3.5 x 18
13 93857GS BAR, Retaining
14 188890GS COVER, Back, Control Panel
15 * SCREW, Self Tapping, STC 3 x 18
16 22694GS HOUSING, Receptacle
17 * SCREW, Phillips, 3.5 x 14
* - Items without part numbers are common fasteners and
are available at your local hardware store.
