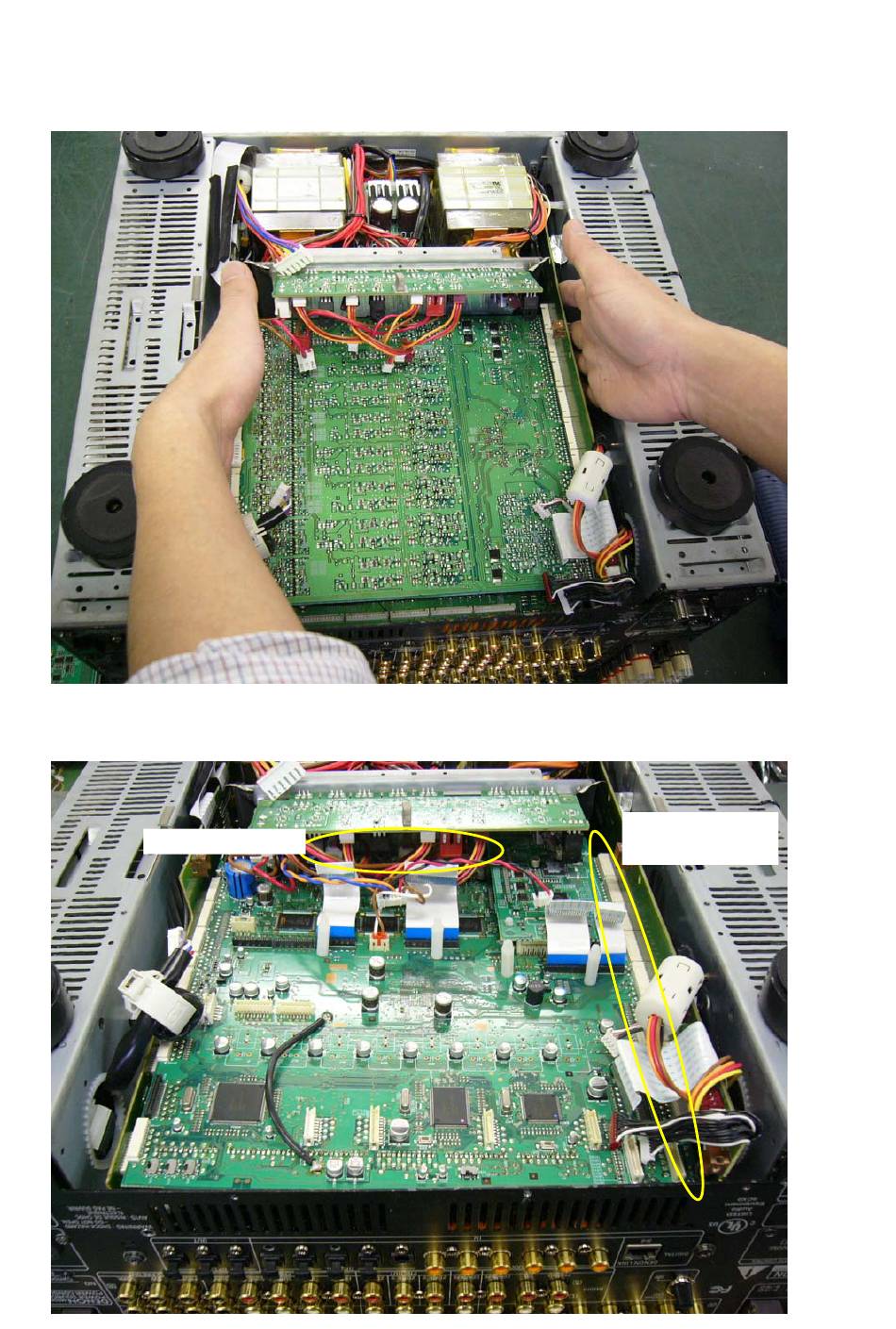

Instruction for re-assemble DIGITAL UNIT ASSY and DAC UNIT ASSY
(11) Install the DAC unit assy and insert each side board to board connector.
(Insert the hand in the space on both sides, and push the PWB.)
(11) Install the Digital unit assy and insert the cables.
(12) Insert right side B to B connector.
Insert the Cables
Insert the B to B
Connectors.
