Contrel EMM-4h Instruction Manual

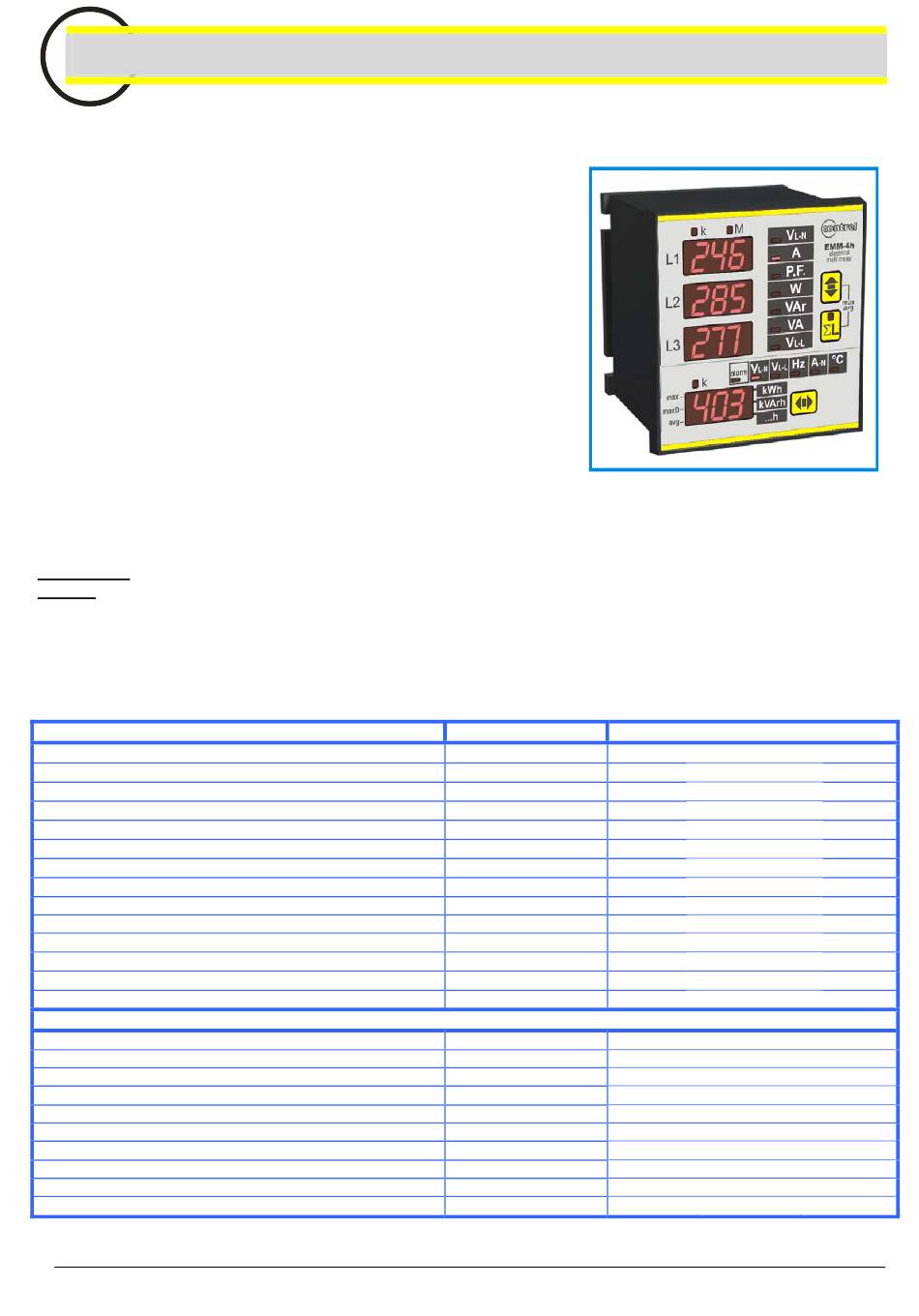

INSTRUCTION MANUAL
IM442-U v0.7

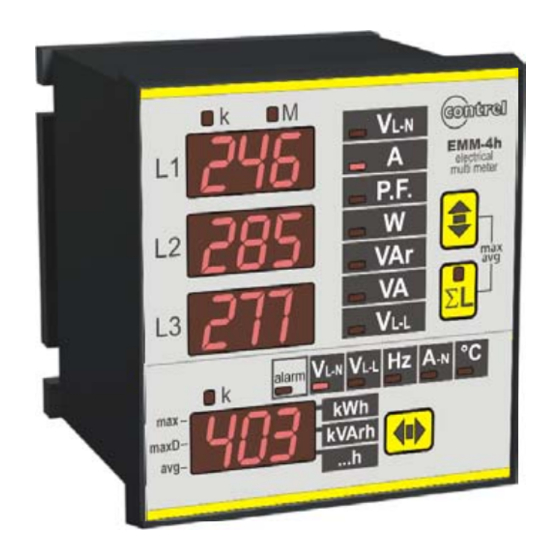

EMM-4h
ELECTRICAL MULTIFUNCTION METER
GENERALITY
These digital multimeters allow to monitor all the electrical parameters
present on a distribution line. The local display of 30 electrical parameters
is carried out by 4 display with red LED guaranteeing a good and
contemporary reading of more measures. A simple front panel completes
the intuitive selection of several electrical parameters, with a great quantity
of information. These instruments, over of the instantaneous measures,
display the maximum peak of the main parameters (maximum peak and
maximum demand). The presence of the serial port communication
EIA485 (option) allows the connection in network of more instruments to
realize centralized measure networks.
These multimeters replace in a unique device, all the functions of
voltmeters, ammeters,
varmeters, frequency meters permitting a great economic saving, a
reduction of dimension and the wiring energy and a simplification in the
purchase and management of the instruments because this is a model
usable at all of need of local measure in the electrical panel, machine, etc.
AVAILABLE MODELS
It's available only a model for flush mounting for panel.
-EMM-4h basic version in execution for flush mounting DIN 96x96mm
ACCESSORIES AND OPTIONS
accessories: frontal protection transparent cover
options: analog output (alternative to digital input option)
digital output
serial output RS485
insulated current inputs
neutral current input
digital input (alternative to analog Output option)
MEASURED PARAMETERS
parameters
phase and three phase voltages
phase to phase and three phase system voltages
phase and three phase currents
neutral current
phase and three phase power factors
phase and three phase active powers
phase and three phase system reactive powers
phase and three-phase system apparent powers
frequency
temperature
three phase system active energy
three phase system reactive energy
three phase system apparent energy
hour counter
average and peak values (maximums):
maximum phase voltages
maximum phase currents
maximum neutral current
maximum three-phase powers
maximum average phase currents (maximum demand)
maximum average neutral current (maximum demand)
maximum average three-phase powers (maximum demand)
average phase currents
average neutral current
average three-phase powers
EMM-4h
energy meters, cosphimeters,
instruction manual
wattmeters,
unit of measurement
[V-kV] V
[V-kV] V
[A-kA] A
[A-kA] A
n
PF
[W-kW-MW] W
[VAr-kVAr-MVAr] VAr
[VA-kVA-MVA] VA
[Hz] Hz
[°C] T
Σ kWh
[kWh]
Σ kVArh
[kVArh]
[kVAh] Σ kVAh
[hr] h
[V-kV] V
[A-kA] A
[A-kA] A
n max
Σ W
[W-VAr-VA (k-M)]
[A-kA] I
L1 max (avg)
[A-kA] A
n max (avg)
Σ W
[W-VAr-VA (k-M)]
[A-kA] A
[A-kA] A
n avg
[W-VAr-VA (k-M)] Σ W
IM442-U v0.7
initial identification
V V
L1-N L2-N L3-N
V V
L1-L2 L2-L3 L3-L1
A A
L1 L2 L3
PF PF
L1 L2 L3
W W
L1 L2 L3
VAr VAr
L1 L2 L3
VA VA
L1 L2 L3
L1
V
L1-N max L2-N max
A
L1 max L2 max
Σ VAr
max max
I
L2 max (avg)
Σ VAr
max (avg) max (avg)
A
L1 avg L2 avg
Σ VAr
avg avg
pag. 1
Σ V
L-N
Σ V
L-L
Σ A
Σ PF
Σ W
Σ VAr
Σ VA
V
L3-N max
A
L3 max
Σ VA
max
I
L3 max (avg)
Σ VA
max (avg)
A
L3 avg
Σ VA
avg
