Snapper Z-VAC 7600004 User Manual page 6

3
unit assembly
REMOVE BOLTS,
THEN REMOVE
COVER
CHECK TO SEE
THAT BELT IS
ON PULLEYS
DRILL
HOLES &
INSTALL
BOLTS
INSTALL
BOLTS

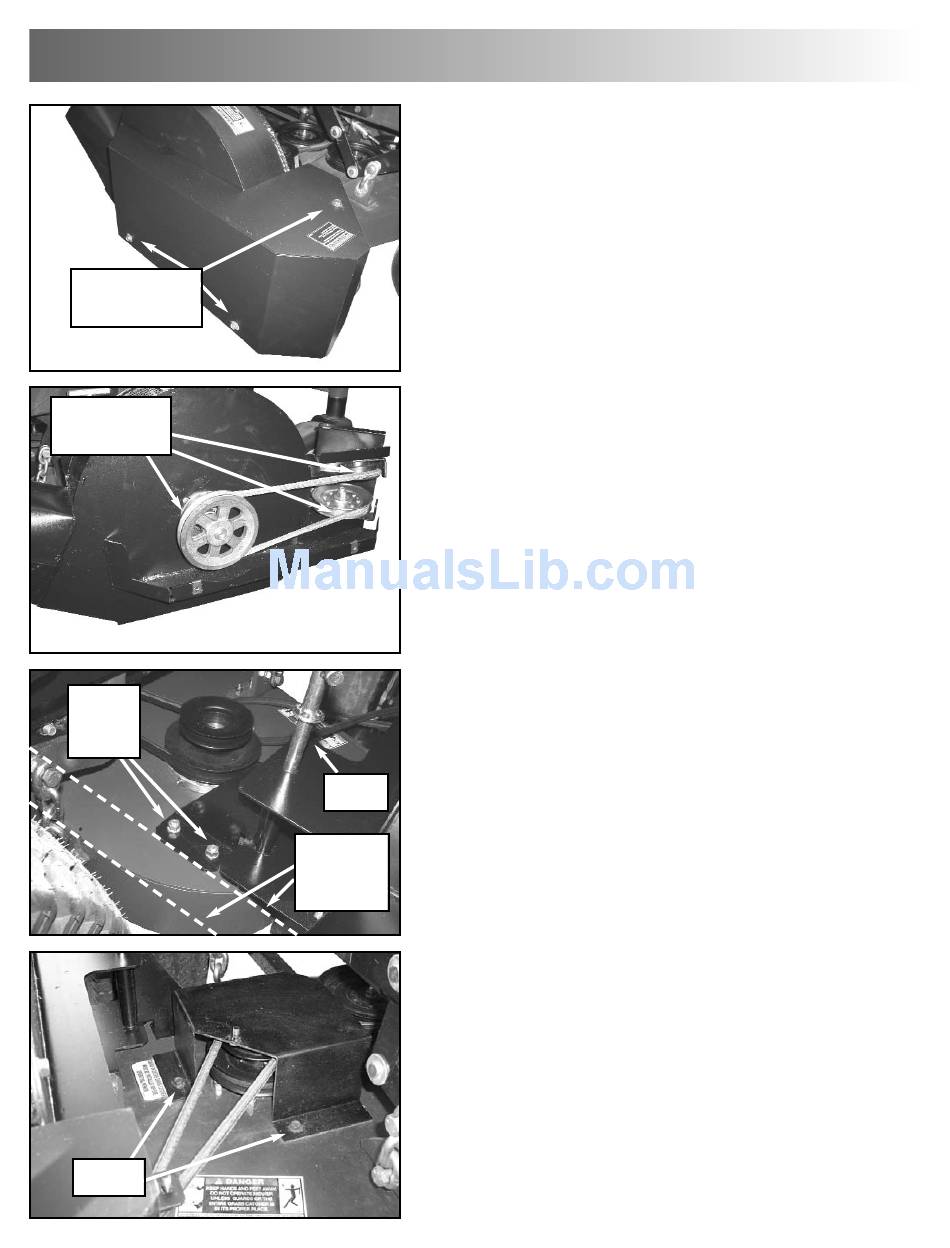

STEP 6a: Remove bolts securing impeller pulley
cover to blower, and remove cover.
STEP 6b: Check to see that blower belt is routed
around impeller pulley and idler pulleys after belt is
installed onto deck pulley. Replace cover, tighten-
ing bolts securely. IMPORTANT: Never operate
any mower without a pulley guard securely in
place.
STEP 7: Slip tube of locking pin bracket into blow-
er mount, and secure with T-handle pin, making
sure pin goes through both upper and lower holes
in blower mount. Then align base of pin bracket
parallel with rear of deck, and, using bracket as a
template, drill two 7/16" holes through deck. Insert
INSERT
two 3/8-16 x 1" hex bolts up through deck and
PIN
bracket, securing with hex flange lock nuts.
Tighten securely. IMPORTANT: Use gloves when
ALIGN
working under deck.
BRACKET
injury.
WITH REAR
OF DECK
STEP 8: Lay supplied pulley guard onto deck,
aligning holes in guard with holes in deck. Install
with bolts securing original guard, tightening
securely.
NOTE: 48" deck shown; 52" and 61" deck guard
configurations may differ.
6
Sharp blades can cause
