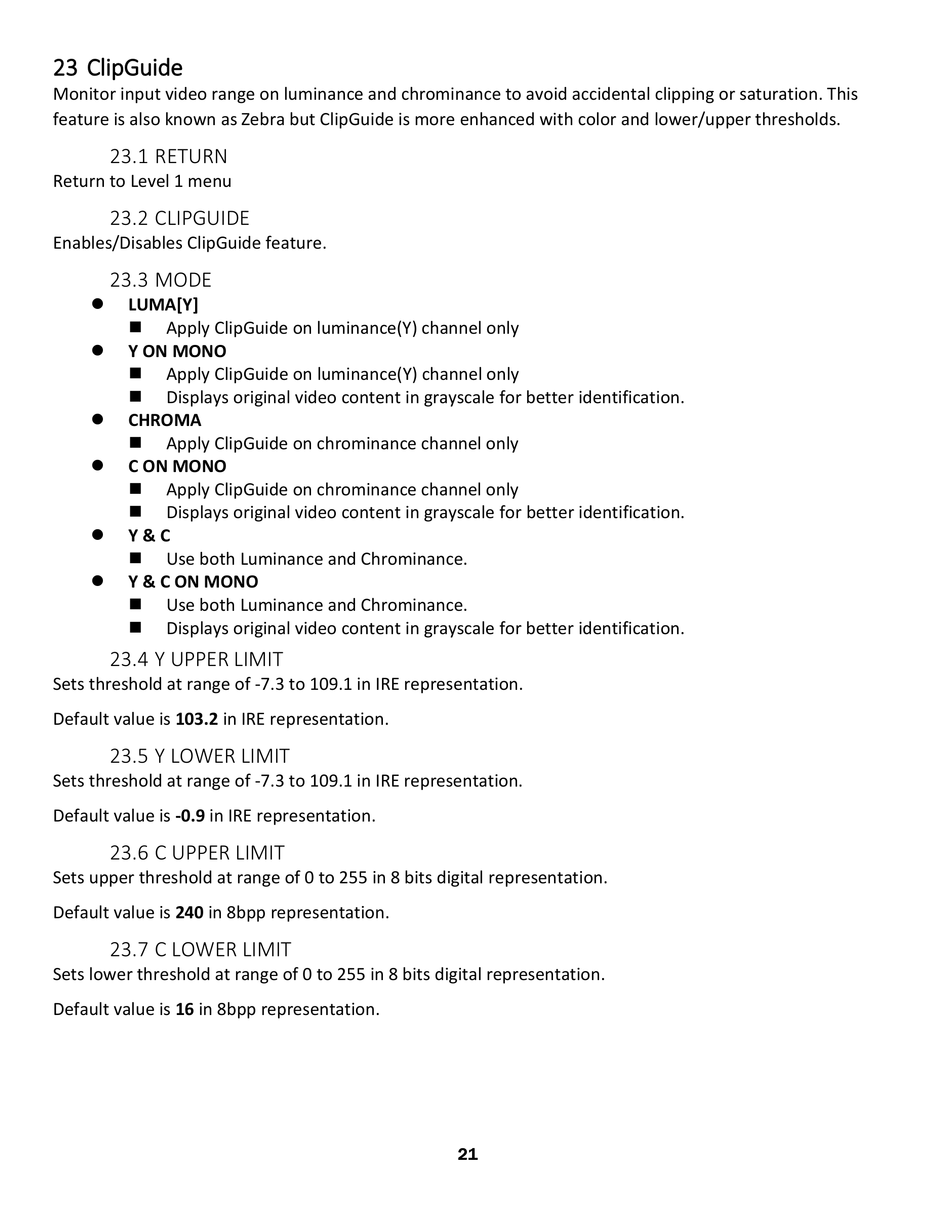

23 ClipGuide

Monitor input video range on luminance and chrominance to avoid accidental clipping or saturation. This
feature is also known as Zebra but ClipGuide is more enhanced with color and lower/upper thresholds.

23.1 RETURN

Return to Level 1 menu
23.2 CLIPGUIDE
Enables/Disables ClipGuide feature.

23.3 MODE

⚫
LUMA[Y]
◼
Apply ClipGuide on luminance(Y) channel only
⚫
Y ON MONO
◼
Apply ClipGuide on luminance(Y) channel only
◼
Displays original video content in grayscale for better identification.
⚫
CHROMA
◼
Apply ClipGuide on chrominance channel only
⚫
C ON MONO
◼
Apply ClipGuide on chrominance channel only
◼
Displays original video content in grayscale for better identification.
⚫
Y & C
◼
Use both Luminance and Chrominance.
⚫
Y & C ON MONO
◼
Use both Luminance and Chrominance.
◼
Displays original video content in grayscale for better identification.

23.4 Y UPPER LIMIT

Sets threshold at range of -7.3 to 109.1 in IRE representation.
Default value is 103.2 in IRE representation.

23.5 Y LOWER LIMIT

Sets threshold at range of -7.3 to 109.1 in IRE representation.
Default value is -0.9 in IRE representation.

23.6 C UPPER LIMIT

Sets upper threshold at range of 0 to 255 in 8 bits digital representation.
Default value is 240 in 8bpp representation.

23.7 C LOWER LIMIT

Sets lower threshold at range of 0 to 255 in 8 bits digital representation.
Default value is 16 in 8bpp representation.
