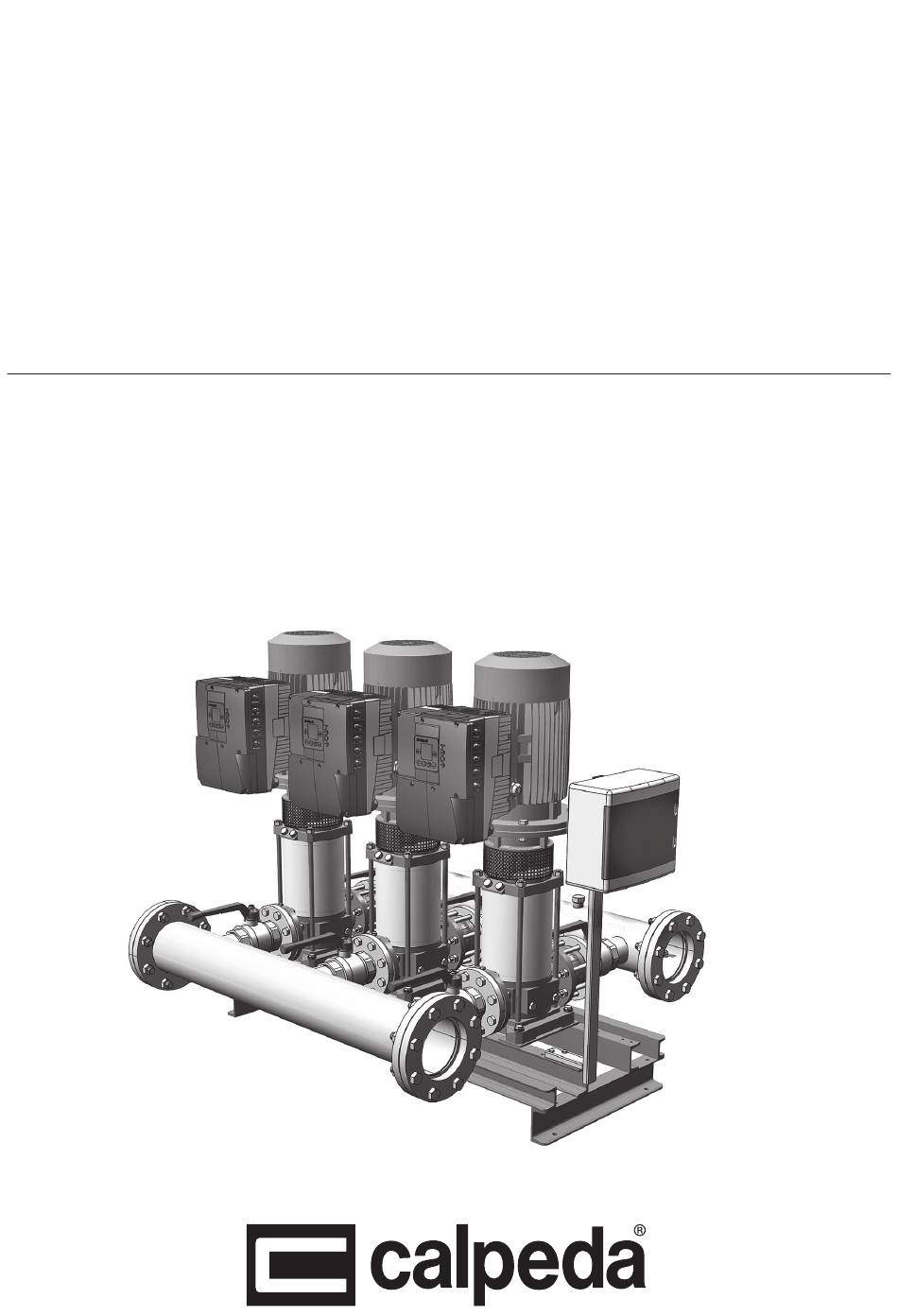

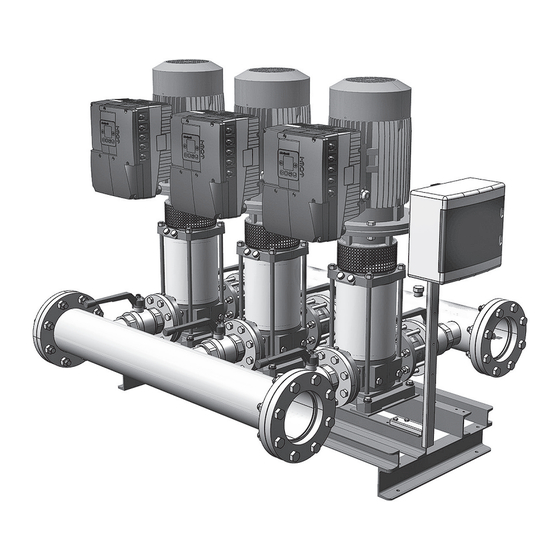

- Page 1 Cold Water Booster Sets Easymat & IMAT OPERATING INSTRUCTIONS Page English...
-
Page 2: Table Of Contents
After carefully reading of the contacting Calpeda Ltd or their agent, specifying instructions, is responsible for maintenance the type of product data shown on the label of... -
Page 3: Technical Description
30 months from the date of dispatch from our inhalation of fumes or gases given off by the liquid. production centre, whichever is the shorter. Calpeda cannot be held responsible for failures The warranty covers the replacement or or injuries related to the inobservance of the repair of the faulty parts and labour to do so. -
Page 4: Safety
Use only original spare the requirements in the paragraph 3.2. It's parts provided from Calpeda or from an absolutely forbidden to install the machine in an authorized distributor. environment with potentially explosive atmosphere. - Page 5 6.4. Pipes Adequate drainage should be provided with Ensure the insides of pipes are clean and protection from water damage in the immediate vicinity should a leak or spillage occur. unobstructed before connection. Adequate lighting should be provided for service, ATTENTION: The pipes connected to the booster inspection and commissioning.
-
Page 6: Startup And Operation
Most of the basic functions are pre-programmed at the time of production but the most basic settings must be checked. If modifications on the settings are required refer to the Easymat or I-Mat manual To change the direction of rotation of the motor push in this pack... -
Page 7: Maintenance
Calpeda. For further technical information regarding the use or the maintenance of the device, contact Calpeda. 8.1. Routine maintenance and inspection Before every maintenance... -
Page 8: Electrical Diagram
10 ELECTRICAL DIAGRAM Panel Type MCB (1,2) QTE2 -10M QTE2 -16M QTE2 -20M 8 / 12 BS...IMAT Rev2... - Page 9 ELECTRICAL DIAGRAM Panel Type MCB (1,2,3) QTE3 -10M QTE3 -16M QTE3 -20M BS...IMAT Rev2 9 / 12...
- Page 10 ELECTRICAL DIAGRAM Panel Type MCB (1,2) QTI2-10T QTI2-16T QTI2-32T Common Common Common Common 10 / 12 BS...IMAT Rev2...
- Page 11 ELECTRICAL DIAGRAM Panel Type MCB (1,2,3) QTI3-10T QTI3-16T QTI3-32T Common Common Common Common Common Common BS...IMAT Rev2 11 / 12...
-
Page 12: Declaration Of Conformity
DECLARATION OF CONFORMITY We CALPEDA Ltd declare that our booster sets with type and serial number as shown below, are constructed in accordance with Directives 2006/42/EC and 2014/30/EU, and assume full responsibility for conformity with the standards laid down therein.
