- Page 1 GSM0508IG001 Expedite L10-G Integration Guide Version: 1.00 Wednesday, May 07, 2014...
- Page 2 New Materials. The user of such New Materials assumes all risk (known or unknown) of such use. Novatel Wireless reserves all rights in such New Materials. The user shall have only a revocable and limited license to use such New Materials in connection with the products for which they are intended.
- Page 3 Copyright © 2014 Novatel Wireless. All rights reserved. Complying with all applicable copyright laws is the responsibility of the user. Without limiting the rights under copyright, no part of this document may be reproduced, stored in or introduced into a retrieval system, or transmitted in any form or by any means (electronic, mechanical, photocopying, recording or otherwise), or for any purpose, without the express written permission of Novatel Wireless.
- Page 4 Novatel Wireless has agreed to provide this warranty to such end users. If you purchased the product from an authorized distributor, please check whether this warranty from Novatel Wireless or a separate warranty from the distributor applies to your purchase.
- Page 5 RMA number from Novatel Wireless, as required above, until after the end of the warranty period, (ii) caused by any accident, misuse, abuse, improper installation, handling or...
- Page 6 NOVATEL WIRELESS' SOLE RESPONSIBILITY AND PURCHASER'S SOLE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE FOR NOVATEL WIRELESS TO REPAIR OR REPLACE THE PRODUCT (OR IF REPAIR OR REPLACEMENT IS NOT POSSIBLE, PROVIDE A CREDIT OR REFUND OF THE PURCHASE PRICE) AS PROVIDED ABOVE. NOVATEL WIRELESS...
- Page 7 / uncontrolled exposure as defined in Section 1.1310 of the FCC Rules and Regulations. The Expedite L10-G module is designed for use in a variety of host units, enabling the host platform to perform wireless data communications. However, there are certain criteria relative to integrating the modem into a host platform such as a PC, laptop, handheld, monitor and control unit, etc.
- Page 8 A label containing the FCC and Industry Canada IDs must be permanently affixed to the exterior of the host device into which the Expedite L10-G module is installed. The label may also be under a panel or battery pack if it is readily accessible and cannot be separated from the host device itself.
- Page 9 FCC NOTICE TO USERS Novatel Wireless has not approved any changes or modifications to this device by the user. Any changes or modifications could void the users authority to operate the device. See 47 CFR Sec. 15.21. The device complies with part 15 of the FCC rules. Operation is subject to the...
- Page 10 In order to use the Expedite L10-G module without any additional FCC certification the installation must meet the following conditions: The system antenna(s) connected to the Expedite L10-G module must be installed to provide at least 20 cm separation from the human body during normal operation.
- Page 11 Compliance with these directives implies conformity to harmonized European standards (European Norms) that are listed in the EU Declaration of Conformity issued by Novatel Wireless Inc. for this product or product family. This compliance is indicated by one of the following conformity markings placed on the product.
- Page 12 Do not attempt to disassemble the product: Doing so will void the warranty. This product does not contain consumer-serviceable components. The Enabler Expedite L10-G module may not be used in an environment where radio frequency equipment is prohibited or restricted in its use. This includes aircraft, airports, hospitals, and other sensitive electronic areas.
- Page 13 PTCRB, R&TTE, IMEI and other applicable codes that are in effect at the time of publication. Novatel Wireless disclaims all responsibility for any act or omissions, or for breach of law, code or regulation, including local or state codes, performed by a third party.
-
Page 14: Table Of Contents
SMS Features SIM-Based Features Customized Features Multiple Configurations Customer Tool Design Package Power Environmental Packet Data Transfer Regulatory Reference Documents Typical Usage Contacting Novatel Wireless 2 Module Power Operating Power Typical Input Current 3 Interfaces I/O Connector Pin Assignments xiii novatelwireless.com... - Page 15 Analog Audio Interface Speaker Microphone Microphone Type Support Headset Specific Absorption Rate (SAR) Guidelines SAR Compliance 3 Tune Up Procedures Tune Up Procedure novatelwireless.com...
-
Page 16: Introduction

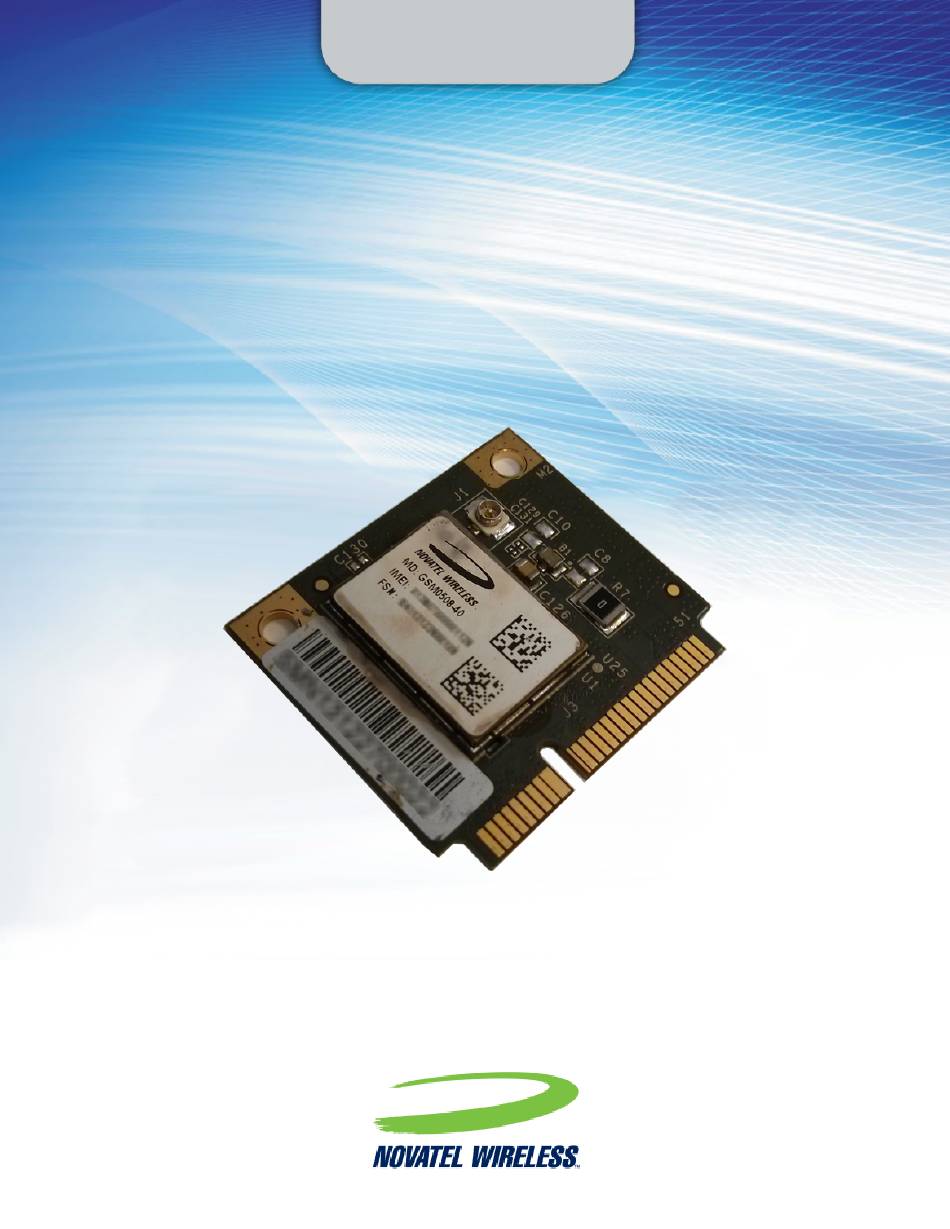

Introduction Technical Specifications Typical Usage Contacting Novatel Wireless novatelwireless.com... - Page 17 (GSM) international communications standard to provide two-way wireless capabilities. The Expedite L10-G module is a fully approved GSM device, enabling application-specific, two- way communication and control. The small size of the Expedite L10-G module allows it to integrate easily into the application and packaging. Figure 1-1 Expedite L10-G Module...
-
Page 18: Technical Specifications
Technical Specifications General Name: Expedite L10-G Model: GSM0508-40 Radio Technology Quad-band EDGE/GSM/GPRS: 850/900/1800/1900 MHz Class: Supports class 8, 10 and 12 (The default GPRS class is 8) Modulation Coding Schemes: CS-1 to CS-4 Mode of Operation: Class B (attaches to both GSM and GPRS at the same time) -
Page 19: Customized Features
Customized Features Notification for incoming call and SMS: Provide one GPIO pin for notification Host wake-up modem event: Provide one interrupt pin to wake-up modem Modem AT command ready event: Provide one GPIO pin to notify host that AT command is ready CMUX: Supports CMUX feature Boot up ready message:... -
Page 20: Design Package
Design Package 1. BROM_Lite_Introduction-v0.2-20130709.pdf Upgrade agent introduction: 2. System Information to build the BROM lite tool-v0.1-2013.07.09.pdf BROM_Lite_vs_Flash_Tool-V0.1-2013.06.10.pdf Compare between BROM Lite and Flash Tool: smmux-alpha-2.tar.gz CMUX sample code (Linux): 1. CMUX_introduction-v0.1-2013.05.31.pdf CMUX introduction: 2. pppd.7z UART_Flow_Control-v0.1-2013.05.31.pdf UART flow control introduction: Expedite L10-G_AT_Command_Set_v0.8.6_20131008.doc AT Command set: Expedite L10-G_Audio_Parameter_Adjustment-V0.3-2013.08.22.pdf... -
Page 21: Reference Documents
Reference Documents CNN0401xAT001 - HS 3002 AT Command Reference CNN0401xTG001 - HS 3002 Transition Guide ENF0000SD001 - HDK Guide CNN0401AN001 - Using Digital Audio on the HS 3002 novatelwireless.com... -
Page 22: Typical Usage
Typical Usage The following applications can use the Expedite L10-G module for transmitting/receiving data/voice: Automated Meter Reading (AMR) Point of Sale Applications (POS) E-mail and Internet access Automated Vehicle Location (AVL) Machine to Machine communication (M2M) Telematics Telemetry Wireless Security... -
Page 23: Module Power
Module Power Operating Power novatelwireless.com... -
Page 24: Operating Power
Operating Power The Expedite L10-G module requires an in/out voltage of 3.3V to 4.35V. The supply ripple must be less than 200 mV across all frequencies. Typical Input Current Typical Results @ 3.8 V 25 deg C, with 1 μF at connector input on V and RF terminated into a 50Ω... -
Page 25: Interfaces
Interfaces I/O Connector Pin Assignments Analog audio interface Specific Absorption Rate (SAR) Guidelines novatelwireless.com... -
Page 26: I/O Connector Pin Assignments
Figure 3-1 Pin 1 Reference, 68-Pin I/O Connector I/O Connector Pin Assignments The following table shows the pin assignments for the input/output connector. Function Description Notes Ground DAIPCMIN PCM data in 2.8V Reserve Pin Reserved for debug DAISYNC PCM sync 2.8V Reserve Pin Reserved for debug... - Page 27 Function Description Notes PWR_KEY Power Key to enable MT6260 1.8V~2.8V internal PMU GPIO/INT1 General Purpose I/O,For cus- 2.8V tomize./INT1 ACCDET Headset Microphone detect 2.8V AP_READY_INT INTFor Host/AP to wake up Expedite 1.8V L10-G module. U2RTS UART2 Request to send 2.8V NOTIFY_AP Notification for incoming call and 1.8V...
- Page 28 Function Description Notes SDA28/GPIO I2C Serial clock/General Purpose I/O, 2.8V I/O,For customize. SDA28/GPIO I2C Serial data/General Purpose I/O, 2.8V I/O,For customize. MIC1_IN- Microphone input (Headset) 2.8V MIC1_IN+ Microphone input (Headset) 2.8V MIC0_IN- Microphone amplifier negative input 2.8V MIC0_IN+ Microphone amplifier positive input 2.8V MICBIAS0 Microphone bias...
-
Page 29: Analog Audio Interface
Idle channel noise of transmit path dBm0 L-R channel cross talk dBm0 Vout Full Scale output voltage SPK_OUT Vrms Expedite L10-G integrate class-AB audio AMP, the following table is the maximum output power: Test Condition Maximum output SPK_OUTN 0.87W power 3.3V, 8 ohm THD+N=1%... -
Page 30: Microphone
Microphone Pin No. Pin name Description MIC1_IN- Microphone input (Headset) MIC1_IN+ Microphone input (Headset) MIC0_IN Microphone amplifier negative input MIC0_IN+ Microphone amplifier positive input MICBIAS0 Microphone bias MicBias output Mic Bias Output Typ. Unit MICBIAS0 MICBIAS0 current draw Microphone functional specification Symbol Parameter Min. -
Page 31: Headset
MEMS Microphone reference circuit Headset Pin No. Pin name Description ACCDET Headset Microphone Detect EAR_EINT Headset Detect (Internal PU, no need external PU circuit) MP3_OUT_L headset amplifier Left MP3_OUT_R headset amplifier Right novatelwireless.com... - Page 32 Pin No. Pin name Description MIC1_IN- Microphone input (Headset) MIC1_IN+ Microphone input (Headset) Earphone functional specification Symbol Parameter Min. Typ. Max. Unit Clock frequency Sample rate 44.1 Current consumption PSNR Peak signal to noise ratio Dynamic range VOUT Full Scale output voltage MP3_OUT 0.78 Vrms Total harmonic distortion 10mW at 64Ω...
-
Page 33: Specific Absorption Rate (Sar) Guidelines
Specific Absorption Rate (SAR) Guidelines Portable RF exposure evaluation must be completed on host devices that provide ≤ 20.0 cm of separation distance between the transmitter antenna and the end user. Portable Device Definition The FCC defines a Portable Device as a device having a transmitting antenna located at a distance ≤... -
Page 34: Tune Up Procedures
Tune Up Procedures Tune Up Procedure novatelwireless.com... -
Page 35: Tune Up Procedure
Tune Up Procedure During manufacturing each device will be individually calibrated. Measurement is performed in a fully calibrated environment using an CMW500 base station simulator. The measurement procedure is outlined below: Measurement Procedure: 1. Set the device to operational voltage and on a predefined channel in a special test mode.
