Contents Getting Started ............1 Overview. -
Page 4: Getting Started
Getting Started Overview Components Caring for Your Device... -
Page 5: Overview
Overview Congratulations on purchasing the Ovation MC551 4G LTE USB modem. Before installing the MobiLink software and drivers, review this manual, which outlines the features of the MC551 modem hardware and is backward compatible to 3G CDMA networks, ensuring reliable coverage when you need it most. -
Page 6: Components

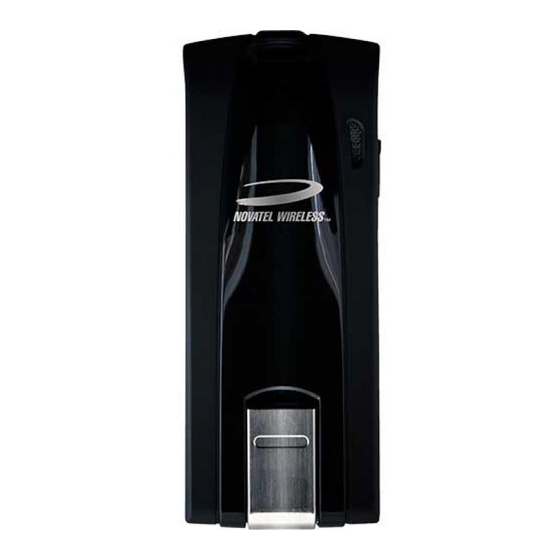

Components ➊ LED indicator: This indicates the device is connected to 3G or 4G Mobile Broadband networks; it also indicates when the device has an error or has no service available. (See States on page 4.) ➋ USB connector: This connects to your computer through a type A USB port. The hinge design makes it easier to connect to computers. -
Page 7: Led States
LED States The LED indicates the modem status. LED Color Status Description No Light The device is powered off or otherwise is not getting power. Green Solid The modem is powered on but is not transmitting or receiving data. Slow The modem is searching for a 3G data network. -
Page 8: Caring For Your Device
Caring for Your Device Like any electronic device, the modem must be handled with care to ensure reliable operation. Novatel Wireless recommends the following guidelines: Protect the device from liquids, dust, and excessive temperatures. • Do not apply adhesive labels to the device; they might cause the device to overheat or alter •... -
Page 9: Using The Mc551 Modem
Using the MC551 Modem Using the Device for the First Time Using the Device After Setup is Complete Accessories Accessing the User Guides... -
Page 10: Using The Device For The First Time
Using the Device for the First Time IMPORTANT Do not connect the device to a USB hub, as it might not provide sufficient power. See the Quick Reference Guide included in the box and the MobiLink Software User Guide for additional information about installing the MobiLink software. -
Page 11: Install The 4G Sim Card
Install the 4G SIM Card To open the case and install your new activated 4G SIM Card, follow these steps. Note A Subscriber Identity Module (SIM Card) is a smartcard that houses personal information, such as your mobile phone number, calling plan, account information, and content, such as contacts, text messages, and call history. -
Page 12: Install The Software
Install the Software Getting started with your new wireless device is simple. All you have to do is insert the MobiLink CD into your computer’s CD-ROM drive. The CD guides you through the installation process and helps you set up your user preferences. IMPORTANT Installation must be performed within a 4G Mobile Broadband and/or Mobile Broadband coverage area. -
Page 13: Properly Insert The Device In Your Computer
Properly Insert the Device in Your Computer To properly insert the device, follow these steps. ➊ Use your fingernail to gently flip open the USB Connector on your wireless device to a 45-degree angle. Be sure to avoid over-extending the USB Connector past its resistance point. -
Page 14: Set Up The Software
Set Up the Software After the installer program is done, the software needs to detect your device and configure it. Setup and configuration details are included in the MobiLink user guide. Activate Your Device IMPORTANT The MC551 modem requires an activated SIM card with a network operator in order to function. -
Page 15: Properly Remove The Device From Your Computer
Properly Remove the Device from Your Computer IMPORTANT Be sure to disconnect from the network and quit MobiLink before you remove the device from your computer. Disconnecting and quitting the software avoids potential problems such as automatic shutdown or screen freezing. Windows The MC551 modem’s USB technology allows you to safely remove the device at any time when you are not connected to the network. -
Page 16: Using The Device After Setup Is Complete
Using the Device After Setup is Complete Open the USB connector ➤ Use your fingernail to gently flip open the USB Connector on your wireless device to a 45-degree angle. Be sure to avoid over-extending the USB Connector past its resistance point. Avoid opening the USB connector with metal objects as this might damage the pins. -
Page 17: Accessories
Accessories Lanyard Accessory A lanyard is included with the MC551 modem. It provides convenient portability while on the go. IMPORTANT Do not wear the lanyard and the MC551 modem around rotating machinery or during sleep. An emergency release clip is constructed in the design; however, you can also cut through the material. -
Page 18: Accessing The User Guides
Accessing the User Guides The User Guides can be easily accessed any time the installation CD is inserted. The installation CD includes the following User Guides: MobiLink Software User Guide – Explains the MobiLink features. • MC551 modem Product User Guide – Explains the MC551 modem’s hardware features. •... -
Page 19: Troubleshooting
Troubleshooting Overview Common Problems and Solutions Technical Support... -
Page 20: Overview
Overview When properly installed, the MC551 modem is a highly reliable product. Most problems are caused by one of these issues: System resources required by the modem are being used by other devices. • Network coverage is unavailable due to coverage area, an account problem, or a network •... -
Page 21: Common Problems And Solutions
Common Problems and Solutions The following are some common problems and solutions. My computer does not start when the device is inserted. I experience an error or a blank screen. When this happens, remove the device and restart the computer. The device contains internal ➤... -
Page 22: Technical Support
Technical Support IMPORTANT Before contacting support, remove your device, restart your computer, and remove and reconnect your device. For more information about your device, please visit www.novatelwireless.com. -
Page 23: Product Specifications And Regulatory Information
Product Specifications and Regulatory Information Product Specifications Regulatory Statements Wireless Communications Limited Warranty and Liability Safety Hazards... -
Page 24: Product Specifications
Product Specifications General NOTE The LTE network is not available in Canada. Name: Novatel Wireless Ovation MC551 4G USB modem Model: MC551 modem Approvals: FCC (North America); CDG Wireless Network - LTE (This network is NOT available in Canada) Weight: 35 g (1.23 oz) -
Page 25: Regulatory Statements
MODIFICATIONS: The FCC requires that you be notified that any changes or modifications made to this device that are not expressly approved by Novatel Wireless, Inc. may void your authority to operate the equipment. -
Page 26: Rf Exposure/Specific Absorption Rate (Sar) Information
RF Exposure/Specific Absorption Rate (SAR) Information This product has been evaluated for SAR and meets the FCC Guidelines for exposure to radio waves. FCC Equipment Authorization ID: PKRNVWMC551 Your wireless modem is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. -
Page 27: Wireless Communications
Novatel Wireless or its partners will not be held responsible for damages of any kind resulting from the delays or errors in data transmitted or received with the MC551 modem, or failure of the MC551... -
Page 28: Limited Warranty And Liability
Novatel Wireless’ specifications or authorized by Novatel Wireless, (III) normal wear and tear, (IV) damage caused by force of nature or act of any third person, (V) shipping damage, (VI) service or repair of Product by the purchaser without... -
Page 29: Safety Hazards
Safety Hazards Do not operate the MC551 modem in an environment that might be susceptible to radio interference resulting in danger, specifically: Areas where prohibited by the law Follow any special rules and regulations and obey all signs and notices. Always turn off the host device and remove the modem from the USB port when instructed to do so, or when you suspect that it might cause interference or danger. - Page 30 Electrostatic Discharge (ESD) Electrical and electronic devices are sensitive to electrostatic discharge (ESD). Macintosh native connection software might attempt to reinitialize the device should a substantial electrostatic discharge reset the device. If the software is not operational after an ESD occurrence, then restart your computer.
-
Page 31: Glossary
Glossary... - Page 32 Glossary ● 3G — Third Generation. 3G refers to the third generation of mobile telephony technology. The evolution of 3G technology is as follows: ● 802.11 (b, g, n) — A set of WLAN communication standards in the 2.4, 3.6 and 5 GHz frequency bands. ●...
- Page 33 ● HTTP — Hypertext Transfer Protocol. An application-level protocol for accessing the World Wide Web over the Internet. ● ICCID — Integrated Circuit Card IDentification. A serial number stored in and engraved or printed on a SIM card that internationally identifies the card. ●...
- Page 34 ● NNTP — Network News Transfer Protocol. An Internet application protocol for reading and posting Usenet (newsgroup) articles. ● POP — Post Office Protocol. An Internet protocol for retrieving email from a remote server over a TCP/ IP connection. ● Port —...
- Page 35 ● Telnet — Telecommunication Network. A network protocol used on the Internet or on local area networks. ● TFTP — Trivial File Transfer Protocol. A file transfer protocol with a subset of FTP functionality. ● UA — User Agent. Any device or software used to access a web page. A user agent might be a web browser, a smart phone, or a screen reader.
