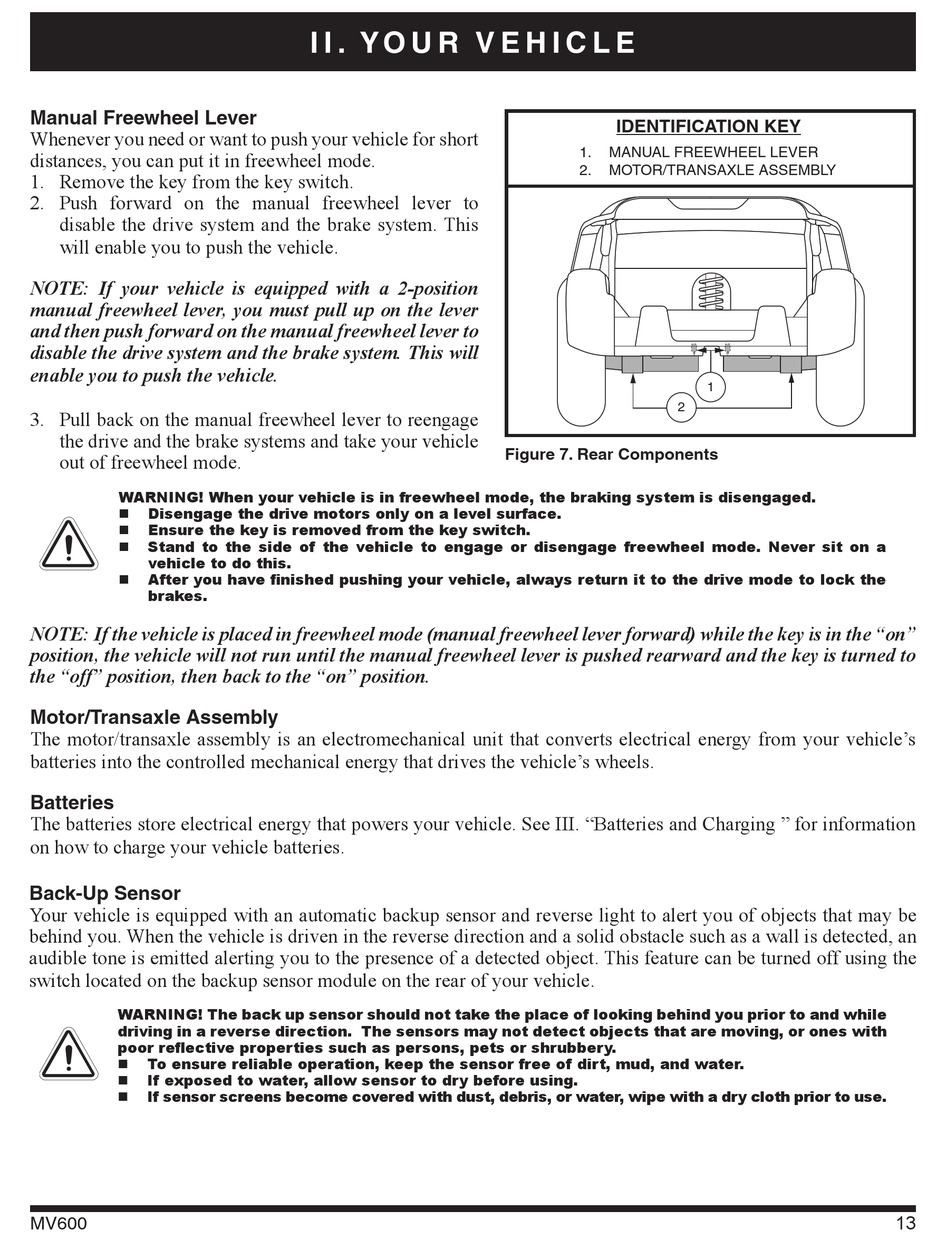

Pride Wrangler Owner's Manual page 13

Manual Freewheel Lever
Whenever you need or want to push your vehicle for short
distances, you can put it in freewheel mode.
1. Remove the key from the key switch.
2. Push forward on the manual freewheel lever to
disable the drive system and the brake system. This
will enable you to push the vehicle.
NOTE: If your vehicle is equipped with a 2-position
manual freewheel lever, you must pull up on the lever
and then push forward on the manual freewheel lever to
disable the drive system and the brake system. This will
enable you to push the vehicle.
3. Pull back on the manual freewheel lever to reengage
the drive and the brake systems and take your vehicle
out of freewheel mode.
WARNING! When your vehicle is in freewheel mode, the braking system is disengaged.
Disengage the drive motors only on a level surface.

Ensure the key is removed from the key switch.

Stand to the side of the vehicle to engage or disengage freewheel mode. Never sit on a

vehicle to do this.
After you have fi nished pushing your vehicle, always return it to the drive mode to lock the

brakes.
NOTE: If the vehicle is placed in freewheel mode (manual freewheel lever forward) while the key is in the "on"
position, the vehicle will not run until the manual freewheel lever is pushed rearward and the key is turned to
the "off" position, then back to the "on" position.
Motor/Transaxle Assembly
The motor/transaxle assembly is an electromechanical unit that converts electrical energy from your vehicle's
batteries into the controlled mechanical energy that drives the vehicle's wheels.
Batteries
The batteries store electrical energy that powers your vehicle. See III. "Batteries and Charging " for information
on how to charge your vehicle batteries.
Back-Up Sensor
Your vehicle is equipped with an automatic backup sensor and reverse light to alert you of objects that may be
behind you. When the vehicle is driven in the reverse direction and a solid obstacle such as a wall is detected, an
audible tone is emitted alerting you to the presence of a detected object. This feature can be turned off using the
switch located on the backup sensor module on the rear of your vehicle.
WARNING! The back up sensor should not take the place of looking behind you prior to and while
driving in a reverse direction. The sensors may not detect objects that are moving, or ones with
poor refl ective properties such as persons, pets or shrubbery.
To ensure reliable operation, keep the sensor free of dirt, mud, and water.

If exposed to water, allow sensor to dry before using.

If sensor screens become covered with dust, debris, or water, wipe with a dry cloth prior to use.

MV600
I I . Y O U R V E H I C L E
IDENTIFICATION KEY
1. MANUAL FREEWHEEL LEVER
2. MOTOR/TRANSAXLE ASSEMBLY
2
Figure 7. Rear Components
1
13
