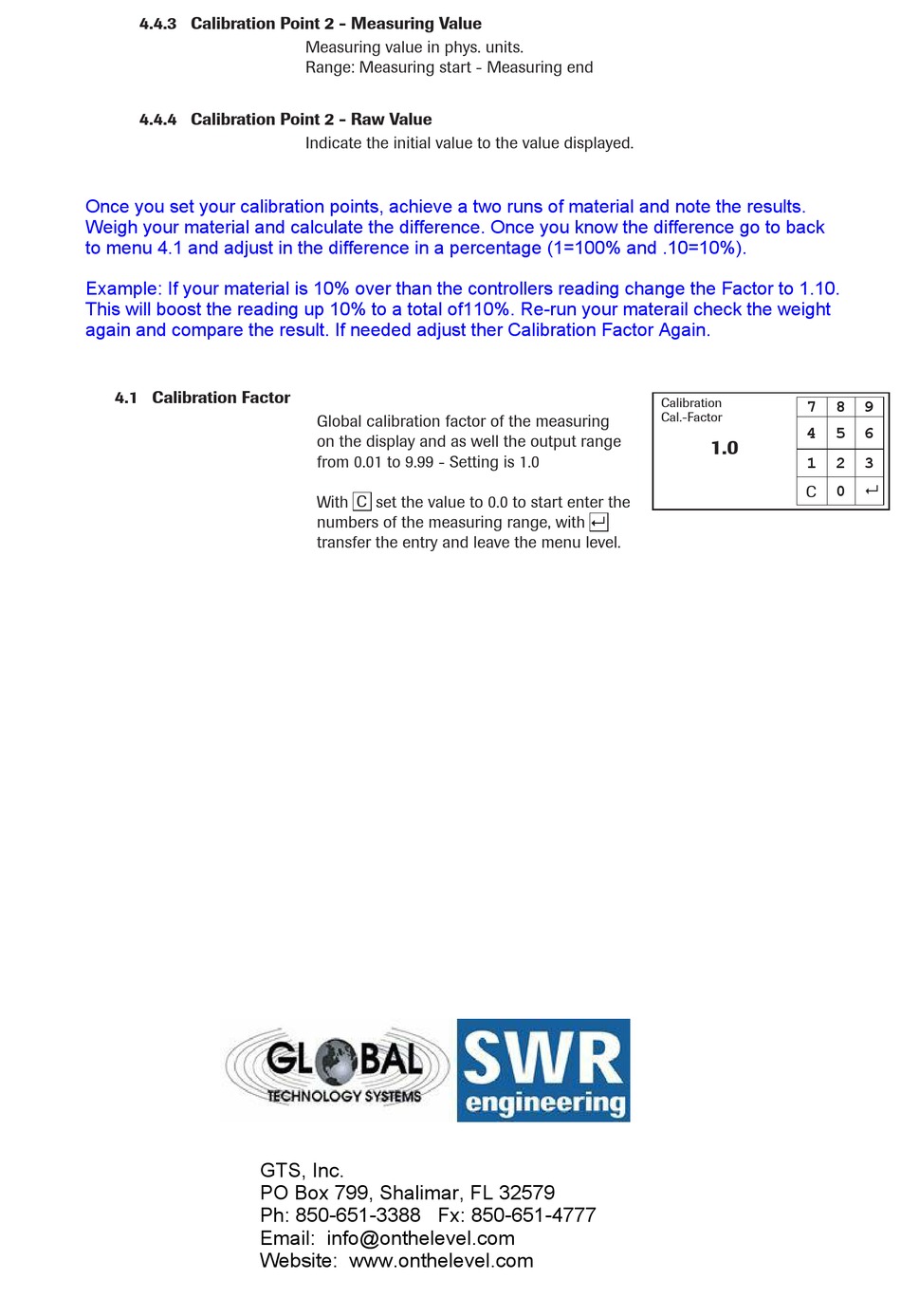

SWR ENGINEERING SolidFlow Operating Instructions Manual page 32

4.4.3 Calibration Point 2 - Measuring Value
4.4.4 Calibration Point 2 - Raw Value
Once you set your calibration points, achieve a two runs of material and note the results.
Weigh your material and calculate the difference. Once you know the difference go to back
to menu 4.1 and adjust in the difference in a percentage (1=100% and .10=10%).
Example: If your material is 10% over than the controllers reading change the Factor to 1.10.
This will boost the reading up 10% to a total of110%. Re-run your materail check the weight
again and compare the result. If needed adjust ther Calibration Factor Again.
4.1 Calibration Factor
Measuring value in phys. units.
Range: Measuring start - Measuring end
Indicate the initial value to the value displayed.
Global calibration factor of the measuring
on the display and as well the output range
from 0.01 to 9.99 - Setting is 1.0
With C set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
GTS, Inc.
PO Box 799, Shalimar, FL 32579
Ph: 850-651-3388 Fx: 850-651-4777
Email: info@onthelevel.com
Website: www.onthelevel.com
Calibration
Cal.-Factor
1.0
8
7 8 9
4 5 6
1 2 3
0
C 8
