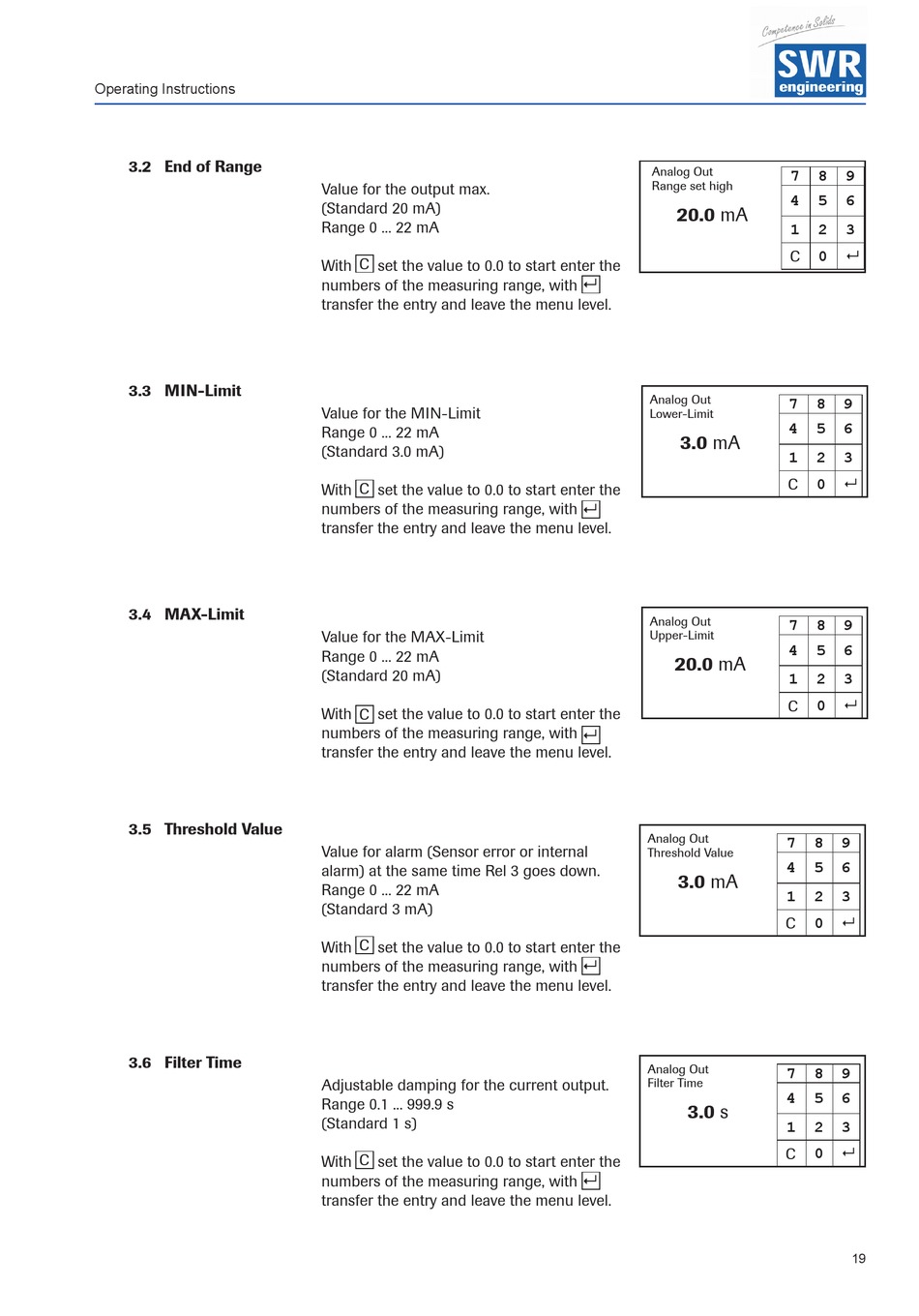

Operating Instructions
3.2 End of Range
3.3 MIN-Limit
3.4 MAX-Limit
3.5 Threshold Value
3.6 Filter Time
Value for the output max.
(Standard 20 mA)
Range 0 ... 22 mA
C
With
set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
Value for the MIN-Limit
Range 0 ... 22 mA
(Standard 3.0 mA)
C
With
set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
Value for the MAX-Limit
Range 0 ... 22 mA
(Standard 20 mA)
With
C
set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
Value for alarm (Sensor error or internal
alarm) at the same time Rel 3 goes down.
Range 0 ... 22 mA
(Standard 3 mA)
C
With
set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
Adjustable damping for the current output.
Range 0.1 ... 999.9 s
(Standard 1 s)
C
With
set the value to 0.0 to start enter the
numbers of the measuring range, with
transfer the entry and leave the menu level.
Analog Out
Range set high
20.0 mA
8
Analog Out
Lower-Limit
3.0 mA
8
Analog Out
Upper-Limit
20.0 mA
8
Analog Out
Threshold Value
3.0 mA
8
Analog Out
Filter Time
3.0 s
8
7
8
9
4
5
6
1
2
3
0
C
8
7
8
9
4
5
6
1
2
3
0
C
8
7
8
9
4
5
6
1
2
3
0
C
8
7
8
9
4
5
6
1
2
3
0
C
8
7
8
9
4
5
6
1
2
3
0
C
8
19
