DEMONSTRATION CIRCUIT 1680B OPERATION
Interrupt LED
A red LED indicates when the INT line is pulled logic low
by the daughter card. When the interrupt is cleared (high)
2
via I C servicing, the LED is turned off.

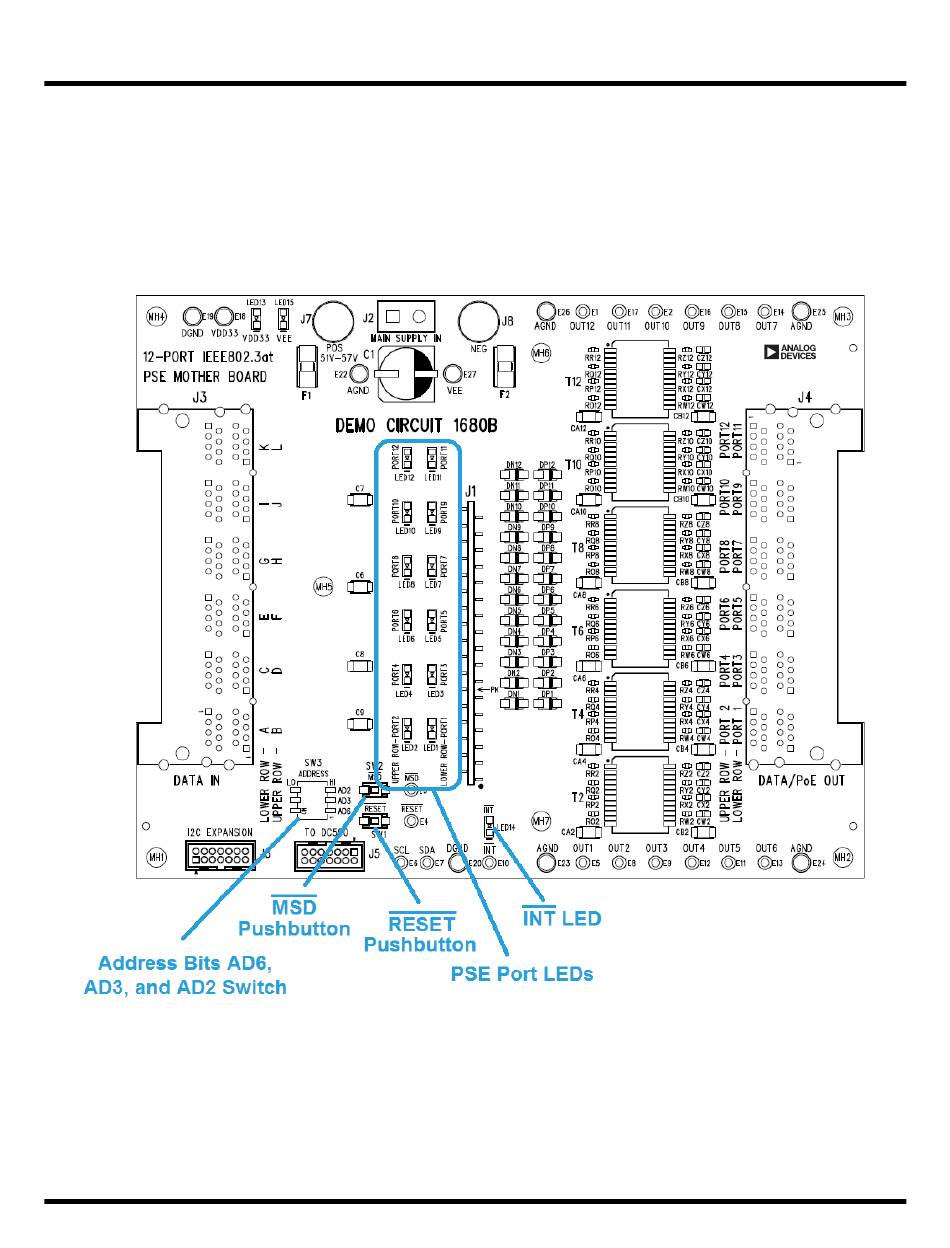

Figure 13. DC1680B Address Switch, Pushbutton Switches, INT LED, and Port Power LEDs
DEMO MANUAL DC1840C
Port 1 Through 12 Power LED Indicators
Each PSE port has a green LED indicator to show when
PoE power is present at the port. The LEDs are driven by
the respective port OUT voltage.
