Snapper Legacy XL 2000 Operator's Manual page 20

Snowthrower Installation
11. See Figure 27. Insert the deflector control handle (B)
into the mounting bracket (C).
Route the remote deflector control cable and spout
rotator motor wires through the cable guide (Figure
28).
Secure the handle (B, Figure 27) using a clevis pin
(A) and hair pin clip (D).
NOTE: If the mounting holes have not been drilled in the
dashboard see Drill Remote Deflector Control Mounting
Holes under INITIAL INSTALLATION.
12. Lubricate the snowthrower as shown in the
Maintenance section.
13. Perform all adjustments as shown in the Adjustments
section.
C

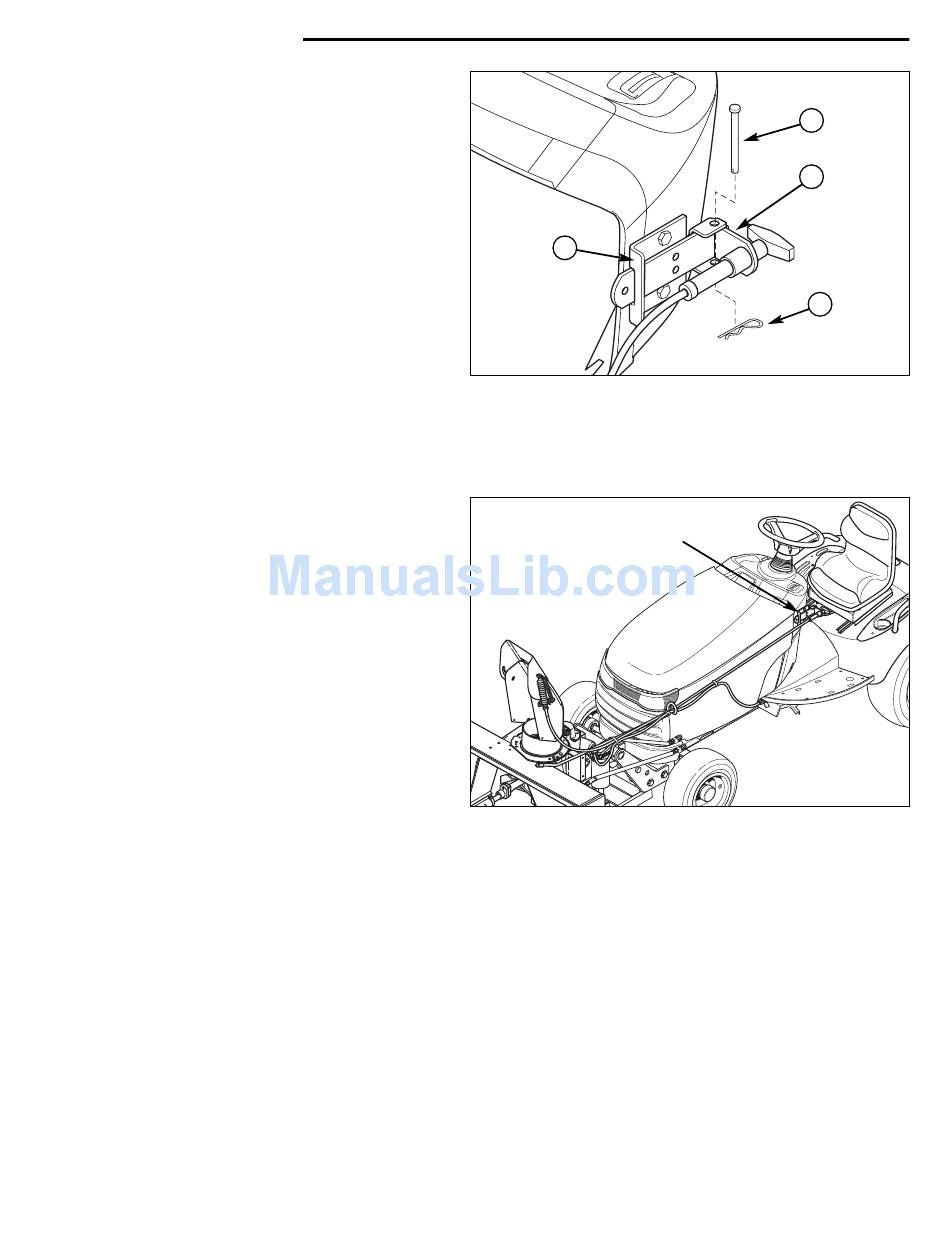

Figure 27. Install Remote Deflector Control
A. Clevis Pin
B. Deflector Control Handle
C. Mounting Bracket
D. Hair Pin Clip
Remote Deflector Control
Figure 28. Cable and Wire Routing
18
A
B
D
