INITIAL INSTALLATION
Follow the instructions for the sub-frame kit.
Install Front Hitch
1. Lift assembly (C, Figure 14) and slide onto slots on
tractor (D). Lift back of assembly to frame and install
clevis pins (B), clevis pins (F) and hair pins (A).
Many approved attachments have color coded quick
couplers to aid in installation. Match the tractor quick
coupler with the like colored attachment quick cou-
pler.
E
C

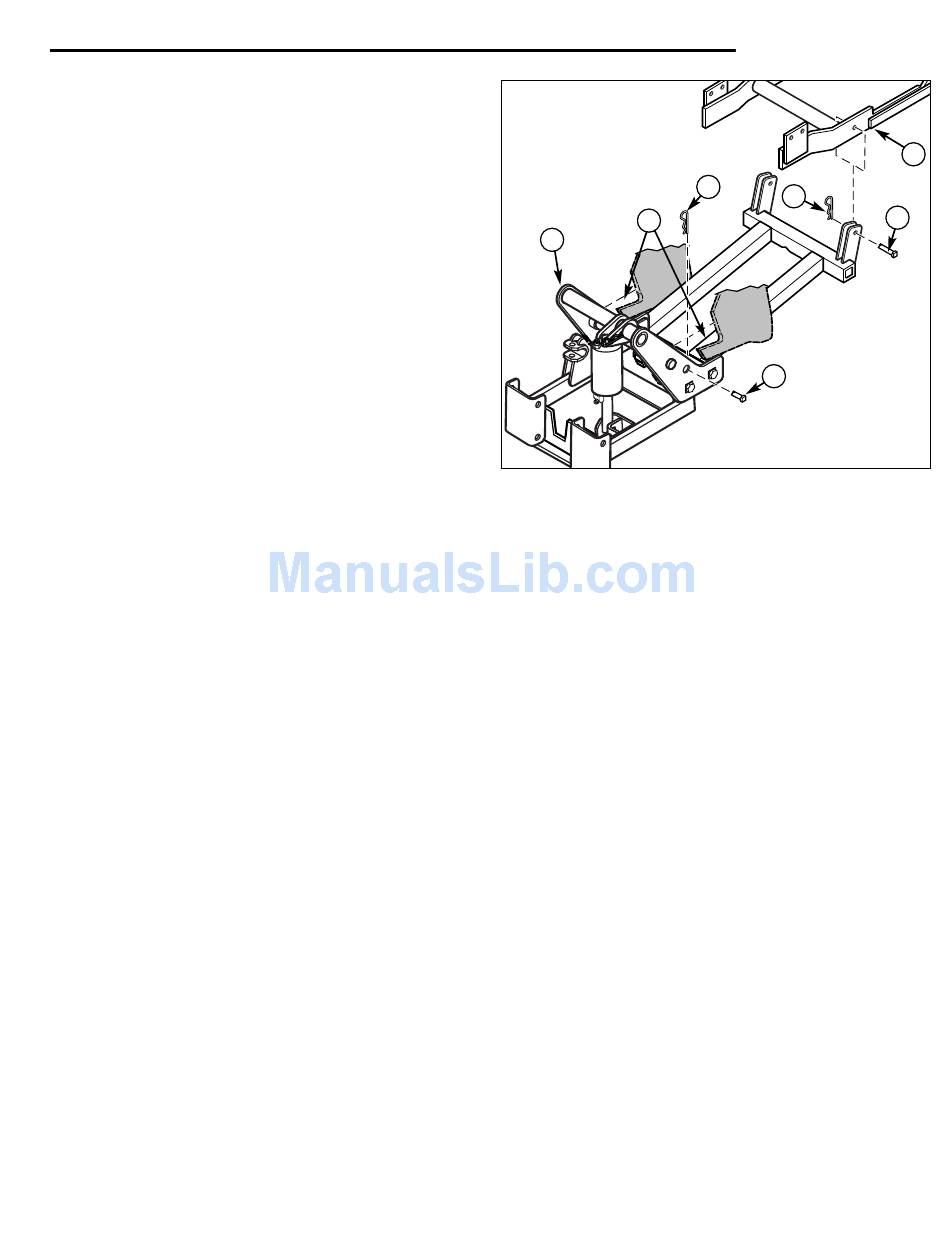

Figure 14. Hitch to Tractor Installation
A. Hair Pin
B. Clevis Pin, 5/8 x 1-13/16 E. Slots on Tractor
C. Assembly
13
Initial Installation
A
A
F
D. Sub-frame
F. Clevis Pin, 5/8 x 2-1/2
D
B
