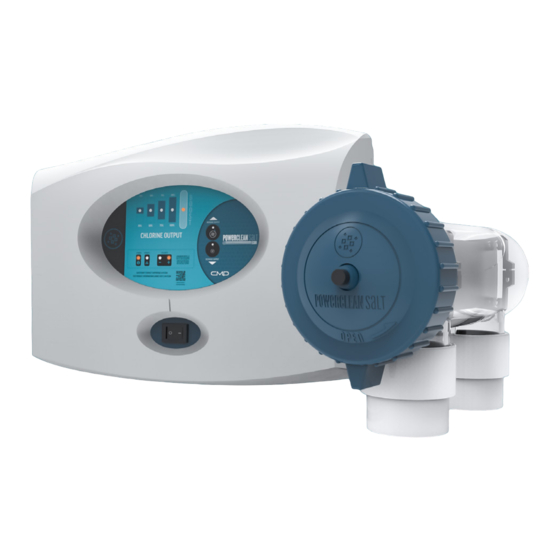

- Page 1 ® POWERCLEAN SALT ECON INSTALLATION INSTRUCTIONS & PRODUCT MANUAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Congratulations on your purchase of a Powerclean Salt Econ. You have made a wise decision and will benefit from your chlorinator for many years to come. Please read through the entire manual before installing your new unit. Your chlorinator must be installed and operated as specified. -
Page 3: Safety Instructions & Precautions
A. SAFETY INSTRUCTIONS & PRECAUTIONS IMPORTANT SAFETY INSTRUCTIONS. READ AND FOLLOW ALL INSTRUCTIONS To reduce the risk of injury, do not permit children to use this product unless they are closely WARNING supervised at all times. Risk of Electric Shock. Connect only to a grounding type receptacle protected by a ground-fault WARNING circuit-interrupter (GFCI). - Page 4 To reduce the risk of injury, installation and service should be done by a qualified Pool Service WARNING Professional, certified electrician or authorized CMP representative. In order to comply with UL1081 Section 53.5 and UL1795 (Hydro-massage bathtubs) Sections 21.1, WARNING 59.5 and 63.1 and some local electrical codes;...
- Page 5 • Power to the Powerclean Salt Econ should be turned off before unplugging the Electrolytic cell from the cell housing, or power supply, to prevent cell damage and low voltage sparks. Scratching or bending plates in the cell housing will reduce cell life.
-
Page 6: System Sizing
B. SYSTEM SIZING REFERENCE RESIDENTIAL SIZING CHART POOL SIZE - POOL SIZE - CHLORINE CELL SIZE STANDARD HIGH DEMAND* PER DAY 20,000 GAL 14,000 GAL 0.78LB 40,000 GAL 28,000 GAL 1.35LB TABLE 1 - SIZING CHART * Correct sizing of a chlorine generator is subject to the specifications of each body of water, and should be carefully evaluated for best results. -
Page 7: Installation Procedure
1 Jumper Wire 1 Electrolytic Cell with Cord and Cap 1 Mounting Bracket 1 Cleaning Tool 1 Owner’s Manual The following items will also be required to install the Powerclean Salt Econ system: Screwdriver Level Hacksaw or PVC Cutter Wire Stripping Tool... -
Page 8: Control Center Installation
IMPORTANT: Do not enclose the Control Center in any box. d. The Powerclean Salt Econ Control Center has two mounting bolts installed at the top back of the unit: simply place the head of the pins in the keyhole slots on the wall bracket, and allow the unit to hang freely. - Page 9 C. INSTALLATION PROCEDURE IMAGE 2 - BOTTOM OF CONTROL CENTER GROUND GROUND TIMER CLOCK TIMER CLOCK SUB PANEL SUB PANEL LINE LINE 120V AC 220V AC CONFIGURATION CONFIGURATION GROUND GROUND PUMP PUMP IMAGE 3 - WIRING BLOCK DIAGRAM...
-
Page 10: Generator Cell Installation
BOOST, see Troubleshooting on page 16. d. The rule of thumb for daily run time of the Powerclean Salt Econ system is 1 hour of operation for every 10 degrees of ambient temperature (i.e. 90 degrees would equal 9 hours of run time). - Page 11 C. INSTALLATION PROCEDURE MEASUREMENT RECOMMENDED LEVEL DETAILS FREE CHLORINE Recommended level for residential pools to keep chlorine at a proper 1.0 - 3.0 PPM range for sanitization High pH reduces sanitizer efficiency. Low pH damages pool surfaces and 7.2 - 7.6 irritates skin and eyes TOTAL ALKALINITY ( TA ) 80 - 100 PPM...
-
Page 12: System Operation
2. SALT REQUIREMENTS The Powerclean Salt Econ operates best with a salt range of 4,000 - 4,500 ppm. The cell will continue to operate with a minimum of 3,000 PPM and up to 35,000 PPM without any adverse effects to the unit. -
Page 13: Control Center Operation
D. SYSTEM OPERATION 3. CONTROL CENTER OPERATION CONTROL CENTER GUIDE Chlorine Output Lights (A) show level of chlorine output as a percentage of system capacity b. Solid Power light (B) indicates the system is operating correctly Service Light (C) indicates a system warning. See Troubleshooting section page 16 d. -
Page 14: Cold Weather Operation/Winterization
4. COLD WEATHER OPERATION/WINTERIZATION In cold water conditions (below 60°F), sanitizer demand is reduced significantly. The Powerclean Salt Econ will reduce its rate of production with water temperatures of 59 degrees Fahrenheit and below depending on the condition of the pool water chemistry. - Page 15 D. SYSTEM OPERATION IMAGE 6 - CELL CLEANING WITH TOOL...
-
Page 16: Troubleshooting
E. TROUBLESHOOTING SITUATION POSSIBLE CAUSE CORRECTIVE ACTION Low stabilizer (Cyanuric acid level in Add stabilizer to maintain 20-30 PPM per pool water). pool professional’s recommendations. Insufficient run time. Increase daily run time. Recommend 1 hour of run time per 10 degrees ambient temp. - Page 17 Make sure there is not an air bubble at point of sensor tab in cell housing – if there is, contact your pool professional or CMP Tech Support. Problem with power to Control Center. • Check to make sure On/OFF Switch is •...
- Page 18 E. TROUBLESHOOTING SITUATION POSSIBLE CAUSE CORRECTIVE ACTION Incorrect or no voltage coming from the Have an experienced pool professional or power source. an electrician confirm that the voltage is existent and correct. Circuit breaker may be tripped. A 6 Amp resettable circuit breaker is located on the bottom right of the control The system will not turn on.
-
Page 19: Water Care General Guidelines
Weekly Water Care Chlorine Test: Test pool water chlorine level with a reliable test kit. Maintain ideal range by adjusting Powerclean Salt Econ Chlorine Output level (see Basic Operation on page 13). Note: Chlorine residual above 5.0 PPM may cause corrosion of pool metals and possible damage to associated pool equipment. -
Page 20: Parts List
20,000 GALLON POWERCLEAN SALT EXTENDED LIFE REPLACEMENT CELL 52000 - 240 - 160 40,000 GALLON POWERCLEAN SALT EXTENDED LIFE REPLACEMENT CELL 52000 - 200 - 103 POWERCLEAN SALT ECON CELL HOUSING 52000 - 200 - 101 O - RING FOR POWERCLEAN SALT MODELS ––... - Page 21 Installer _______________________________________________________________ System Purchased From ______________________________________________ Installation Date _____________________________ Serial Number _______________________________ Model Number ______________________________ Pool Size in Gallons __________________________ CMP Customer Service & Tech Support Toll Free: 1-800-733-9060 FAX: 770-632-7115 support@c-m-p.com Warranty Questions RMA@c-m-p.com Support Resource & Videos Online...
- Page 22 NOTES...
- Page 23 NOTES...
- Page 24 CMP Customer Service & Tech Support Toll Free: 1-800-733-9060 FAX: 770-632-7115 support@c-m-p.com Warranty Questions RMA@c-m-p.com Support Resource & Videos Online c-m-p.com/resourcecenter 1118ab CUSTOM MOLDED PRODUCTS | 36 HERRING ROAD, NEWNAN, GA 30265 | WWW.C-M-P.COM...
