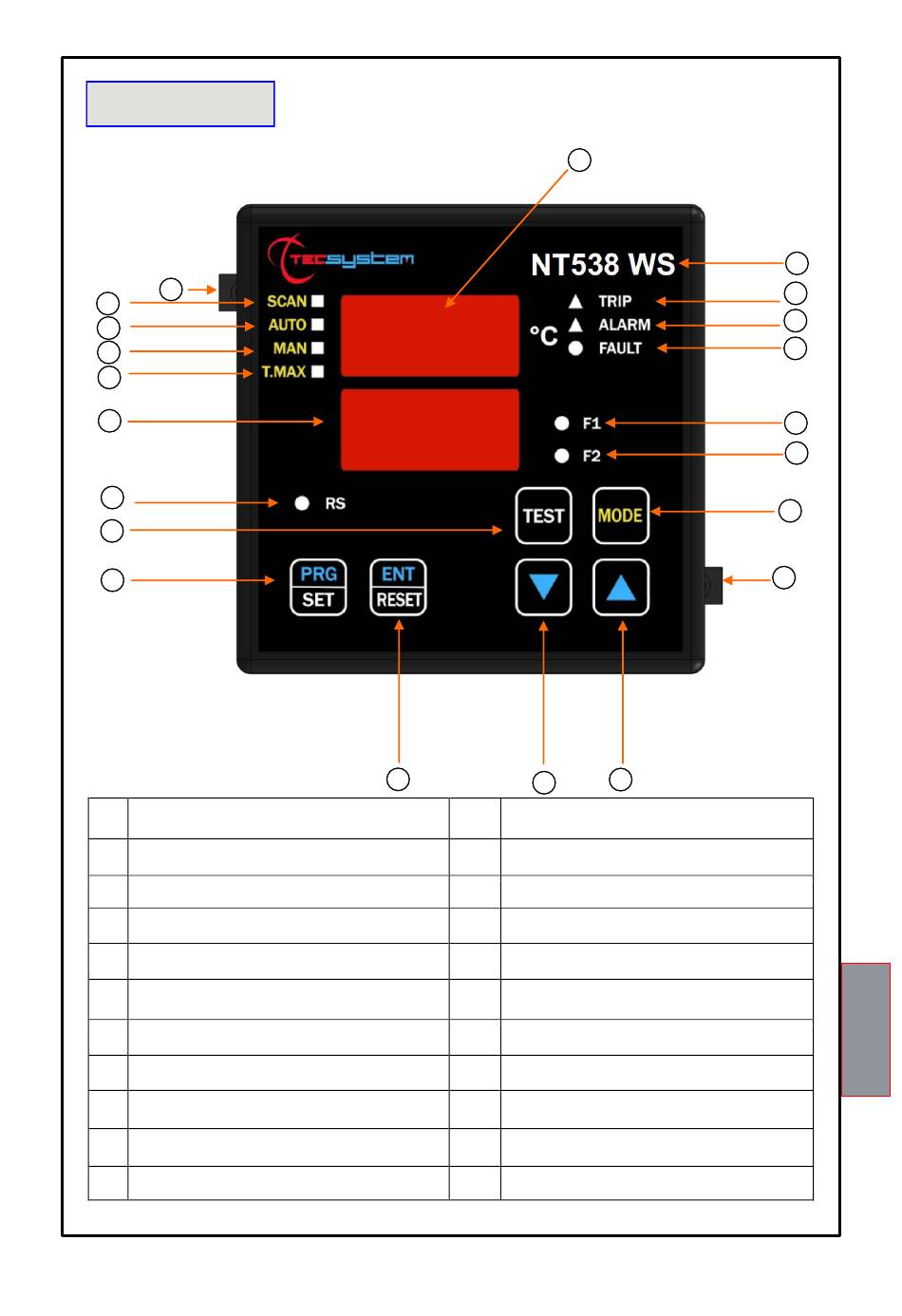

FRONT PANEL

21
20
19
18
17
16
15
14
13
1) 3-digit temperature display
2) Control unit series
3) TRIP (red) LED
4) ALARM (yellow) LED
5) FAULT (red) LED
6) FAN 1 (yellow) LED
7) FAN 2 (yellow) LED
8) Display mode selection key
9) Fixing block
10) UP key
11) DOWN key
8
12
11
12) Enter/Reset button
13) Programming/Setting key
14) Led/relay test key
15) RS (green) LED
16) 3-digit channel display
17) T-max mode selection (red) LED
18) Man mode selection (yellow) LED
19) Auto mode selection (green) LED
20) Scan mode selection (yellow) LED
21) Fixing block
NT538 WS
1
1MN0123 REV. 0
10
2
3
4
5
6
7
8
9
