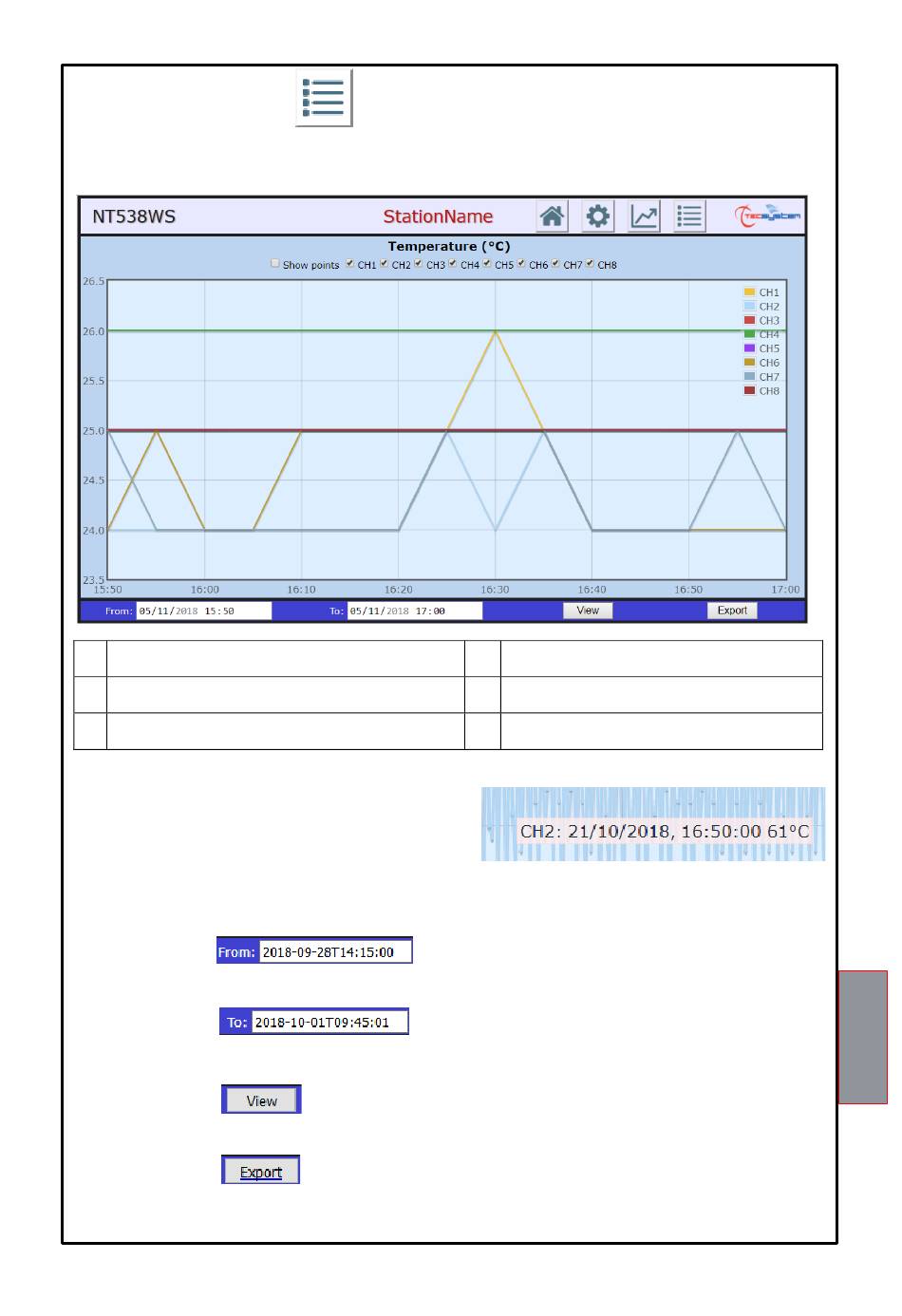

GRAPHICS SCREEN

The Graphics screen allows the user to view the temperature trend of the enabled channels, CH1-CH2-CH3-CH4-CH5-
CH6-CH7-CH8, graphic view notes on page 28
sampling range, options screen on page 25.
3
1 Recording points display flag
2 CHn channel enabling flag
3 Data availability DA yy/mm/dd Time: hh/mm/ss
Recording points display flag
Enabling the recording points display flag it will be possible to
identify each recording in the graph. Clicking on the individual
point will show the information of: channel, date, time and
recorded temperature value.
CH channel selection flag
Enable / disable the graphic display of the individual CHn channel.
FROM box
It allows the user to select the period of graphic display by changing the data availability from yy/mm/dd - Time: hh/mm/ss
TO box
It allows the user to select the period of graphic display by changing the data availability to yy/mm/dd - Time: hh/mm/ss
VIEW button
Pressing the VIEW button will update the chart according to the dates selected FROM/TO.
EXPORT button
By pressing the EXPORT button, all the temperature values recorded according to the FROM/TO selections can be
downloaded in CSV format (text file). Export notes CSV file on page 28.
26
.
Data saving can be programmed according to user needs by changing the
1
4
NT538 WS
2
5
4 Data availability A yy/mm/dd Time: hh/mm/ss
5 View key
6 Export key
