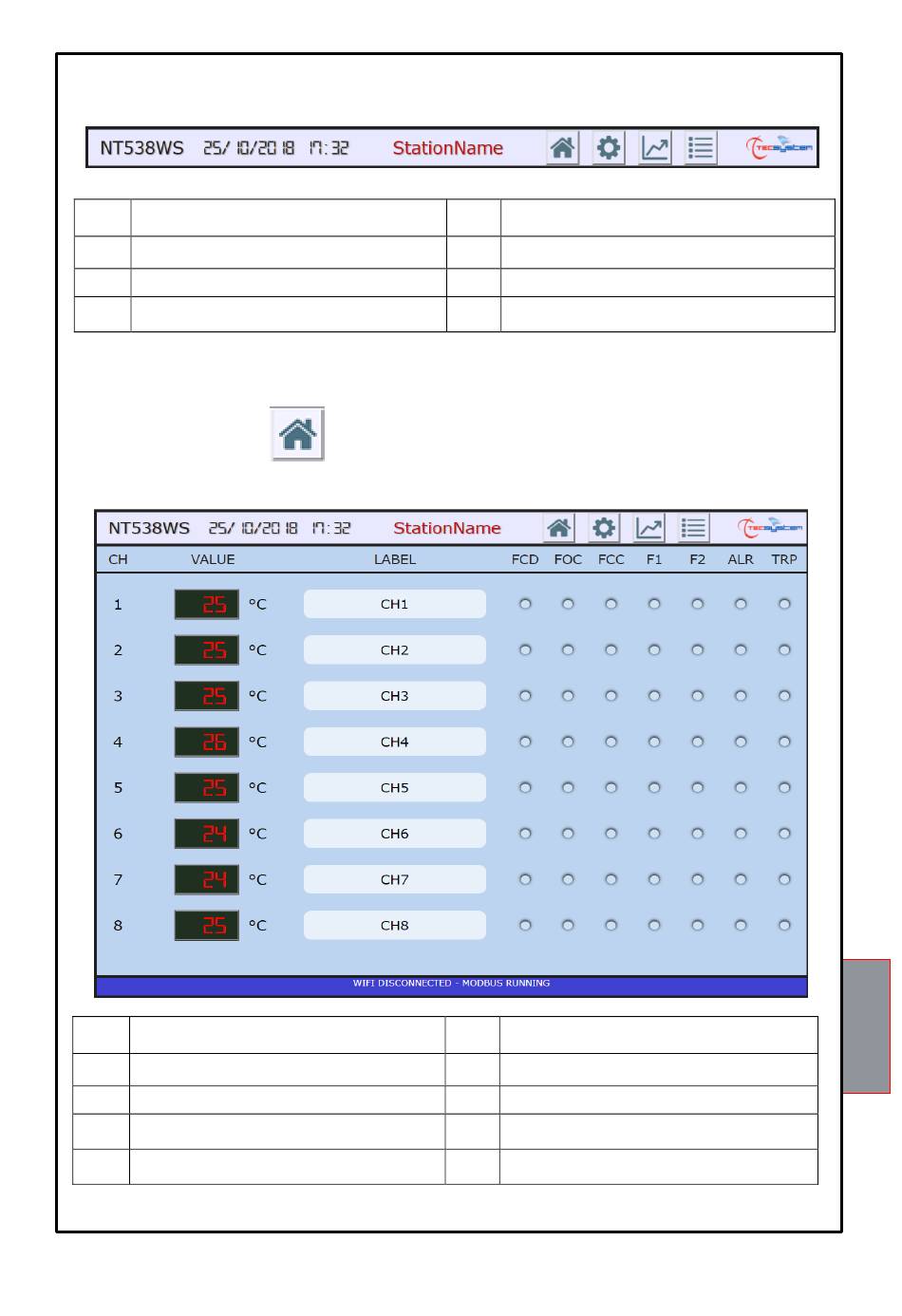

WEB SERVER MANAGEMENT BAR

The web server management bar allows the user to identify the cabin and to select the various screens.
1
The following information is shown in the management bar:
1 Control unit model
2 Reference date
3 Reference time
4 Station Name or monitored cabin (*)
(*) The Station Name indication can be customised by the user in the options- labels settings screen, see page 25.
Pressing the selection keys 5-6-7-8 it is possible to access the various screens; the web manager will display only
one screen at a time.

HOME SCREEN

The HOME screen shows the operating status of each channel, i.e.: the temperature detected by each channel, the FCD-
FOC-FCC sensor fault indications, activation of the F1-F2-ALARM-TRIP alarms.
2
1
Channel indication CH1-CH2-CH3-CH4-CH5-
1
CH6-CH7-CH8
Channel temperature CH1-CH2-CH3-CH4-CH5-
2
CH6-CH7-CH8
3 Channel reference label (*)
4 FCD signal ON red LED
5 FOC signal ON red LED
(*) the label indication can be customised by the user in the options – labels settings screen, see page 25.
22
2
3
3
NT538 WS
4 5 6
5 HOME screen selection key
6 SETTINGS screen selection key
7 GRAPHICS screen selection key
8 EVENT LOG screen selection key
4 5 6
6 FCC signal ON red LED
7 F1 signal ON yellow LED (FAN1)
8 F2 signal ON yellow LED (FAN2)
9 ALR signal ON red LED (ALARM)
10 TRP signal ON red LED (TRIP)
7 8
7 8 9 10
