ATTENTION:
We recommend you check the device's programming before starting the device.
The default parameters set by TECSYSTEM might not match your requirements.
Programming the device is the end user's responsibility, the settings of the alarm thresholds and the enabling of
the functions described in this manual must be checked (by a specialized engineer) according to the application
and features of the system the control unit is installed on.
NETWORK SETTINGS key

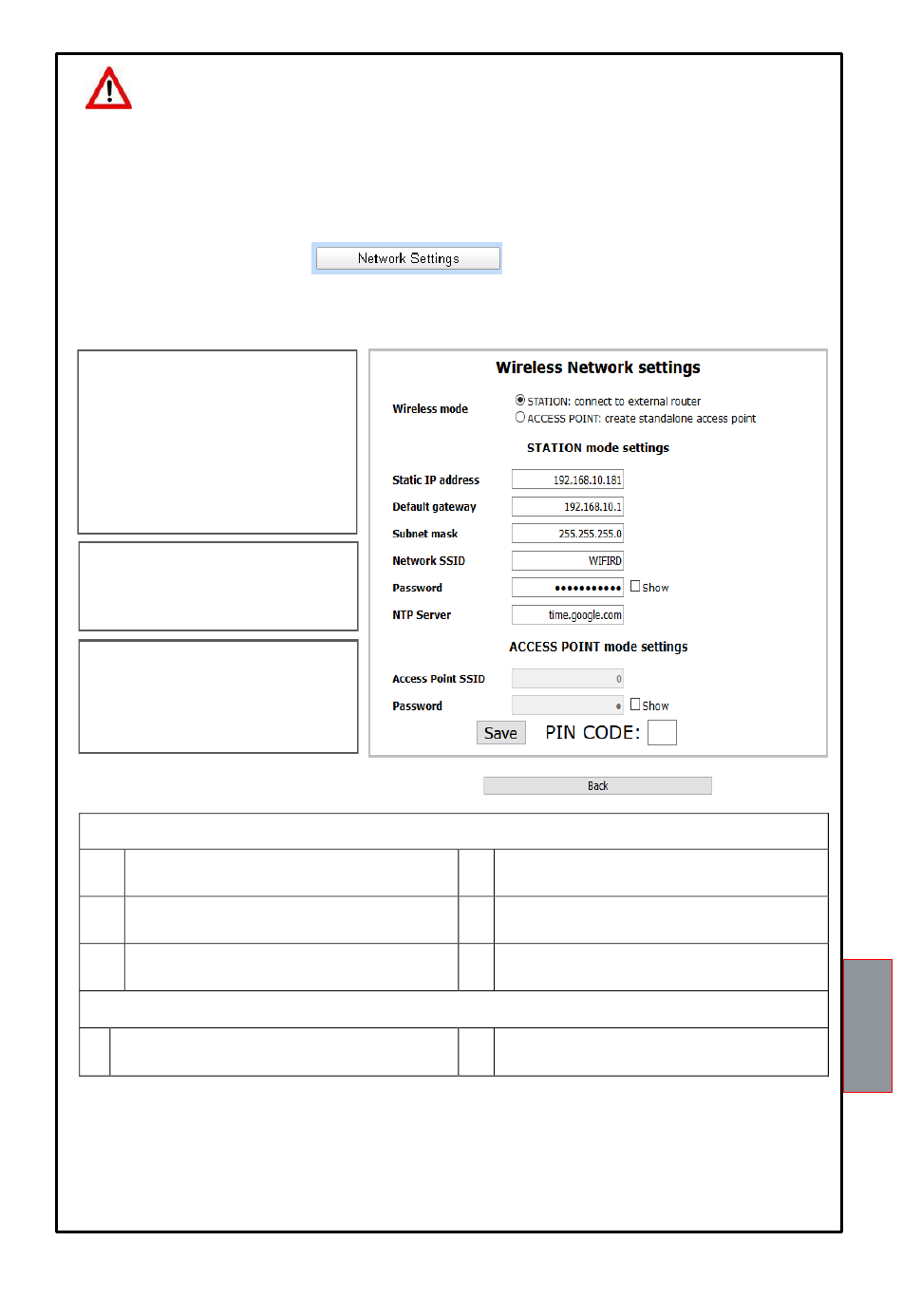

Pressing the NETWORK SETTINGS button the user accesses the Wireless network setting screen. In this screen the user
can select the STATION or ACCESS POINT operating mode and set the network parameters.
WIRELESS MODE
it allows the user to select the operating
mode.
STATION: the web server is connected via
WI-FI to a pre-established network.
ACCESS POINT: the device works in the
indicated mode, creating
independent Wi-Fi network.
STATION MODE SETTINGS
Setting of the defined network parameters to
which the control unit is connected.
ACCESS POINT MODE SETTINGS
Setting of network parameters:
network name) and Password of the
network to which the control unit is
connected.
NOTE: For information / clarifications regarding the Wifi
network connection, contact your IT MANAGER
2 Static IP address
3 Default gateway
4 Subnet mask
Access Point SSID (default TECSYSTEM)
8
(network name modification)
After entering the PIN CODE, default 00000, Press SAVE to save the set values. A POP UP window will confirm the correct
saving of data.
Press BACK to return to the previous screen.
(*) Note: PIN CODE settings and operation at page 28.
24
its own
SSID
1 Selection STATION mode settings
1 Selection ACCESS POINT mode settings
NT538 WS
1
2
3
4
5
6
7
8
9
5 Wi-Fi network name
(Wi-Fi network on which to connect the device)
6 Wi-Fi network password
(SHOW for password verification)
7 Server NTP address
(automatic time and date update)
Password (default TECSYSTEM)
9
(SHOW for password verification)
