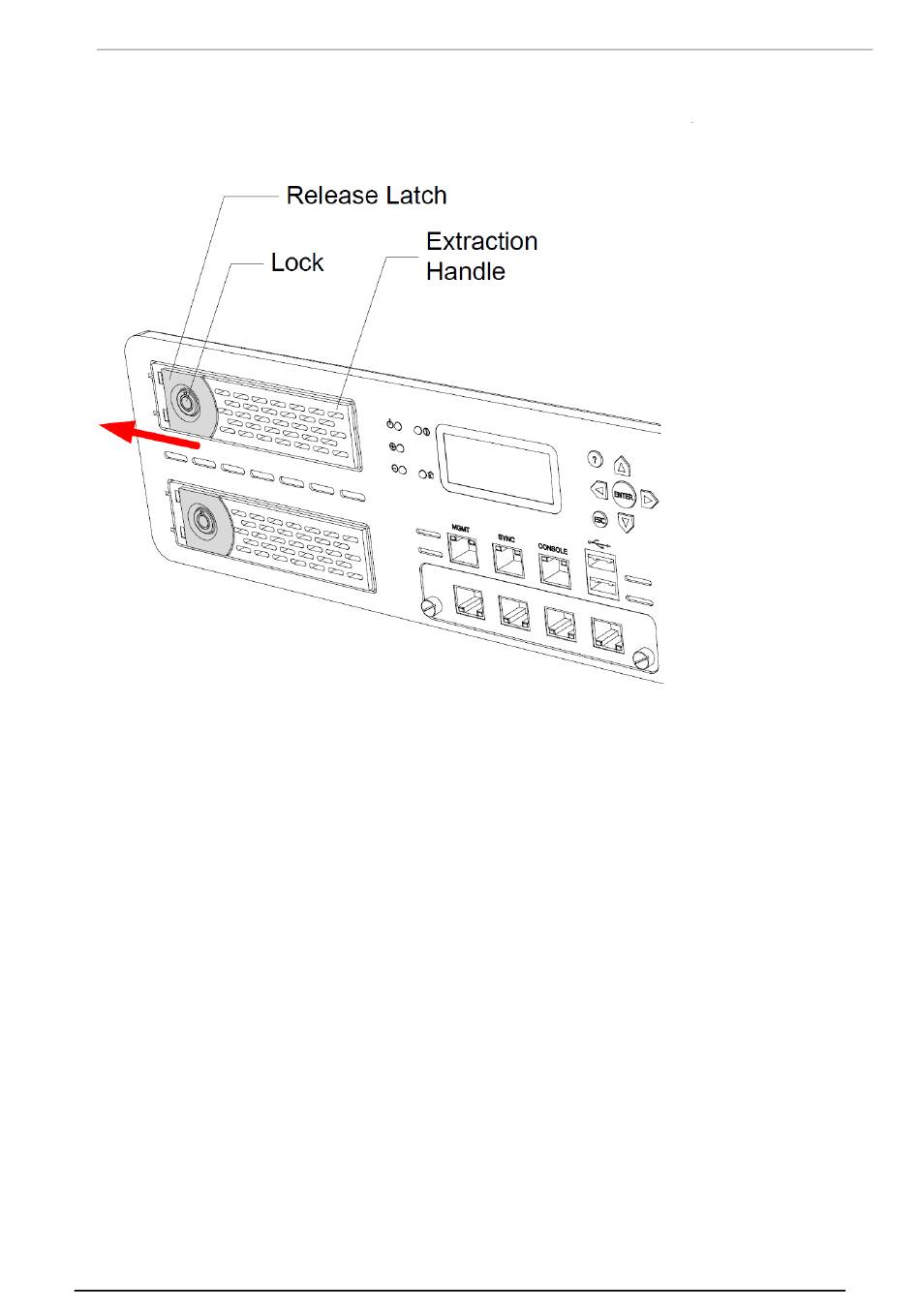

Power-1 9070 and 11000 series models contain two hot-swappable redundant hard disk drives (RAID1).
Figure 3-3
Hard Disk Drives
RAID1 Mirroring
Implemented by a dedicated RAID controller, the Power-1 9070 model performs RAID1 mirroring across two
hard disk drives. Mirror rebuild is automatic.
Rear Panel Components
This section describes components located on the rear panel of the appliance.
Main Power Switch
The main power switch controls power to the entire unit. This appliance has two main power switches for
your convenience.
Rear Panel Components
Power-1 Hardware
Page 21
