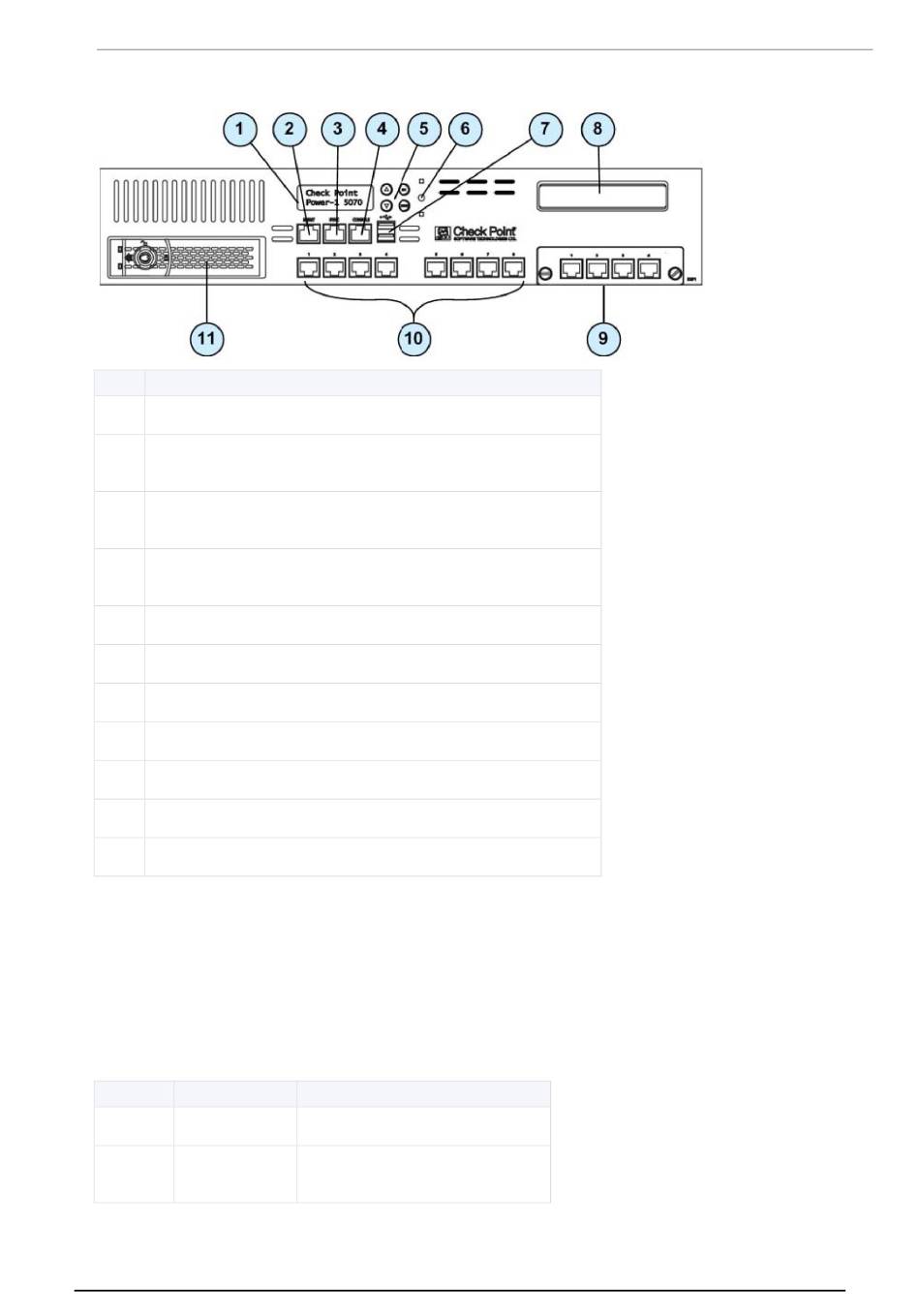

Power-1 5070 Front Panel

Key Description
1 LCD display screen
2 Management connection port - Ethernet connection to a
remote management workstation
3 Synchronization port - for synchronizing with cluster members
or a high availability peer
4 Console port - for a serial connection to the appliance using a
terminal emulation program such as HyperTerminal
5 Screen operation keys
6 Power indicator LED
7 USB ports
8 Future expansion slot
9 Expansion line card exp (2 or 4 ports)
10 Built in Ethernet ports (Lan1 - Lan8)
11 Hard disk drive

Managing Power-1 Using the LCD Panel

The appliance has an LCD panel that can be used to perform basic management operations. The
management IP address, netmask, and default gateway of the appliance can be configured. The appliance
can also be rebooted.
Menu Options
Menu Sub-menu
Network
DHCP
Purpose
Enable or disable IP address
allocation using DHCP
