Check Point Power-1 Getting Started Manual page 12

Click Next.
8. Configure Network Connections in the Network Connections page.
If you modify the Mgmt address, a secondary interface is automatically created to preserve connectivity.
This secondary interface can be removed on the Network > Network Connections page after the
wizard is completed.
Click Next.
9. Configure Routing on the Routing Table page.
Click Next.
10. Set the Host and Domain on the Host and Domain Name page.
The host name must start with a letter and cannot be named Com1, Com2....Com9.
Set the DNS servers on the DNS Servers page.
Click Next.
11. Configure client access in the Web/SSH window. Define which IP addresses are allowed to connect
using Web or SSH Clients. These clients will be able to manage the appliance using a web or SSH
connection. Enter a comma-separated list of IP addresses from which you will manage Power-1. Type
Any to manage Power-1 from any computer.
These and other advanced configuration options are available via the WebUI menu.
Click Next.
12. Configure the gateway type as either standard, a member of a cluster, or as a type of gateway that uses
a dynamically assigned IP address.
Click Next.
13. Establish Secure Internal Communication (SIC) with the SmartCenter server that will manage the
Power-1 appliance:

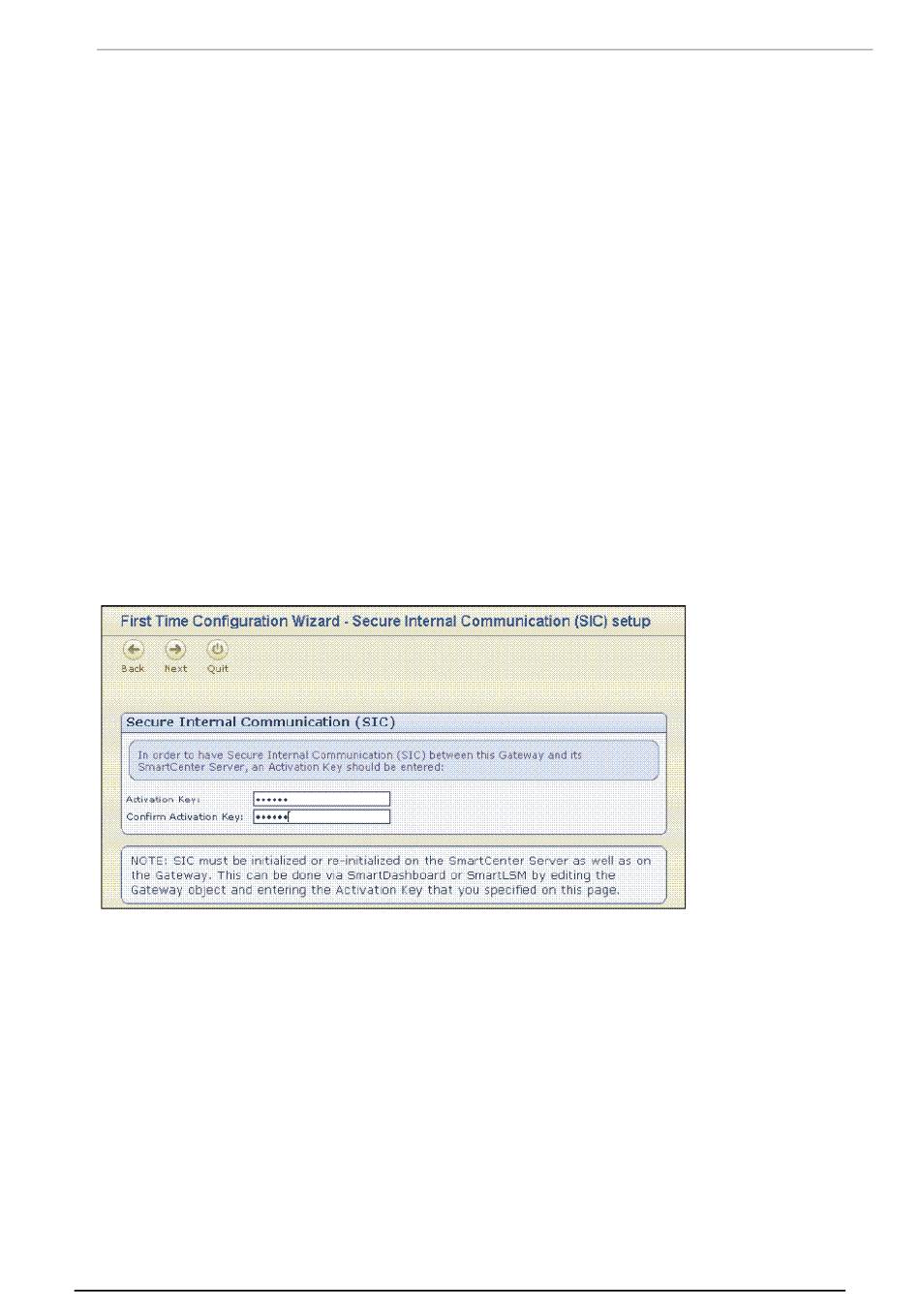

Figure 2-2
Secure Internal Communication
SIC must be initialized or re-initialized on the SmartCenter server as well as on the gateway. In
SmartDashboard, on the General Properties window of the gateway object, enter the activation key
that you specified here.
Click Next.
14. The Summary page appears.
Using the First Time Configuration Wizard
Configuring Power-1 Page 12
