C61

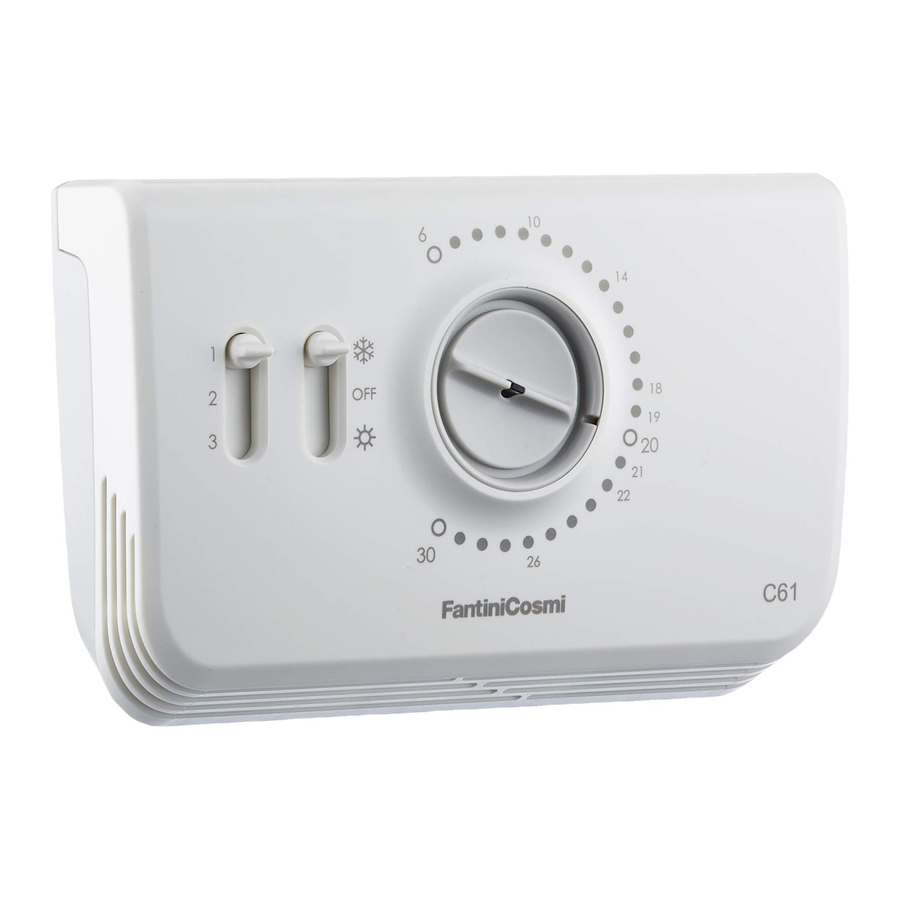

Room thermostat for fan-coils,
1 temperature level, supplied at 230V-50Hz
3-speed electronic room thermostat, suitable for heating and air conditioning installations, for homes and offices.
Temperarure
regulation range
C61
6 ÷ 30 °C
ELECTRICAL FEATURES
Power supply 230V-50Hz.
Consumption 1VA.
Micro disconnection (1B).
Pulse voltage 4000V.
HOMOLOGATION AND STANDARDS
Complies with EN 60730-1 standards and corresponding parts
ErP Class I; 1% (Reg. EU 811/2013 - 813/2013)
36
Differential*
Body admissible
temperature
0,5 K
-10 ÷ 50 °C
Power supply
Contacts
rating
230V-50Hz
6(1,5)A 250Vac
* Differential values are referred to a thermal gradient of 4K/h.
EXAMPLE OF ELECTRICAL WIRING
1
2
Protection
degree
IP20
3
4
5
6
7
8
Advertisement
Table of Contents
Related Manuals for Fantini Cosmi C61
Summary of Contents for Fantini Cosmi C61
- Page 1 Room thermostat for fan-coils, 1 temperature level, supplied at 230V-50Hz 3-speed electronic room thermostat, suitable for heating and air conditioning installations, for homes and offices. Temperarure Differential* Body admissible Power supply Contacts Protection regulation range temperature rating degree 6 ÷ 30 °C 0,5 K -10 ÷...
- Page 2 OPERATION Sensitive element with NTC sensor. The low differential makes the thermostat very sensible, which regulates with high precision the room temperature. C61 has a switch that allows choosing the operation mode. SUMMER (for cooling installations); WINTER (for heating installations);...
