Caster Wheel Assembly - Snapper COMMERCIAL WALK-BEHIND Parts Manual

6
3
2A, 2B
4
3
13
12
11
ITEM
--
--
1A
1B
2A
2B
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
*NOTE: Kit 6-1004 will fit models: PMA360 and PMA8360.
Kit 6-1005 will fit models: PMA8480, PMA520, PMA8610, PMA8520, PMA610 & PMA480.
MANUAL No. 06929

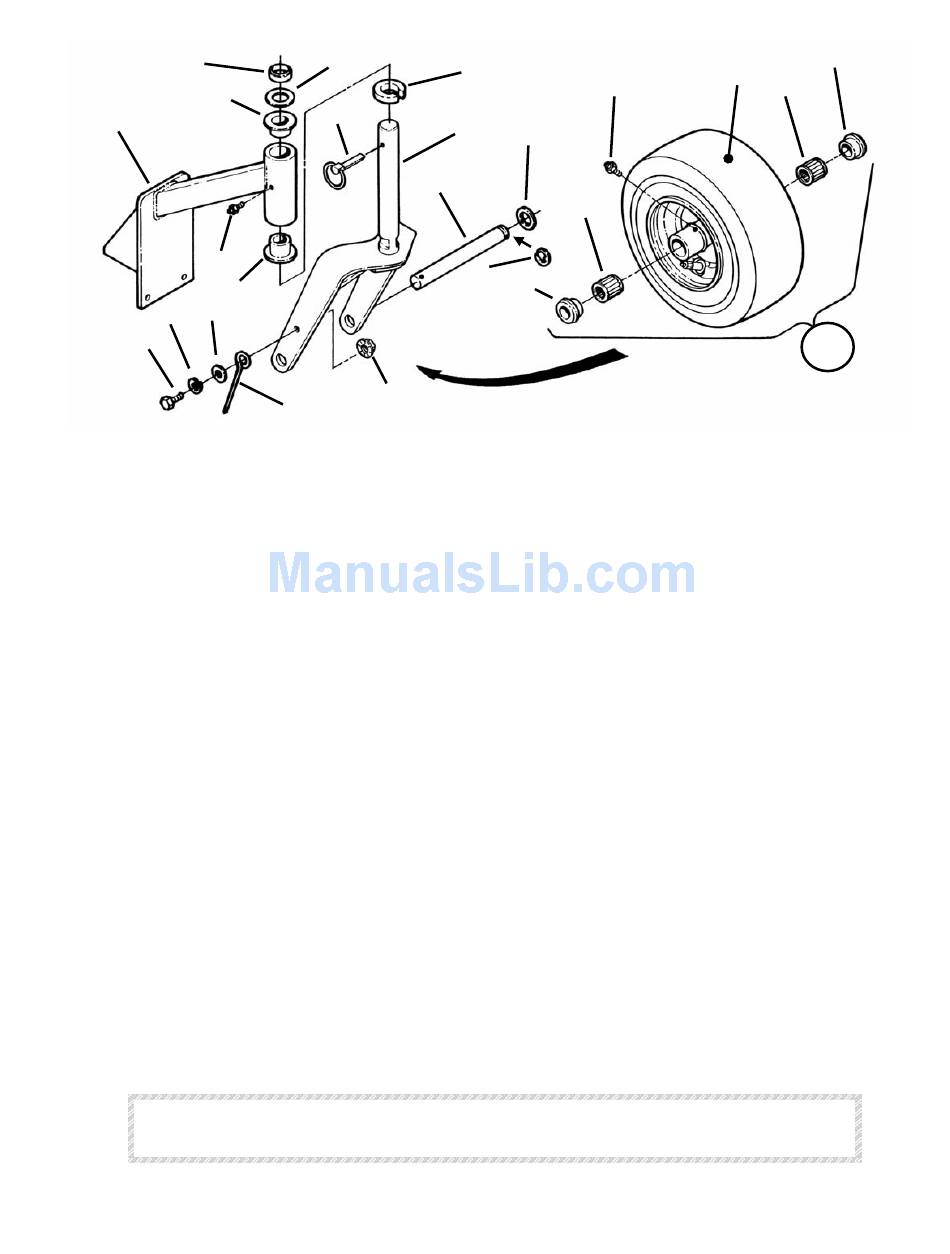

CASTER WHEEL ASSEMBLY

5
9
20
14
PART NO. DESCRIPTION
6-1004* KIT, Caster (36" Deck only) (Incl. items 1A, 2A & 3 thru 22)
6-1005* KIT, Caster (48/52/61" Decks) (Incl. items 1B, 2B & 3 thru 22)
5-2086 ASSEMBLY, Caster (36" Deck only) (Incl. Items 2A, 3 & 4)
5-2084 ASSEMBLY, Caster (48", 52" & 61" Decks) (Incl. Items 2B, 3 & 4)
4-0678 SUPPORT, Caster (36" Deck only) (Incl. Items 3 & 4)
4-9798 SUPPORT, Caster (48", 52' & 61" Decks) (Incl. Items 3 & 4)
2-3556 BUSHING, Flange (2)
7-6998 FITTING, 1/4-28, Straight Lube
2-3747 BUSHING, Machinery, 1"
2-1960 BUSHING
1-9152 SPACER, Caster
4-9805 WELDMENT, Caster Yoke
1-7711 PIN, 7/16" Lynch
9-1050 BUSHING, Machinery, 3/4"
9-0603 SCREW, 3/8-16 x 7/8", Hex Head, Grade 5
9-0118 WASHER, 3/8" Split Lock
9-0517 WASHER, 3/8" Flat
1-9289 MOUNT, caster Axle
1-6460 AXLE, Caster
1-2705 RING, 3/4" External Retaining
5-2085 ASSEMBLY, Wheel & Tire (Incl. Items 18, 19 & 20)
1-7786 BEARING, 3/4" Flange (2)
1-7785 BEARING, 3/4" x 1" Roller 92)
1-7784 TIRE, 4-Ply Smooth Tread
9-0613 NUT, 3/8-16 Hex Flange Lock (2)
9-0563 SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5 (6)
7
8
10
15
19
16
18
COMMERCIAL WALK-BEHIND ACCESSORIES
4
20
19
4
18
17
