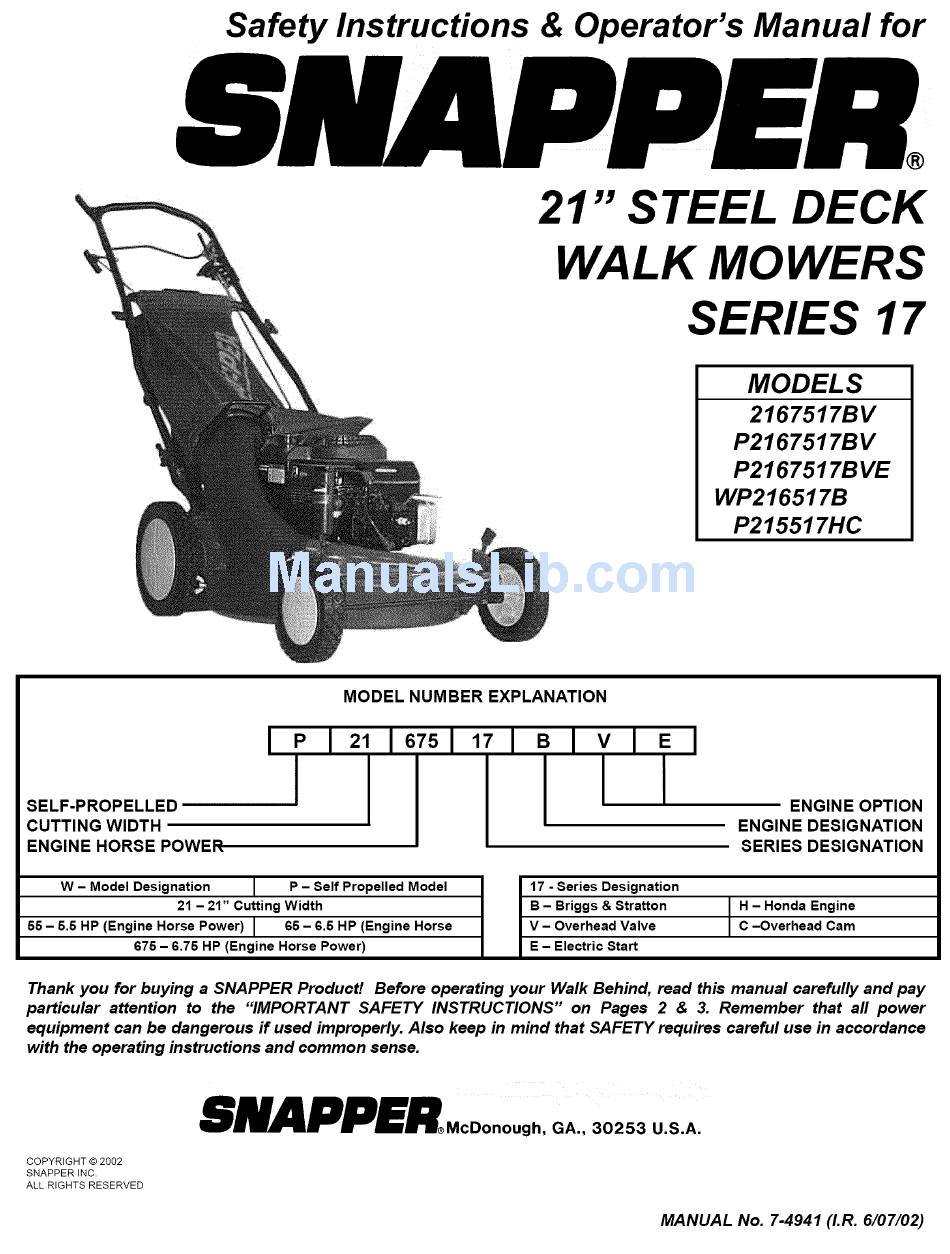

Safety Instructions
& Operator's Manual for
21" STEEL DECK
WALK MOWERS
SERIES 17
MODELS
2167517BV
P2167517BV
P2167517BVE
WP216517B
P215517HC
MODEL NUMBER EXPLANATION
I
P
I 21
SELF-PROPELLED
CUTTING WIDTH
ENGINE HORSE POWER
I 675 I
1TI
BIVIEI
ENGINE OPTION
ENGINE DESIGNATION
SERIES DESIGNATION
W - Model Designation
P - Self Propelled Model
21 - 21" Cutting Width
56 - 6.6 HP (Engine Horse Power)
G5 - G.5 HP (Engine Horse
G75 - G.75 HP (Engine Horse Power)
17 - Series Designation
B - Briggs & Stratton
V - Overhead Valve
E - Electric Start
H - Honda Engine
C -Overhead
Cam
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay
particular attention to the "IMPORTANT
SAFETY INSTRUCTIONS"
on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
8NAPPER.coonou0., o ,..
COPYRIGHT
© 2002
SNAPPER
INC.
ALL RIGHTS RESERVED
MANUAL No. 7-4941 (I.R. 6/07/02)
