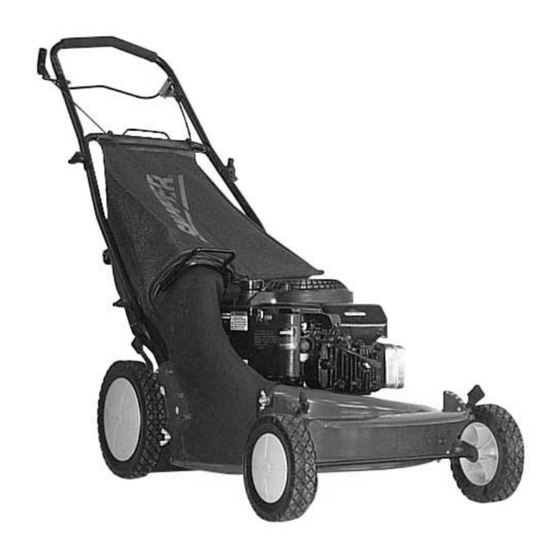

Snapper WMR216517B, WMRP216517B Safety Instructions & Operator's Manual

21” steel deck walk mowers “m” model series 17
Hide thumbs Also See for WMR216517B, WMRP216517B:
Table of Contents

Advertisement

Quick Links

Download this manual
MODEL DESIGNATION
SELF-PROPELLED
CUTTING WIDTH
W – Model Designation
R – Recycling Model
21 – 21" Cutting Width
Thank you for buying a SNAPPER Product! Before operating your Walk Behind, read this manual carefully and pay
particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember that all power
equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in accordance
with the operating instructions and common sense.
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
Safety Instructions & Operator's Manual for
MODEL NUMBER EXPLANATION
W
M
R
M – Model Designation
P – Self Propelled Model
21" STEEL DECK
WALK MOWERS
WMR216517B
P
21
65
17
65 – 6.5 HP (Engine Horse Power)
17 - Series Designation
B – Briggs & Stratton Engine
1
"M" MODEL
SERIES 17
MODELS
PUSH
PROPELLED
MODEL
MODEL
WMRP216517B
B
SERIES DESIGNATION
ENGINE HORSE POWER
MANUAL No. 7-4942 (I.R. 6/07/02)
ENGINE TYPE
