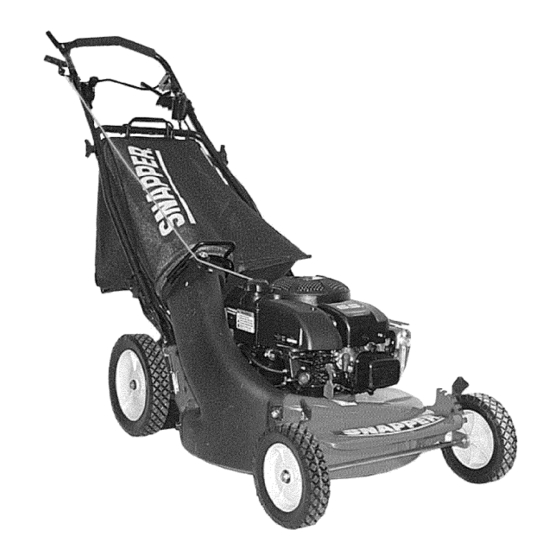

Snapper 216517B Parts Manual

21" steel deck walk behind mowers series 17

Hide thumbs Also See for 216517B:

Operator's manual (32 pages)

Table Of Contents

Table of Contents

Quick Links

Need help?

Do you have a question about the 216517B and is the answer not in the manual?

Questions and answers

Jeffrey L. Chapin

May 16, 2025

Oil capacity for 7.0 engine?

Summary of Contents for Snapper 216517B

Page 1 21" STEEL DECK WALK BEHIND MOWERS COPYRIGHT © 2006 SNAPPER PRODUCTS, INC. ALL RIGHTS RESERVED. Parts Manual for PUSH MODELS 216517B 2167517BV R215517HC R2167517BV McDonough, GA, 30253 U.S.A. Revision 4, 1/16/2006 SERIES 17 PROPELLED MODELS P215517HC P216517B P2167517BV P2167517BVE P217017BV...
Page 3: Table Of Contents
PAGE GROUP HANDLES & CONTROLS CUTTING DECK, BLADES FRONT WHEEL BRACKET SWIVEL CASTER ASSEMBLY REAR WHEEL BRACKETS, LATCHES FRONT WHEELS FRONT WHEELS - SWIVEL MODEL REAR WHEELS DRIVE SYSTEM SELF-PROPELLED PT.1 TRANSMISSION (DIFFERENTIAL) THROTTLE CONTROLS KIT, MUFFLER DEFLECTOR ENGINE SPECIFICATIONS SIDE CHUTE, ADAPTER GRASS BAG ACCESSORY DECALS PT.
Page 4: Handles & Controls
HANDLES & CONTROLS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 5 HANDLES & CONTROLS Item Part No Description 7074254 HANDLE, Upper 7074254 HANDLE, Upper 7036350 HANDLE, Middle- 1990 7046502 HANDLE, Lower Left Hand 7035342 HANDLE, Lower Right Hand 7047011 BAIL, Blade Control 7033904 CLIP, Blade Control 7034872 CLIP, Blade Control 7072933 CABLE, Blade Control (49-1/4”...
Page 6 HANDLES & CONTROLS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 7 HANDLES & CONTROLS Item Part No Description 7079577 SCREW, 1/4-20 x 1-1/2 Hex Head Cap GR5 7090053 WASHER, 1/4” Internal Tooth Lock 7091576 NUT, 1/4-20 Hex GR5 or B 7090505 SCREW, 1/4-20 x 2” Hex Head Cap GR5 7014343 BUSHING 7023792 PIN, 1/4”...
Page 8: Cutting Deck, Blades
CUTTING DECK, BLADES Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 9 CUTTING DECK, BLADES Item Part No Description 7057663 DECK, 21” Mower (“HV” deck w/decals) 7058540 DECK, 21” Mower (Baffle Type deck w/decals) 7057884 DECK, 21” Mower (“M” deck w/decals) 7074949 DECK, 21” Mower (Swivvel wheel "M" deck w/o decals) 7091601 NUT, 5/16-18 Hex Flange Lock, GR5 7090731 BOLT, 5/16-18 x 1/2”...
Page 10 CUTTING DECK, BLADES Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 11 CUTTING DECK, BLADES Item Part No Description 7090228 SCREW, 5/16-24 x 21/32” Machine 7090951 NUT, 5/16-18 Hex Center Lock 7029193 DECAL, Front Baffle 7072426 BAFFLE, Front 7036463 DECAL, Front Baffle 7090316 BOLT, 5/16-18 x 3/4” Carriage, GR5 7090189 WASHER, 5/16” Internal/External Tooth Lock 7024085 WINGNUT, 5/16-18 Nyloc 7091076...
Page 12: Front Wheel Bracket
FRONT WHEEL BRACKET Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 13: Front Wheel Bracket
FRONT WHEEL BRACKET Item Part No Description 7051886 ASSEMBLY, Right Wheel Arm 7051885 ASSEMBLY, Left Wheel Arm 7015761 BOLT, 5/16-18 Hex Washer Face Shoulder 7012325 LATCH, Height 7027702 GRIP, Latch 7031017 ARM, Right Wheel (Round Hole) 7031016 ARM, Left Wheel (Square Hole) 7011791 RETAINER, 5/16”...
Page 14: Swivel Caster Assembly
SWIVEL CASTER ASSEMBLY Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 15 SWIVEL CASTER ASSEMBLY Item Part No Description 7057782 WELDMENT, Front Bracket 7079577 SCREW, 1/4-20 x 1-1/2” Hex Cap 7090372 NUT, 1/4-20 Hex Lock 7072244 BRACKET, Swivel Lock 7046668 SPRING, Torsion 7090505 BOLT, 1/4-20 x 2” Hex 7027344 WASHER, 41/64” Flat 7046628 BUSHING, 5/8”...
Page 16: Rear Wheel Brackets, Latches
REAR WHEEL BRACKETS, LATCHES Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 17 REAR WHEEL BRACKETS, LATCHES Item Part No Description 7012312 BALL BEARING, 9/16” I.D. 7091012 SCREW, #10-32 x 3/8” Hex Washer Self-Tap 7035717 LATCH, Height Adjusting (Long) 7091576 NUT, 1/4-20 Hex 7091601 NUT, 5/16-18 Hex Flange Lock, GR5 7054228 ASSEMBLY, Wheel Arm, Right Rear (Round hole) 7054229 ASSEMBLY, Wheel Arm, Left Rear (Square hole) 7054246...
Page 18: Front Wheels
FRONT WHEELS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 19 FRONT WHEELS Item Part No Description 7022374 WHEEL, 8 x 1.75 Plastic 7029010 WHEEL, 8 x 1.75 Plastic 7090377 NUT, 7/16-20 Hex Center Lock Jam (thin) 7012309 BUSHING, Axle 7031961 WASHER, 7/16 x 1” O.D. Flat 7017829 PLUG, Wheel Footnotes: 21"...
Page 20: Front Wheels - Swivel Model
FRONT WHEELS - SWIVEL MODEL Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 21 FRONT WHEELS - SWIVEL MODEL Item Part No Description 7072243 PIN, Wheel - Stepped .435 DIA x 2.725 Long 7046708 PIN, Swivel Wheel Lock 7046990 WHEEL, 8 x 1.75 Plastic - Gray Footnotes: 21" STEEL DECK WALK BEHIND MOWERS SERIES 17 Note Manual No.
Page 22: Rear Wheels
REAR WHEELS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 23 REAR WHEELS Item Part No Description 7035739 WHEEL, 10 x 1.75” Plastic (Push Models) 7074924 WHEEL, 10 x 1.75” Plastic (Push Models) 7035740 WHEEL, 10 x 1.75” Plastic (Self-Propelled Models) 7029011 WHEEL, 10 x 1.75” Plastic (Self-Propelled Models) 7090377 NUT, 7/16-20 Hex Center Lock Jam 7012309 BUSHING, Axle 7031961...
Page 24: Drive System Self-Propelled Pt.1
DRIVE SYSTEM SELF-PROPELLED PT.1 Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 25 DRIVE SYSTEM SELF-PROPELLED PT.1 Item Part No Description 7012354 BELT, Poly-Vee 7034179 LINK, Differential 7051921 ASSEMBLY, Clutch Idler 7032832 ARM, Clutch Idler 7012124 PULLEY, Idler 7091025 SCREW, 1/4-28 x 1-3/8” Hex Head Cap GR5 7090303 NUT, 1/4-28 Hex Top Lock 7012117 BUSHING, 3/8”...
Page 26 DRIVE SYSTEM SELF-PROPELLED PT.1 Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 27 DRIVE SYSTEM SELF-PROPELLED PT.1 Item Part No Description 7032831 CONNECTOR, Transfer Rod 7091294 WASHER, Flat 1/4" 7017696 BUSHING 7041855 DISC, Driven (Cantilever) 7090053 WASHER, 1/4” Internal Tooth Lock 7013847 RETAINER, 3/8” Bolt 7029025 SPRING, Wheel Drive 7090799 BOLT, 5/16-18 x 5/8” Short Neck Carriage GR5 7052987 ASSEMBLY, Deck Bracket (Incl.
Page 28: Transmission (Differential)
TRANSMISSION (DIFFERENTIAL) Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 29 TRANSMISSION (DIFFERENTIAL) Item Part No Description 7059070 ASSEMBLY, Transmission 7092062 NUT, 5/16-24 Hex Lock, GR C 7092063 WASHER, Cone 7019213 PULLEY, Poly-Vee Belt 7011724 WASHER, Spring 7053942 ASSEMBLY, Right Housing 7029034 HOUSING, Right Side 7014155 SCREW, 5/16-24 x 1-1/8” Rib Neck, GR5 7012314 SEAL, 5/8”...
Page 30: Throttle Controls
THROTTLE CONTROLS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 31 THROTTLE CONTROLS Item Part No Description 7029036 CONTROL, Throttle (48” long) 7074829 CONTROL, Throttle (46” long) 7075711 CONTROL, Throttle (46-3/16” long) 7075712 CONTROL, Throttle (49-13/16” long) Footnotes: Measure cable on mower before ordering. 21" STEEL DECK WALK BEHIND MOWERS SERIES 17 Note used on Briggs 4 Cycle used on Honda 4 Cycle...
Page 32: Kit, Muffler Deflector
KIT, MUFFLER DEFLECTOR Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 33 KIT, MUFFLER DEFLECTOR Item Part No Description 7063302 KIT, Muffler Deflector (Includes below 3 items) 7075292 DEFLECTOR, Comp. Muffler 7075293 CAP, Muffler 7075294 SCREW, Tapping Footnotes: 21" STEEL DECK WALK BEHIND MOWERS SERIES 17 Note used on Honda Model Honda # 18430-ZL8-000 Honda # 18348-ZL8-000 Honda # 90055-ZE1-000 Manual No.
Page 34: Engine Specifications
ENGINE SPECIFICATIONS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 35 ENGINE SPECIFICATIONS Item Part No Description ENGINE, 5.5 HP Honda, Recoil ENGINE, 6.5 HP B&S, Recoil ENGINE, 6.75 HP B&S, Recoil ENGINE, 6.75 HP B&S, Recoil ENGINE, 6.75 HP B&S, Electric Start ENGINE, 6.75 HP B&S, Recoil ENGINE, 6.75 HP B&S, Recoil ENGINE, 7 HP B&S, Electric Start ENGINE, 7 HP B&S, Recoil ENGINE, 7 HP B&S, Recoil...
Page 36: Side Chute, Adapter
SIDE CHUTE, ADAPTER Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 37 SIDE CHUTE, ADAPTER Item Part No Description 7051951 ASSY, Bag Adapter & Cover (Incl 8 items below) 7016107 ADAPTER, Grass Bag 7019287 COVER, Bag Adapter 7023000 HINGE, Chute Cover 7091064 BOLT, 1/4-20 x 1/2” Short Neck Carriage GR5 7090053 WASHER, 1/4” Internal Tooth Lock 7091576 NUT, 1/4-20 Hex 7032661...
Page 38: Grass Bag Accessory
GRASS BAG ACCESSORY Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 39 GRASS BAG ACCESSORY Item Part No Description 7061919 KIT, Grass Bag Catcher 7059322 ASSEMBLY, Grass Bag (Includes 2 thru 4) 7074425 BAG, Door Type (Black w/Gold Letters) (12” Wide) 7075765 BAG, Door Type (Black w/Gray Letters) (12” Wide) 7051906 ASSEMBLY, Bag Wire (12” Wide) 7042489 CONNECTOR, Grass Bag (weldment) 7016050...
Page 40: Decals Pt. 1
DECALS PT. 1 Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 41 DECALS PT. 1 Item Part No Description 7024211 DECAL, Blade Control 7024087 DECAL, Speed Select 7013010 DECAL, Danger, Cut Finger 7029779 DECAL, Spark Plug International Symbol 7074135 DECAL, Noise (European) 7073433 DECAL, 2001 Year of Manufacture 7074548 DECAL, 2002 Year of Manufacture 7075378 DECAL, 2003 Year of Manufacture 7029470...
Page 42: Decals Pt. 2
DECALS PT. 2 Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 43 DECALS PT. 2 Item Part No Description 7073462 DECAL, Caution Symbols 7029057 DECAL, Medallion 7073335 DECAL, OPEI 7074386 DECAL, SNAPPER (Commercial) 7075618 DECAL, SNAPPER 7041942 DECAL, Shift Warning 7016134 DECAL, Caution Tag 7075619 DECAL, Ninja 7075750 DECAL, Hi-Vac Footnotes: 21" STEEL DECK WALK BEHIND MOWERS...
Page 44: Snapperizer Accessory
SNAPPERIZER ACCESSORY Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 45 SNAPPERIZER ACCESSORY Item Part No Description 7060440 KIT, Snapperizer (Incl. items 1 & 2 thru 5) 7063041 KIT, Snapperizer (Incl. items 1 & 2A thru 5) 7051243 SCREEN, Fastener Assembly 7039759 RING, Bottom (21.77” Inside Diameter) 7072002 RING, Bottom (22.60” Inside Diameter) 7091297 NUT, 5/16-24 Hex, GR5 7090187...
Page 46: Thatcherizer Accessory
THATCHERIZER ACCESSORY Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 47: Thatcherizer Accessory
THATCHERIZER ACCESSORY Item Part No Description 7061256 KIT, Thatcherizer (Incl. items 1 thru 27) 7032891 LATCH, Frame Attachment 7026572 BAR, Mount (Right Hand) 7026573 BAR, Mount (Left Hand) 7018499 ROD, Tine 7018700 SUPPORT, Wheel 7019948 TRAY, Tine 7018496 KIT, Tine Thatching Spring 7014100 BUSHING, Wheel Adjuster 7018493...
Page 48: Recycling Kits Accessory
RECYCLING KITS ACCESSORY Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 49: Recycling Kits Accessory
RECYCLING KITS ACCESSORY Item Part No Description 7061200 KIT, Recycling Cover (Includes the 2 items below) 7061201 KIT, Recycling Plug (Incl. items 1 & 2 below) 7029149 COVER, 21” Deck 7016814 PLUG, Chute Adapter 7026407 BLADE, 21” Quad Edge Ninja Footnotes: 21"...
Page 50: Electric Start Components
ELECTRIC START COMPONENTS Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 51: Electric Start Components
ELECTRIC START COMPONENTS Item Part No Description 7067012 KIT, Battery (Includes 4 items below) 7067012 BATTERY, 12 Volt, 35 CCA 7015488 HARNESS, Battery 7043977 SCREW, #10-24 x 1/2” Pan Head Machine 7090932 NUT, #10-24 Square 7058120 ASSEMBLY, Switch/Bracket (Incl items 5 thru 10) 7011138 KEY (Set of Two) 7023506...
Page 52: Wiring Schematic
WIRING SCHEMATIC Manual No. 7006136 21" STEEL DECK WALK BEHIND MOWERS TP 400-5002-4-WB-N SERIES 17...
Page 53 WIRING SCHEMATIC Item Part No Description WIRING SCHEMATIC FOR BRIGGS & STRATTON ELECTRIC STARE ENGINE Footnotes: 21" STEEL DECK WALK BEHIND MOWERS SERIES 17 Note Manual No. 7006136 TP 400-5002-4-WB-N...
Page 56 Parts Manual for 21" STEEL DECK WALK BEHIND MOWERS SERIES 17 IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.
