  • Page 1 Wall fan/Väggfläkt Installation instructions 200529-EN_GB Document in original language 06-11-2015 A002...
  • Page 2: Table Of Contents

    Contents 1 English............................1 1.1 Declaration of Conformity....................1 1.2 Design ..........................2 1.3 Motor protection ....................... 2 1.4 Maintenance ........................2 1.5 If the fan stops ......................... 2 1.6 Assembly......................... 3 2 Svenska ............................ 4 2.1 Försäkran om överensstämmelse..................4 2.2 Utförande.........................
  • Page 3: English

    Manufacturer Systemair Sverige AB Industrivägen 3 · SE-739 30 Skinnskatteberg SWEDEN Office: +46 222 440 00 Fax: +46 222 440 99 · www.systemair.com hereby confirms that the following products: Wall fan RVF AC/EC (The declaration applies only to product in the condition it was delivered in and installed in the facility in accordance with the included installation instructions.
  • Page 4: Design

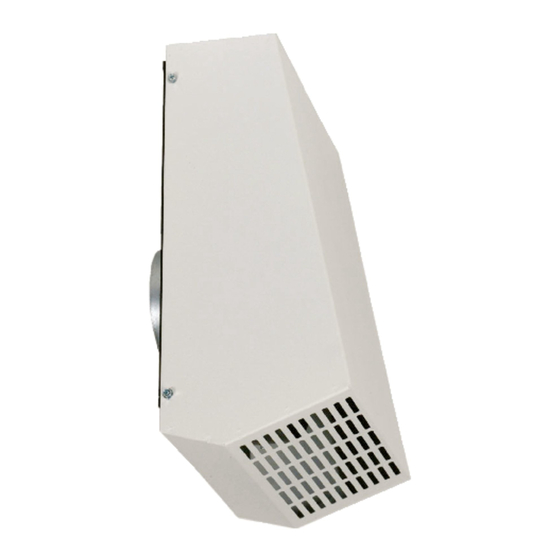

    1.2 Design RVF is an exhaust fan meant for outside wall mounting. It has an asynchronous external rotor motor with backward curved impellers and sealed ball bearings. The cover is made of galvanized steel sheet, powder coated white. 1.3 Motor protection Motor protection is integrated in the electronics of the motor.
  • Page 5: Assembly

    Assembly the fan onto the wall and replace the cover. The electric installation (permanent assembly) must be carried out by a qualified electrician. The fan must be preceded by an all-pole switch with at least 3 mm breaking gap. Installation instructions Systemair Sverige AB 200529...
  • Page 6: Svenska

    Tillverkare Systemair Sverige AB Industrivägen 3 · SE-739 30 Skinnskatteberg SVERIGE Tel: 0222 440 00 Fax: 0222 440 99 · www.systemair.com intygar härmed att följande produkter: Väggfläkt RVF AC/EC (Intyget gäller endast för produkten i det skick i vilket den levererats och installerats vid anläggningen i enlighet med medföljande installationsanvisningar.
  • Page 7: Utförande

    2.2 Utförande RVF är en frånluftsfläkt som ska monteras på husets yttervägg. Fläkten har en kortsluten asynkronmotor av ytterrotortyp med bakåtböjda skovlar och kapslade kullager. Den är försedd med en skyddande kåpa av pulverlackerad galvaniserad plåt. 2.3 Motorskydd Motorskydd är integrerat i motorns elektronik. Om motorn blir överhettad stannar motorn automatiskt tills den har kylts ner.
  • Page 8: Montering

    För in kanalen och elkabeln från utsidan av väggen. Montera fast fläkten på väggen med skruvarna och sätt tillbaka fläktkåpan. Så kallad fast elinstallation får endast utföras av behörig installatör. Fläkten måste föregås av en allpolig brytare med minst 3 mm brytaravstånd. Installation instructions Systemair Sverige AB 200529...
  • Page 9: Performance/Prestanda

    3 Performance/Prestanda RVF AC RVF EC 4 Wiring/Elschema RVF 100 AC RVF 100 EC Installation instructions Systemair Sverige AB 200529...
  • Page 10 Systemair Sverige AB reserves the right to make changes and improvements to the contents of this manual without prior notice. Systemair Sverige AB Industrivägen 3 SE-739 30 Skinnskatteberg, Sweden Phone +46 222 440 00 Fax +46 222 440 99 www.systemair.com...
