BEFORE USING
If the battery is not correctly placed
in the compartment, the handset
will not turn on and/or the battery
may detach during use.

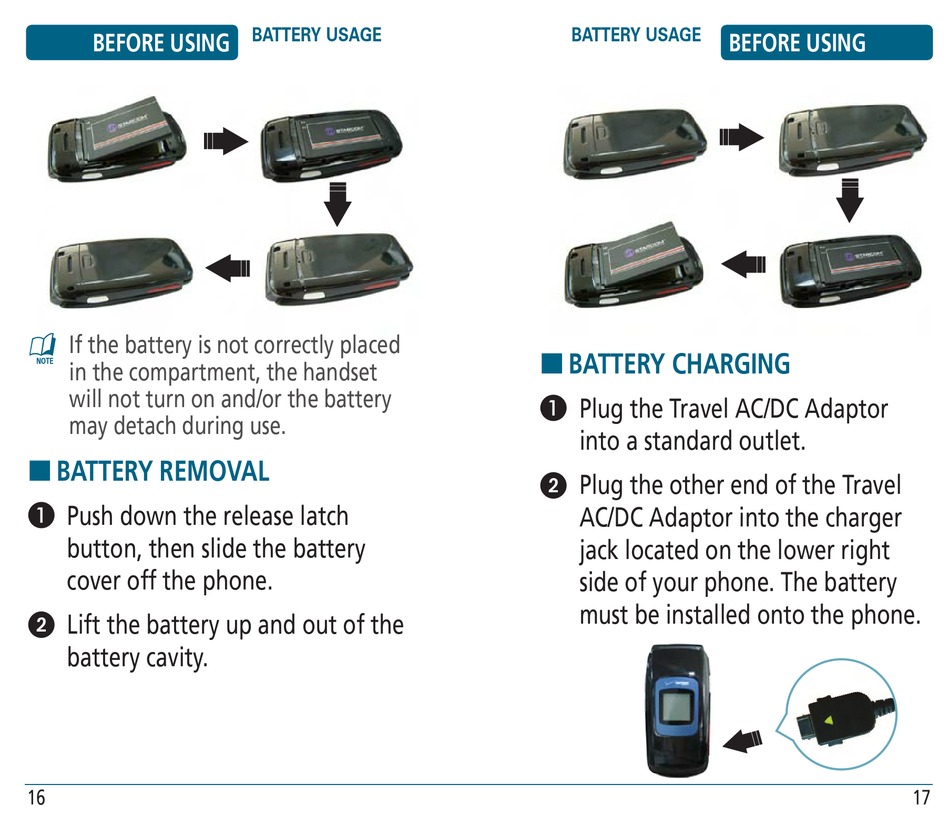

H BATTERY REMOVAL
 Push down the release latch
button, then slide the battery
cover off the phone.
 Lift the battery up and out of the
battery cavity.
16
BATTERY USAGE BATTERY USAGE
H BATTERY CHARGING
 Plug the Travel AC/DC Adaptor
into a standard outlet.
 Plug the other end of the Travel
AC/DC Adaptor into the charger
jack located on the lower right
side of your phone. The battery
must be installed onto the phone.
BEFORE USING
17
