- Page 1 AUDIO ANALOGUE puccini SETTANTA INTEGRATED AMPLIFIER REV2.0 OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev.2.1...
- Page 3 Dear Audiophile, Congratulations and thank you for choosing Puccini Settanta. You’re now the owner of a unit that establishes a new reference in the category of high-quality and high-versatility stereophonic products. Puccini Settanta provides circuital solutions with no compromises and features capable to satisfy advanced users’ demands. Puccini Settanta is an amplifier that provides 70 Watt for each channel and is equipped with 5 line inputs and 1 phono input.
- Page 4 INTRODUCTION AF GROUP SRL does not take any responsibilities in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment as described in this manual are not respected. Whenever damages to the equipment occur because of fixing and modifications made form non-authorized staff or because of normal deterioration of the system.
- Page 5 PREMESSA AF GROUP SRL non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.
-
Page 6: Front Panel Description
Front panel description SELECT. Inputs selector. It allows selecting the desired source. One of the six blue leds on its right indicates the selected source. If you press this button when the unit is in Stand-by mode, it will activate. PH/1,2,3,4,5,6. - Page 7 Back panel description RIGHT SPEAKER OUT. Right speaker out connector. LEFT SPEAKER OUT. Left speaker out connector. EARTH. Record player ground connector (to be used only when phono in is in use) PH/1. Phono in. 2,3,4,5,6. Line inputs. TAPE OUT. Tape out. MONO OUT.
- Page 8 Remote AMP functions To use the remote with the Integrate Amplifier you have to select the AMP mode on the remote. For such purpose simply push the switch on the remote. To check the remote mode just shake the remote and see if the switch at the top right of the remote lights is on.
- Page 9 Where to place Puccini Settanta Puccini Settanta is a complex unit that may generate a large quantity of heat. Please locate the unit in a well-ventilated place. In particular, you should leave at least 5cm around and above the unit and avoid placing it close to heat sources (radiators, heaters, amplifiers, television sets).
- Page 10 A) Connection with one source: example Paganini 192/24. A) Collegamento con una sorgente: esempio Paganini 192/24. PRight Channel PLeft Channel settanta settanta Back View / Visuale Posteriore Left Out Right Out Paganini 192/24 PUCCINI settanta SUBWOOFER settanta B) Connection of an Active SUBWOOFER B) Collegamento di un SUBWOOFER Attivo C) Use of Bypass modality: Connection to PreAmplifier + Source (example: Bellini + Paganini 192/24) C) Utilizzo della modalità...
- Page 11 D) Use of Bypass modality: example of connection to a system HomeTheatre 5.1 D) Utilizzo della modalità Bypass: esempio collegamento ad un impianto HomeTheatre 5.1 Video Screen FL: Front left FR: Front Right LS: Left Surround RS: Right Surround C: Central S: Subwoofer PLeft Surround Subwoofer...
- Page 12 Phono MM/MC switchover As said earlier the Puccini Settanta has a phono stage that interfaces both MM and MC cartridges. It is factory preset to MM, so if switchover to MC is necessary, see the illustration for the correct jumper position. The Puccini Settanta has a Earth connection placed in the back panel.
-
Page 13: Inputs Selection

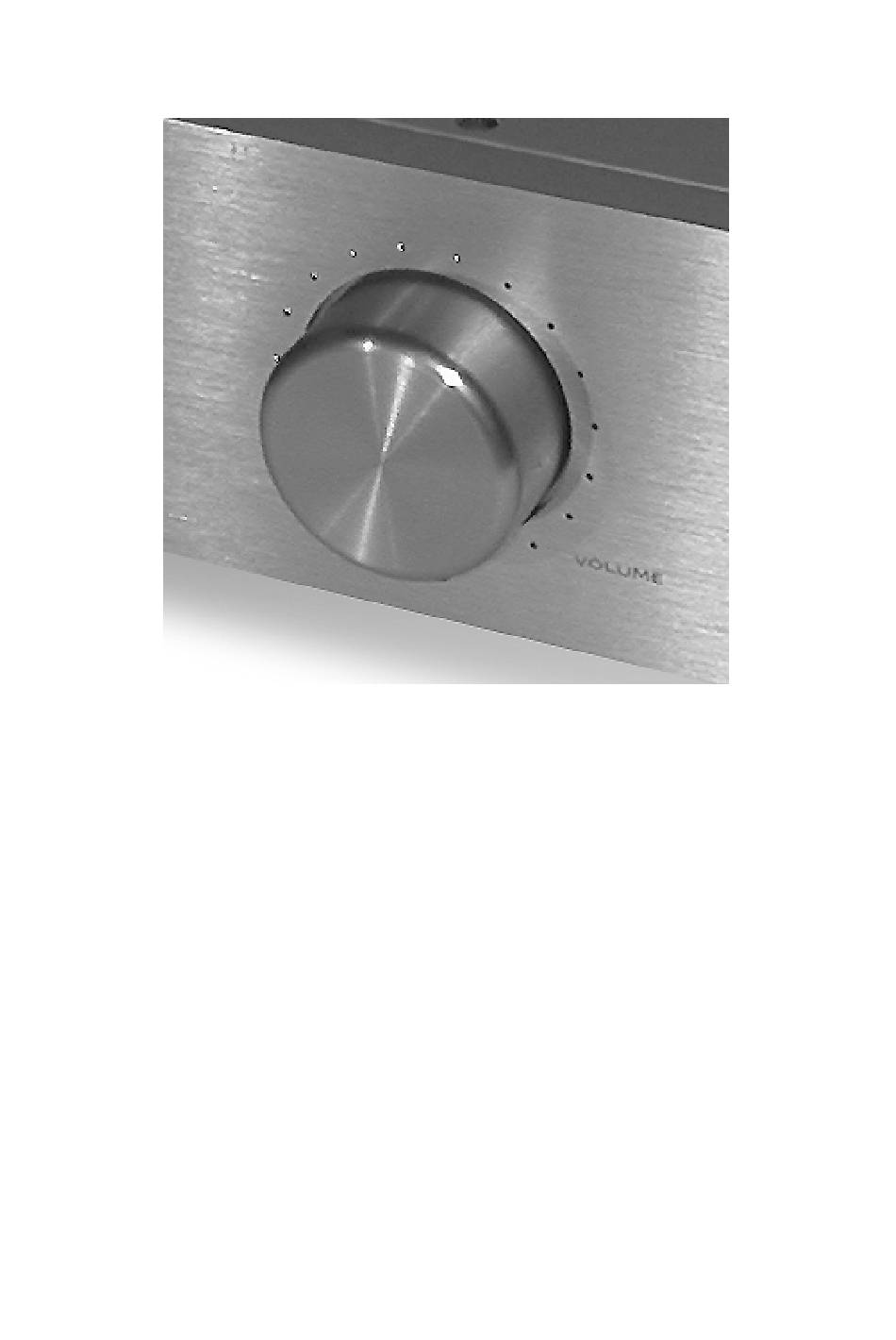

You can put the unit in standby mode pressing either the “STBY” button on the remote controller or turning left the volume knob on the front panel and holding it in this position for a few seconds until all the volume leds are off. When Puccini Settanta is in standby mode, only the microcontroller section is powered while signal and power circuits are turned off, reducing power consumption and minimizing damage risks. - Page 14 Specifications Parameter Measurement conditions Value Channels: LOAD:8Ohm 70W@0.07%THD+N POWER LOAD:4Ohm 125W@0.4%THD+N Line gain 20Hz-20kHz 12dB Attenuation –0dB <10Hz - 140kHz +0/-3dB Frequency response: Attenuation –20dB <10Hz - 140kHz +0/-3dB Attenuation –40dB <10Hz - 140kHz +0/-3dB Attenuation 0dB Noise level: -100dB output under 1Vrms Band limits 0Hz-48kHz Signal/noise ratio: 22Hz-22kHz...
-
Page 15: Troubleshooting
Low volume Turn volume knob right Faulty or incorrectly plugged signal connectors between Puccini Settanta and Check cords and their connection the sources Only one in led is on Check if the source is on and active and if... - Page 16 Sorgente spenta o non selezionata attiva, e che sia selezionata correttamente Nessun suono correttamente con il selettore degli ingressi Cavi di potenza tra Puccini Settanta e Controllare lo stato dei cavi e/o la corretta diffusori non connessi correttamente connessione oppure difettosi Led dell’ingresso selezionato acceso, il...
-
Page 17: Information On Disposal For Users (Private Households)
Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and apparecchiature elettriche ed elettroniche insieme ai small amounts) might be taken back by your local collection facilities. normali rifiuti domestici. Per tali prodotti è previsto un sistema di raccolta a parte. - Page 20 Audio Analogue Distributed by: AF GROUP srl www.audioanalogue.com afgroupsrl@audioanalogue.com...
