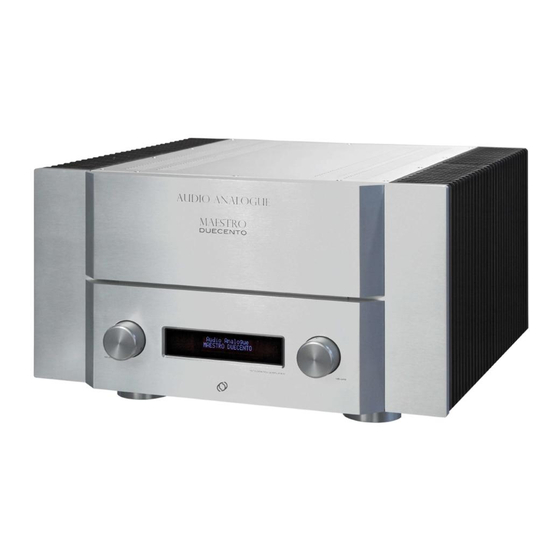

Audio analogue maestro duecento stereo power amplifier
Hide thumbs Also See for Maestro Duecento:

Advertisement

Quick Links

Download this manual See also: Owner's Manual

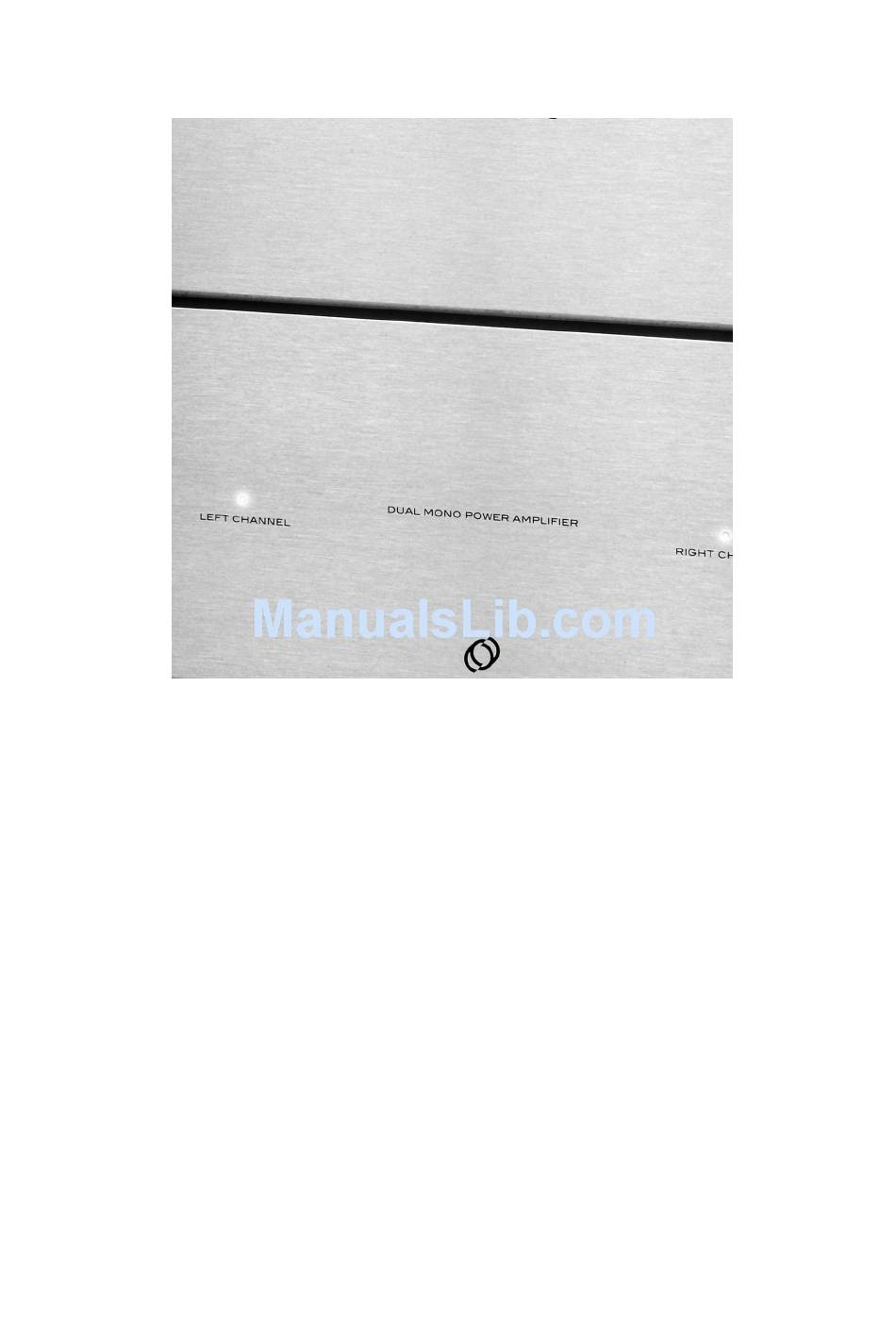

AUDIO ANALOGUE
MAESTRO
DUECENTO
STEREO POWER AMPLIFIER
OWNER'S MANUAL
MANUALE D'ISTRUZIONI
Manual rev.1.2a

Advertisement

loading
Need help?

Need help?

Do you have a question about the Maestro Duecento and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audio Analogue Maestro Duecento

Summary of Contents for Audio Analogue Maestro Duecento

  • Page 1 AUDIO ANALOGUE MAESTRO DUECENTO STEREO POWER AMPLIFIER OWNER’S MANUAL MANUALE D’ISTRUZIONI Manual rev.1.2a...
  • Page 3 AUDIO ANALOGUE. The information contained in this manual is related to the data kept by AUDIO ANALOGUE at the moment of the issue of this publication; AUDIO ANALOGUE has the right to make changes to this document without notice.
  • Page 4 Nessuna parte del presente manuale può essere riprodotta con alcun mezzo, trasmessa o copiata per usi pubblici e/o privati senza la previa autorizzazione di AUDIO ANALOGUE. Le informazioni contenute nel presente manuale sono relative ai dati in possesso di AUDIO ANALOGUE al momento della pubblicazione; AUDIO ANALOGUE si riserva il diritto di apportare cambiamenti al presente documento senza alcun preavviso.

  • Page 5: Caratteristiche Costruttive

    MAESTRO DUECENTO, a dual-mono design, provides circuital solutions with no compromises and features capable to satisfy the most demanding user. The MAESTRO DUECENTO delivers 200 Watt in a 8 Ohm load. This power doubles every halving of the load up to 2 Ohm. It’s equipped with 2 unbalanced input and 2 balanced inputs with selectable configuration. It has been designed with high-performance circuits solutions and high precision passive devices such as military resistors or double-side metallized polypropylene plastic film capacitors.

  • Page 6: Pannello Frontale

    Front panel STAND-BY BUTTON It’s located under the front panel. Pushed for 3 seconds turns on the amplifier. Pushed again shut it off immediately. STATUS LED This LED is “low intensity red” when the left amplifier is off. It’s “bright red” when the left power amplifier is turning on.
  • Page 7 unbalanced balanced Back panel RIGHT SPEAKER OUT: Right speaker out connector. LEFT SPEAKER OUT: Left speaker out connector. LEFT INPUT: Unbalanced line left input. RIGHT INPUT: Unbalanced line right input. LEFT BALANCED INPUT: Balanced line left input RIGHT BALANCED INPUT: Balanced line right input SWITCH: Select balanced or unbalanced inputs.
  • Page 8 Where to place the MAESTRO DUECENTO power amplifier MAESTRO DUECENTO is a high power unit. After some hours of high volume operation the unit temperature can raise up to 45- 50°C, be careful! Please locate the unit in a well-ventilated place. In particular, you should leave at least 5 cm around and above the unit and avoid placing it close to heat sources (radiators, heaters, amplifiers, television sets).

  • Page 9: Specifications

    Powering up the MAESTRO DUECENTO When you set the rear switch of MAESTRO DUECENTO in the position “1”, the unit turns on in the STANDBY mode. When the front button is kept pressed for at least three seconds, the amplifier turns on. The amplifier will powers up about in ten seconds. During power up the protection circuit check the status of the power lines and the absence of a DC voltage on the speaker outputs;...

  • Page 10: Troubleshooting

    Turn off the rear switch, wait 5 seconds operation than turn ON again. Internal Failure Contact your Audio Analogue retailer If the suggested remedies should not work or the problem is not shown in the list above, please contact your local Audio Analogue retailer. Ricerca Guasti...
  • Page 11 If this product is used for business purposes and you want to discard it: Attenzione: il dispositivo è contrassegnato da questo Please contact your Audio Analogue dealer who will inform you about the take-back and recycling. Small products (and simbolo,...
  • Page 12 Audio Analogue Manufactured and Distributed by: AUDIO FUTURA spa Via Maestri Del Lavoro 583 51015 Monsummano Terme (PT) Italy Tel. 0572 954513 fax 0572 958099 www.audioanalogue.com - info@audioanalogue.com...
