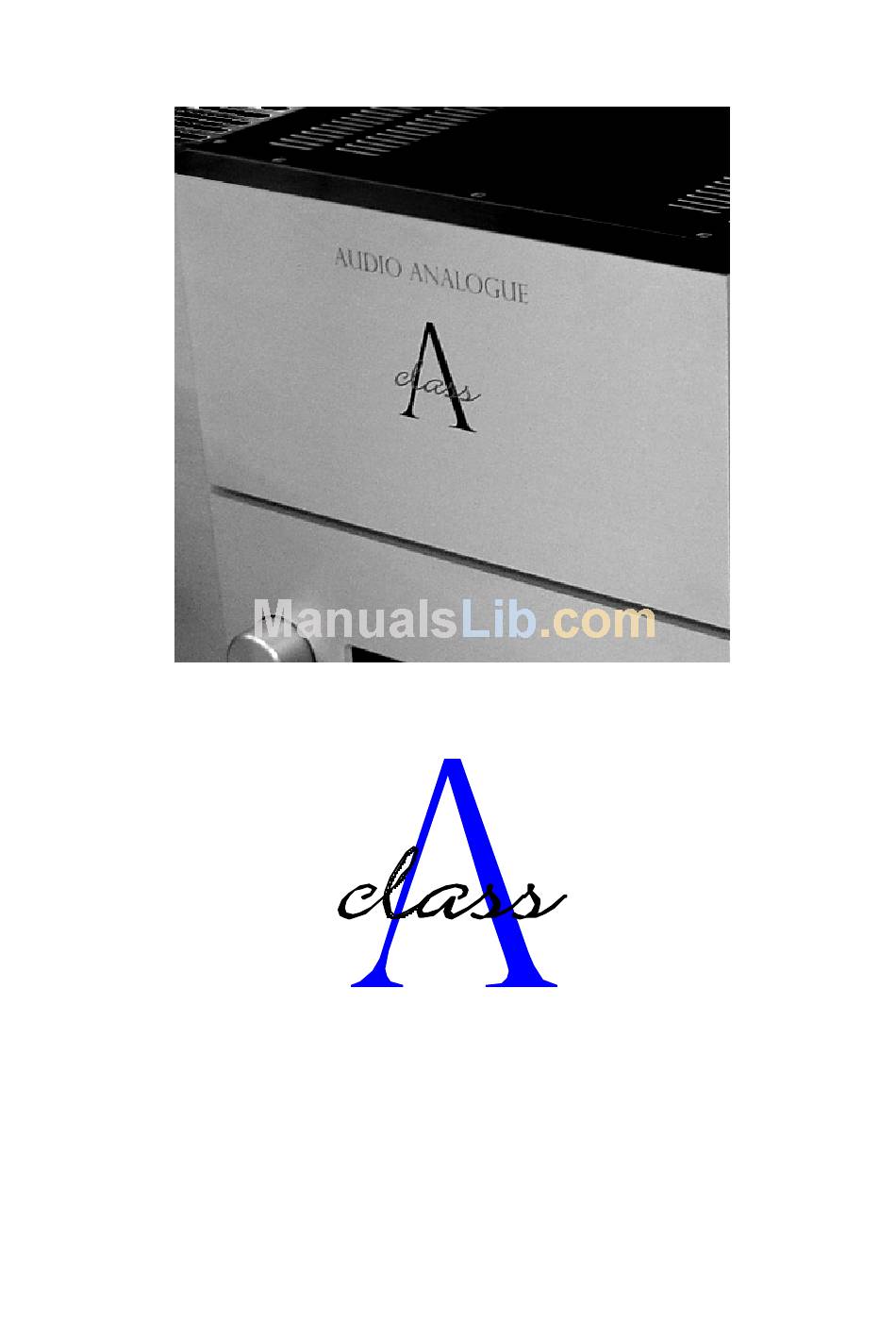

- Page 1 AUDIO ANALOGUE INTEGRATED AMPLIFIER OWNER’S MANUAL MANUALE D’ISTRUZIONI...
- Page 2 INTRODUCTION AUDIO ANALOGUE does not take any responsibilities in the following cases: Whenever the operational procedures related to the use and the maintenance of the equipment, as described in this manual, are not respected. Whenever damages to the equipment occur because of fixing or modifications made from non-authorized staff or because of normal deterioration of the system.
- Page 3 PREMESSA AUDIO ANALOGUE non accetta responsabilità nei casi in cui: Le procedure operative di utilizzo e manutenzione dell’apparato descritte nel manuale non siano rispettate. I danni si verifichino in seguito a riparazioni o modifiche dell’apparato eseguite da personale non autorizzato o a seguito di normale deterioramento dell’apparato.
- Page 4 Dear Audiophile, congratulations and thank you for choosing the Audio Analogue Class A integrated amplifier. You’re now the owner of a unit that establishes a new reference in the category of high-quality and high-versatility stereophonic products. The Class A, a dual-mono design, provides circuital solutions with no compromises and features capable to satisfy the most demanding user.
- Page 5 Front panel • SELECT ( 1 ). Inputs selector. It allows selecting the desired source. The selected input is shown in the central display. • VOLUME ( 2 ). Volume control. Rotate it clockwise to increase the volume; counterclockwise to decrease it. The volume level is shown in the central display.
- Page 6 Back panel • RIGHT SPEAKER OUT: Right speaker out connector. • LEFT SPEAKER OUT: Left speaker out connector. • TAPE OUT: Tape output. • INPUT 1,2,3,4,5: Unbalanced line inputs. • BALANCED INPUT 6: Balanced line input. • AC MAINS: Connect here the provided power cord. •...
- Page 8 Remote control • STBY. Standby. Activates/deactivates standby mode. • VOL+/VOL-. Volume setting. • MUTE. Activates/deactivates muting. When muting is activated, volume level is reduced to zero level. When deactivated the volume level is increased, in some seconds, to the level set before the muting •...
- Page 9 Unpacking and checking Class A package Carefully open the package to avoid damaging the content. The package should contain: • 1 Class A integrated amplifier. • 1 remote control. • 1 power cord. • 2 AAA batteries (already placed in the remote control). •...
- Page 10 Powering up Class A When you set the rear switch of Class A in the position “1”, the unit turns on in the STANDBY mode. When the front button is kept pressed for at least three seconds or when the “STBY” button on the remote control is pressed, the amplifier turns on. The amplifier will powers up about in ten seconds.
-
Page 11: Specifications
Set-up Class A is provided with a set-up function for activating/deactivating the line 5 by-pass and to change the balance between right and left channel. Set-up is easy to configure. When you press the “SET” button on the remote control, you enter in a menu that you can roll pressing the “IN+/IN-“... - Page 12 Specifiche Tecniche Parametro Numero di canali: Potenza: Distorsione armonica totale: Sensibilità: Tempo di salita: Slew rate Risposta in frequenza: Rapporto Segnale/Rumore: Tensioni utilizzabili: Consumo Peso Troubleshooting Symptom No display on No sound Error message after power ON Recording is impossible Remote control doesn’t work If the suggested remedies should not work or the problem is not shown in the list above, please contact your local Audio Analogue retailer.
- Page 13 Ricerca Guasti Sintomo Display Spento Nessun Suono Messaggio di errore all’accensione La registrazione è impossibile Il telecomando non funziona Se i rimedi suggeriti non dovessero funzionare oppure il problema non è riportato nella lista, contattate il vostro rivenditore Audio Analogue. Audio analogue Head Office Ufficio commerciale: Via Maestri Del Lavoro, 583- 51015 Monsummano Terme (PT) Italy...
