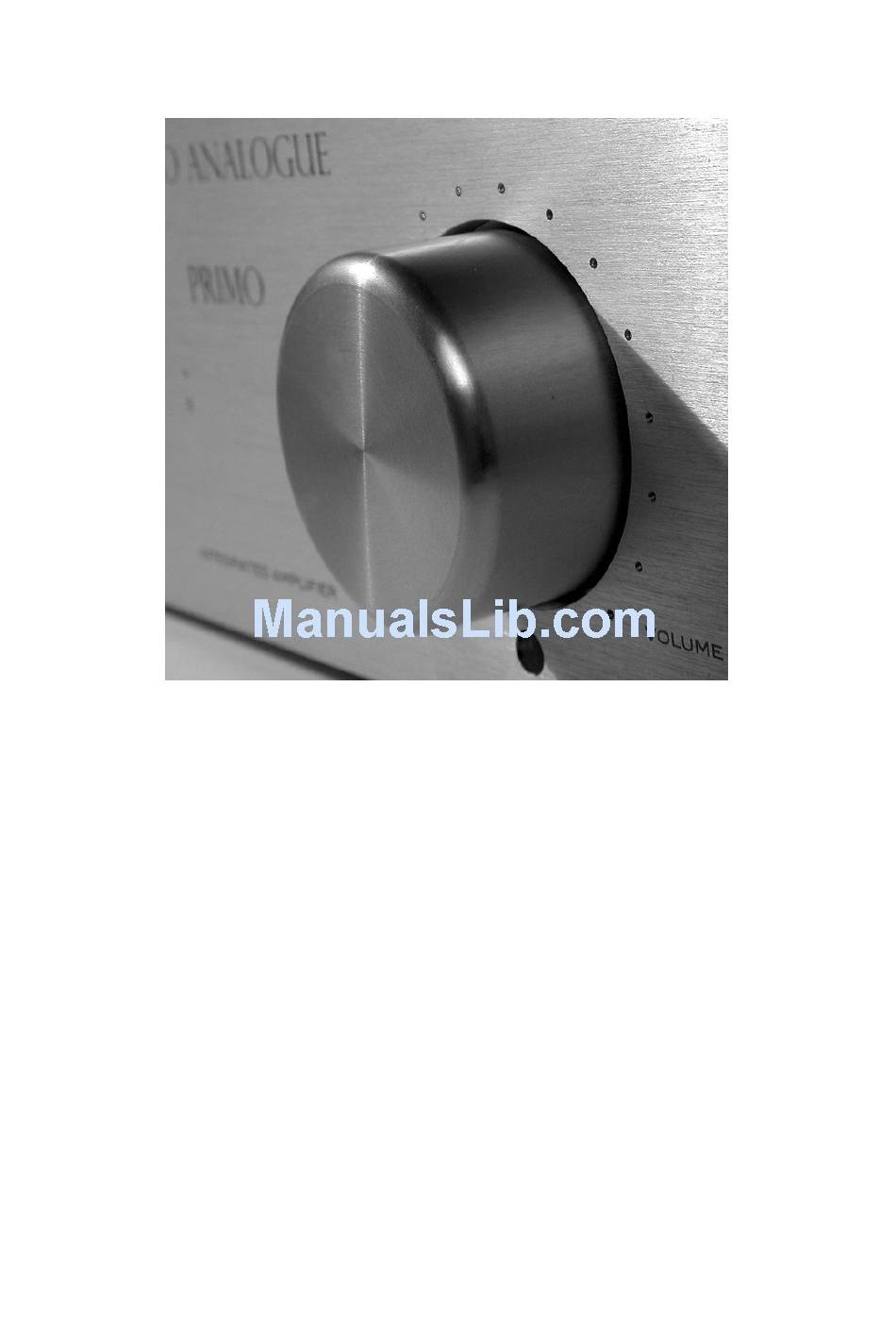

- Page 1 AUDIO ANALOGUE PRIMO INTEGRATED AMPLIFIER OWNER’S MANUAL MANUALE D’ISTRUZIONI...
- Page 3 Dear Audiophile, Congratulations and thank you for choosing Primo Settanta. You’re now the owner of a unit that establishes a new reference in the category of high-quality and high-versatility stereophonic products. Primo Settanta provides circuital solutions with no compromises and features capable to satisfy advanced users’ demands. Primo Settanta is a 70 Watt channels amplifier with line inputs and optional phono stage, high-performance circuits with wide bandwidth and low feedback, separated circuit sections for each channel, linear analogic power supply with a toroidal transformer and five different stabilizing sections, high-quality passive components, integrated-resistor network volume controls with no buffer for maximum sound transparency.
- Page 4 AUDIO ANALOGUE. The information contained in this manual is related to the data kept by AUDIO ANALOGUE at the moment of the issue o f this publication; AUDIO ANALOGUE has the right to make changes to this document without prior notice.
- Page 5 Nessuna parte del presente manuale può essere riprodotta con alcun mezzo, trasmessa o copiata per usi pubblici e/o privati senza la previa autorizzazione di AUDIO ANALOGUE. Le informazioni contenute nel presente manuale sono relative ai dati in possesso di AUDIO ANALOGUE al momento della pubblicazione; AUDIO ANALOGUE si riserva il diritto di apportare cambiamenti al presente documento senza alcun preavviso.

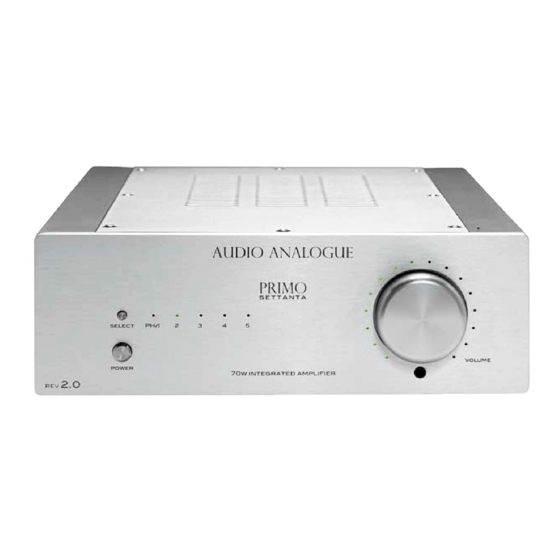

- Page 6 Front panel 1) POWER. By pushing this button the unit is turned on/off. 2) SELECT. Inputs selector. It allows selecting the desired source. One of the green leds on its right indicates the selected source. 3) PH/1,2,3,4,5. Green leds that indicate the selected input. In 1 may be used as phono input thanks to the optional board. A fix light indicates the selected source and the normal operative status of the unit, while a blinking light indicates that the unit is in the mute mode.
- Page 7 Back panel RIGHT SPEAKER OUT. Right speaker out connector. LEFT SPEAKER OUT. Left speaker out connector. EARTH. Turntable ground connector (to be used only when phono input is in use) PH/1. Phono/line input, configurable from set-up. 2,3,4,5. Line input. TAPE OUT. Tape out. Power cord.
- Page 8 Remote controller – Amplifier section • VOL+/VOL-. Volume setting. • MUTE. Activates/deactivates muting. • IN+/IN-. Inputs selector. Descrizione del telecomando – sezione AMPLIFIER • “VOL+/VOL-“. Regolazione del volume. • “MUTE”. Attiva e disattiva il mute. • “IN+/IN-“. Seleziona la sorgente per l’ascolto.
- Page 9 1 instruction manual If one of the items listed above is missing, please contact your Audio Analogue retailer. After extracting the smallest items from the package, pull out the unit carefully. Separate the package from the anti-shock expanded-foam protections. If batteries are not already placed in the remote controller battery slot, open the slot;...
- Page 10 Do not search the correct phase unless the unit is unplugged. To make plugging easy, Audio Analogue marked the Primo Settanta power cord pin that has to be plugged into the inlet phase hole. It is then sufficient to verify which outlet hole is the phase hole and plug the power cord in inserting the phase pin into the phase hole.
- Page 11 Volume settings and silencing (mute) The volume knob on the front panel and the Vol+/Vol- buttons on the remote controller change the general sound level. It means that the volume of the two channels is altered identically. It is possible to modify the relative level of each channel changing the balance option in the setup.
- Page 12 Phono board (optional) A feature that makes Primo Settanta a very flexible unit is the possibility to install a special board (1) that transforms Line input 1 into a Phono input. If you want to connect Primo Settanta to a record player, please ask for the optional phono board and install it according to the instructions below.
-
Page 13: Specifications
Warnings on Primo Settanta use The volume knob doesn’t operate on a potentiometer. It turns clockwise or anti-clockwise for a few degrees and goes back to the initial position when released. Do not force knob rotation beyond the limit of the mechanism. Both positive and negative terminals of the speakers’... -
Page 14: Troubleshooting
No leds on Power cord incorrectly plugged Make sure the power cord is correctly No sound plugged into the wall outlet Burned-out fuses Contact your Audio Analogue retailer for fuse check and substitution In led on Low volume Increase volume No sound... -
Page 15: Ricerca Guasti
‘AAA’) Eccessiva distanza dal pannello frontale Avvicinarsi di più all’apparecchio o dell’apparecchio o angolo non corretto cambiare angolo Se i rimedi suggeriti non dovessero funzionare oppure il problema non è riportato nella lista, contattate il vostro rivenditore Audio Analogue... - Page 16 Audio Analogue Head Office Ufficio commerciale: Via C. Bottai, 88B - 51015 Monsummano Terme (PT) Italy tel. 0572 954513 fax 0572 954010 R&D Laboratory Laboratorio ricerca e sviluppo: Via XX Settembre, 47 - 56017 San Giuliano Terme (PI) Italy www.audioanalogue.com - info@audioanalogue.com...
