I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Kontour™ Articulating Array Arm Slat Wall Mounts
K4S120
K4S310
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
K4S210
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
K4S120-210-310
Advertisement
Table of Contents
Related Manuals for CHIEF Kontour K4S120
Summary of Contents for CHIEF Kontour K4S120

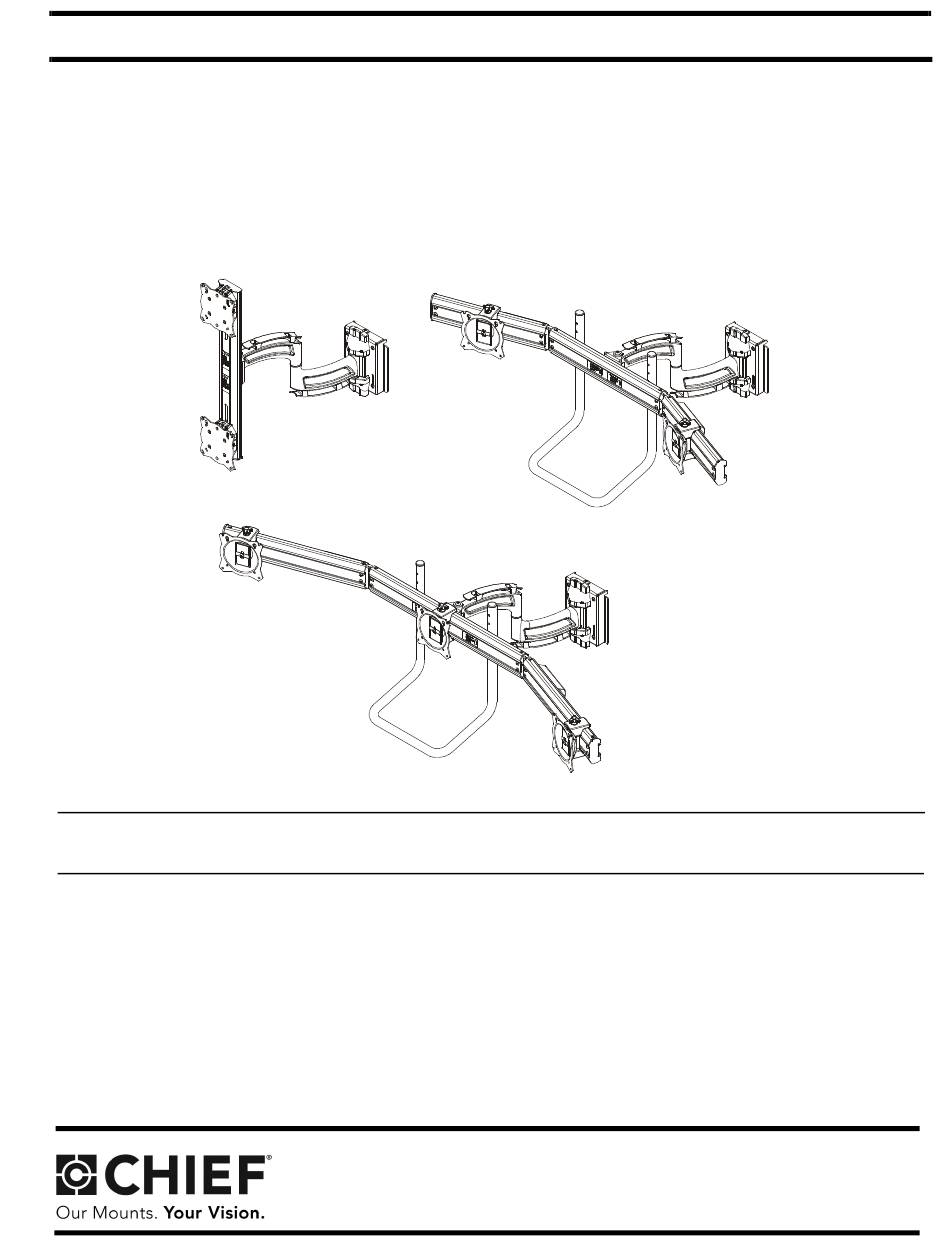

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation K4S120 K4S210 K4S310 Kontour™...
-
Page 2: Important Safety Instructions
Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. IMPORTANT SAFETY INSTRUCTIONS WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. -
Page 3: Installation Instructions
Installation Instructions K4S120-210-310 DIMENSIONS K4S120 21.0 12.0 EXTENSION MINIMUM VESA 100 X 100, 75 X 75 COMPATIBLE INTERFACE 16.00 K4S210 26.1 12.0 EXTENSION MINIMUM VESA 100 X 100, 75 X 75 COMPATIBLE INTERFACE 12 TILT ADJUSTMENT 40.4... - Page 4 K4S120-210-310 Installation Instructions DIMENSIONS (CONTINUED) K4S310 26.8 12.0 EXTENSION MINIMUM VESA 100 X 100, 75 X 75 COMPATIBLE INTERFACE 12 TILT ADJUSTMENT 51.8...
- Page 5 K4S120-210-310 Installation Instructions LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 6: Tools Required For Installation
K4S120-210-310 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 3/16” (included) 1/8” (included) 5/32” (included with K4S210 and K4S310) PARTS B (2-K4S210/310 C (2) D (4) , 4-K4S120) #10-32 x 1” [4 1/2” cable cover] #10-32 x 5/16” A (1) (K4S210/310 ONLY) (K4S210/310 ONLY) [Column arm] F (2-K4S120/K4S210, 3-K4S310) - Display Mounting Hardware - quantities per pack... -
Page 7: Assembly And Installation
Installation Instructions K4S120-210-310 Assembly And Installation Hang array arm (G) onto column arm faceplate using the mounting tab on the faceplates. (See Figure 3) Determine mounting location. (K4S210 shown) Hang wall bracket of mounting arm (A) onto slat wall at desired mounting location by inserting the upper mounting plate into wall track. -
Page 8: Display Installation
K4S120-210-310 Installation Instructions Display Installation Use two #10-32 x 1" button head cap screws (C) to secure two handle (E) to array arm (G). (See Figure 5) NOTE: Keep in mind the size of the display when selecting WARNING: Exceeding the weight capacity can result in which holes to use to attach the handles. - Page 9 Installation Instructions K4S120-210-310 Using Phillips screwdriver, install two M4x12 mm Phillips Pick up and align display so that screws (F1 or F2) (installed pan machine screws (F3) through the lower mounting holes on the back of the display in the previous step) fit into the on faceplate into the display.
- Page 10 K4S120-210-310 Installation Instructions Adjustments Faceplate Assembly Removal Remove socket head cap screw from bottom of faceplate Pivot Adjustment (Column Arm) assembly. (See Figure 12) Use handle (G) to extend or collapse column arms as Slide out removable plate from bottom of faceplate desired.
-
Page 11: Cable Management
Installation Instructions K4S120-210-310 Lateral Shift Cable Management Loosen knob on top of faceplate assembly until faceplate (K4S210 and K4S310 ONLY) Install two 4 1/2” cable covers can slide freely along array. (See Figure 14) (D) to array arms. (See Figure 16) Adjust lateral position as desired. - Page 12 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 918 on 9/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
