I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
K4W120
Kontour™ Articulating Array Arm Wall Series
K4W210
K4W120-210-310
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
K4W310
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
Advertisement
Related Manuals for CHIEF Kontour K4W120
Summary of Contents for CHIEF Kontour K4W120

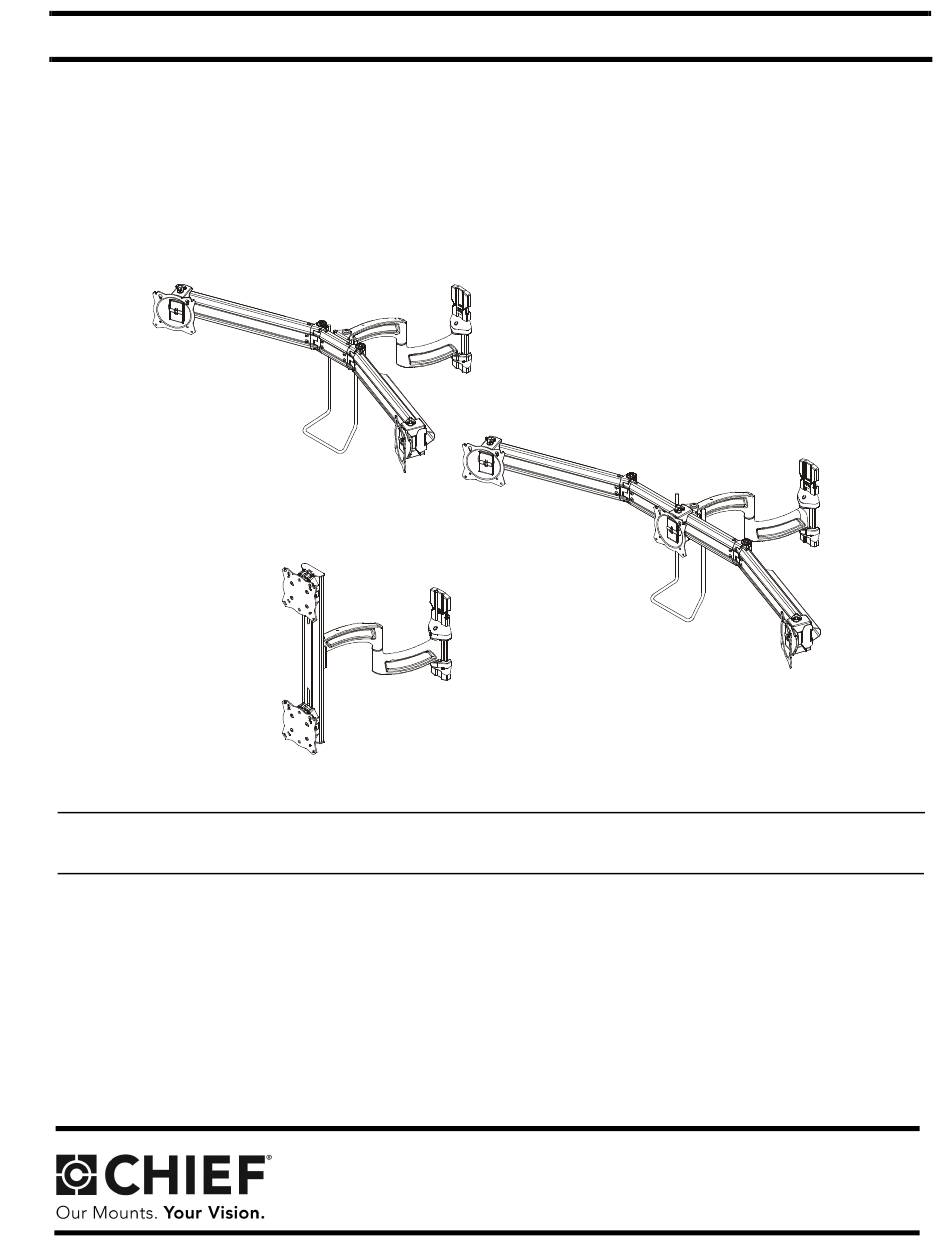

- Page 1 I N S T A L L A T I O N I N S T R U C T I O N S Instrucciones de instalación Istruzioni di installazione Installationsanleitung Installatie-instructies Instruções de Instalação Instructions d´installation K4W210 K4W310 K4W120 Kontour™...
-
Page 2: Important Safety Instructions
Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document. --SAVE THESE INSTRUCTIONS-- Chief® is a registered trademark of Milestone AV Technologies. All rights reserved. IMPORTANT SAFETY INSTRUCTIONS WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions. - Page 3 Installation Instructions K4W120-210-310 DIMENSIONS K4W210 37.14 943.3 K4W310 24.13 612.8...
- Page 4 K4W120-210-310 Installation Instructions DIMENSIONS (CONTINUED) K4W120 19.90 505.5 VESA 100 X 100 & 75 X 75 COMPATIBLE 3.70 94.0 11.59 294.3 20.24 514.1 16.00 MAX [406.4] 12.00 MIN [304.8] 2.58 65.5 5.43 138.0 0.27 2.63 1.60 9.01 40.5 66.7 228.7 4.69 119.1...
- Page 5 Installation Instructions K4W120-210-310 LEGEND Tighten Fastener Pencil Mark Apretar elemento de fijación Marcar con lápiz Befestigungsteil festziehen Stiftmarkierung Apertar fixador Marcar com lápis Serrare il fissaggio Segno a matita Bevestiging vastdraaien Potloodmerkteken Serrez les fixations Marquage au crayon Loosen Fastener Drill Hole Aflojar elemento de fijación Perforar...
-
Page 6: Tools Required For Installation
K4W120-210-310 Installation Instructions TOOLS REQUIRED FOR INSTALLATION 1/8” (wood stud) 5/16” (concrete) (concrete only) 5/16” (included) 3/16” (included) 1/8” (included) PARTS Hardware bag (parts numbered on G (2) bag as shown) [handle clamp] A2 (2) (K4W210/310 only) B (3) A1 (2) C (3) 3/8”... - Page 7 Installation Instructions K4W120-210-310 Assembly And Installation Drill two 1/8” holes at locations marked in Step 6. (See Figure 2) Install to Wall Hang arm assembly (Z) back onto wall. Install Arm Assembly to Wall - Wood Studs 10. Install two 1/4 x 2 1/2” lag bolts (B) into holes drilled in Step 8 to secure mount to wall.
- Page 8 K4W120-210-310 Installation Instructions Install Arm Assembly to Wall Hollow Install one 1/4 x 2 1/2” lag bolt (B) into concrete anchor (C), leaving bolt hanging out 1/2” from the wall. (See Figure 3) Concrete Block or Poured Concrete Hang arm assembly (Z) onto lag bolt (B) by latching key- shaped hole over top of bolt.
- Page 9 Installation Instructions K4W120-210-310 K4W210/310 Installation to Arm Use two 3/8-16 x 2 3/4” socket head carriage screws (A1) (K4W210 shown) and two 3/8” lock nuts (A2) to secure left array arm (X) and (AA) right array arm (Y) to array center (AA or BB). (See Figure 5) (K4W210 shown) (A1) x 2 (D2) x 2...
- Page 10 K4W120-210-310 Installation Instructions Display Installation Use two #10-32 x 3/8” Phillips pan machine screws (D1) and two handle clamps (G) to secure handle (H) to array center (AA or BB). (See Figure 10) Faceplate Positioning (K4W120 only) IMPORTANT ! : Faceplates should be positioned prior to attaching displays for the K4W120 as the height cannot (K4W310 shown) be adjusted with the displays attached to the faceplates.
- Page 11 Installation Instructions K4W120-210-310 WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer’s responsibility to make sure the combined weight of all components located on the K4W Series mount up to (and including) the display does not exceed 15 lbs (6.8 kg) per display.
- Page 12 K4W120-210-310 Installation Instructions Pick up and align display so that screws (N or M) (installed Wall Cover Installation on the back of the display in the previous step) fit into the mounting holes on the faceplate. Lower the display firmly into place.
- Page 13 Installation Instructions K4W120-210-310 Pivot Adjustment (Column Arm) Display Height Adjustment (K4W120 only) Use handle to extend or collapse column arm (Z) as NOTE: Remove display from faceplate in order to expose desired. (See Figure 20) height adjustment screws. (Optional) Loosen or tighten column arm pivot tension Loosen height adjustment screws for specific display that screws as desired to increase or decrease pivot tension.
- Page 14 K4W120-210-310 Installation Instructions To Reattach Faceplate Assembly K4W120 Faceplate(s) Place faceplate assembly on array arm at desired mounting Pitch position. (See Figure 24) Loosen knob on side of center faceplate assembly. (See Slide removable plate back into slot at bottom of faceplate Figure 26) assembly.
- Page 15 Installation Instructions K4W120-210-310 Cable Management - Covers (K4W210/310 only) Route cables along mounting arms. (See Figure 30) Route cables from display through cable management Use cable ties (not included) to secure cables to tie clips covers (V) as desired. (See Figure 28) (E1).
- Page 16 Europe A Franklinstraat 14, 6003 DK Weert, Netherlands P +31 (0) 495 580 852 F +31 (0) 495 580 845 Chief, a products division of Asia Pacific A Office No. 1 on 12/F, Shatin Galleria Milestone AV Technologies 18-24 Shan Mei Street...
