SAMBA 75 USER'S GUIDE
Pin
1
2
3
4
Table 7: Pin assignment of the standard USB connector
4.1.1.2 Interface B (Optical interface)
The actual state of the SAMBA 75 is displayed by three LED's (their functionalities are
described in chapter 4.2) on this interface, see figure below.

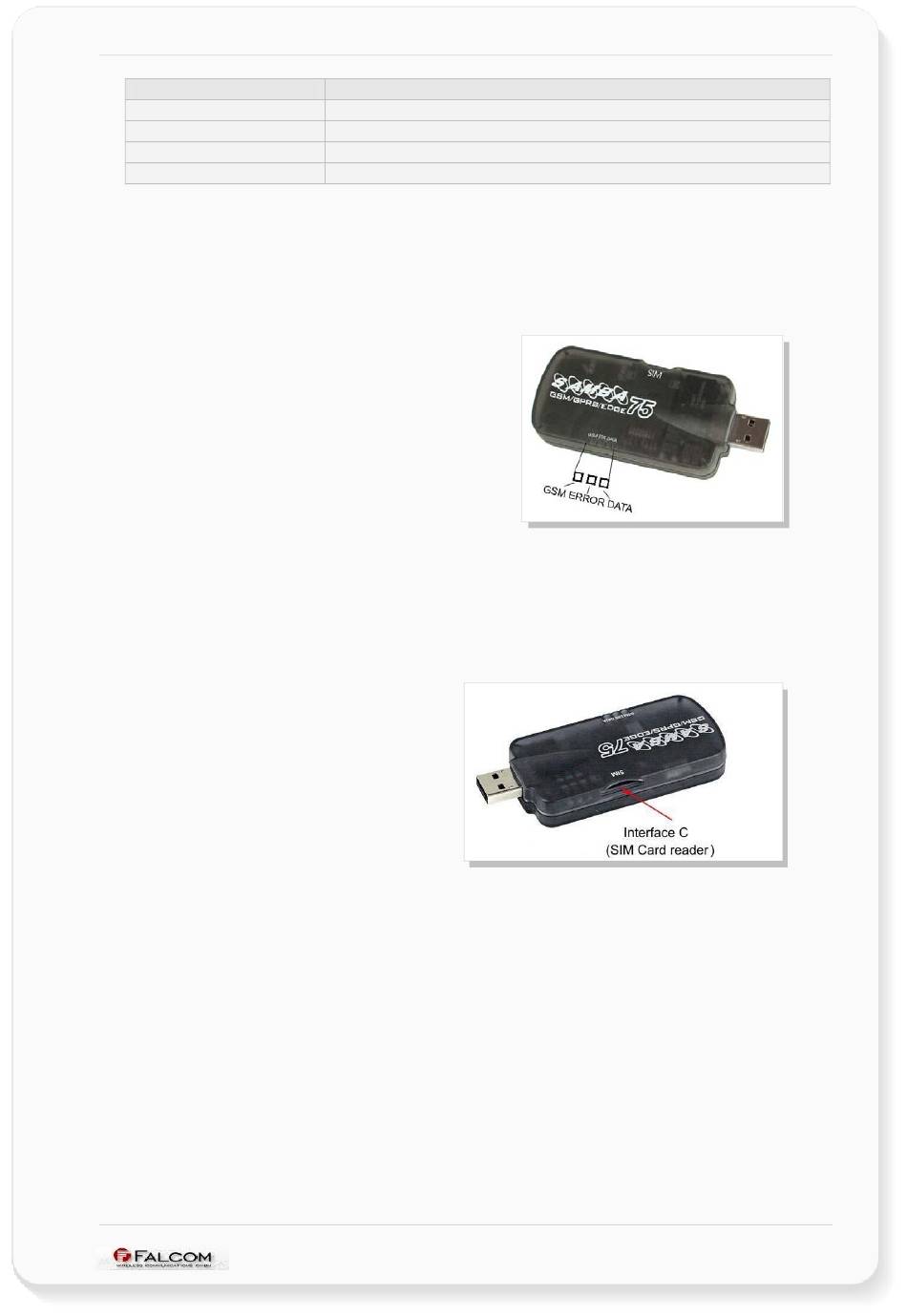

Figure 3: Status indicator of modem
4.1.1.3 Interface C (SIM-Card interface)
The SIM interface controls a 3V SIM card. This interface is fully compliant with
GSM 11.11 recommendations concerning SIM functions.
Figure 4: SIM Card interface
This confidential document is a property of FALCOM GmbH and may not be copied or circulated without previous permission.
Description
+ 5V
- DATA
+ DATA
GND
VERSION 1.01
Page 16
