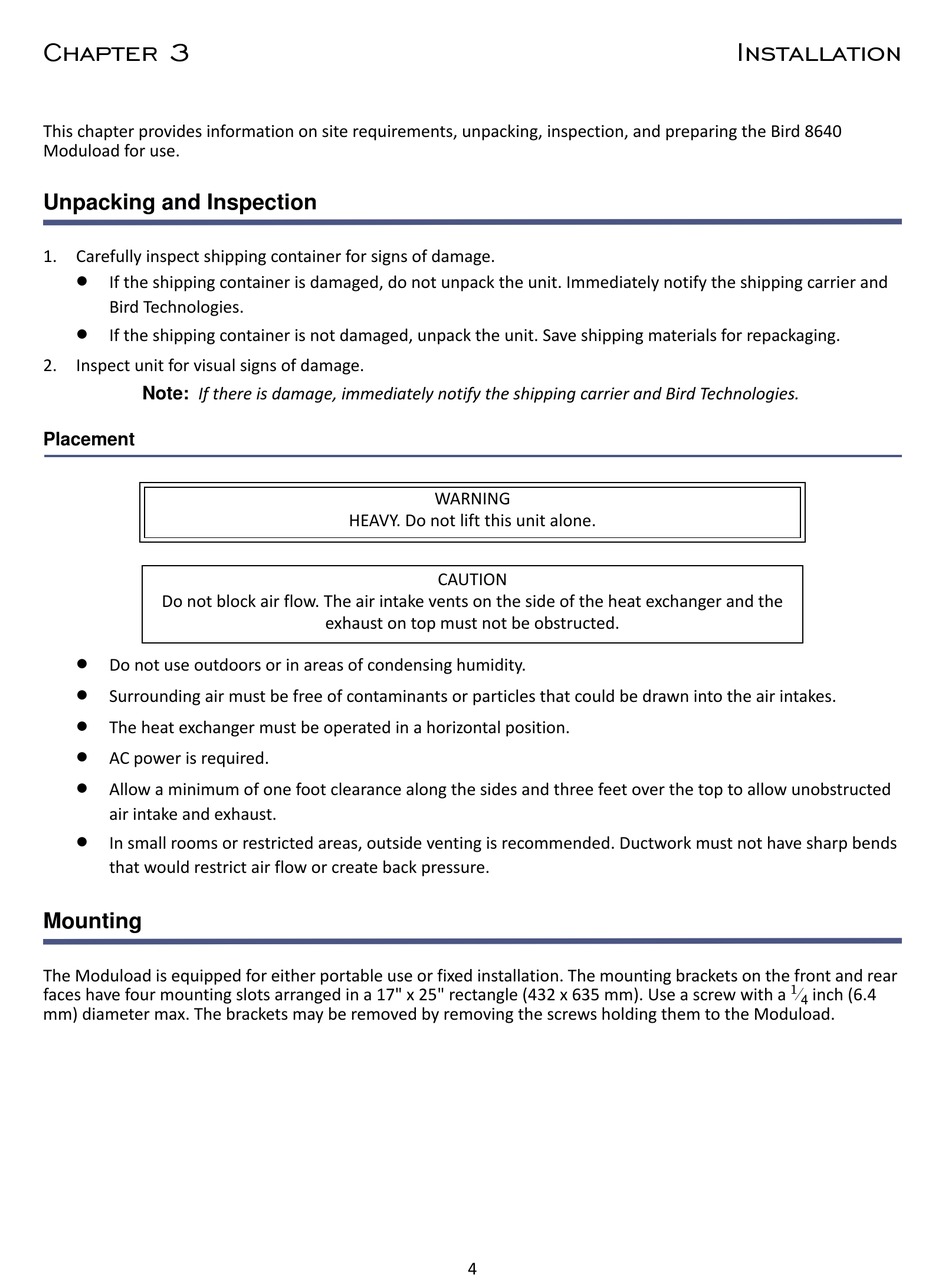

Chapter 3
This chapter provides information on site requirements, unpacking, inspection, and preparing the Bird 8640
Moduload for use.

Unpacking and Inspection

1. Carefully inspect shipping container for signs of damage.

If the shipping container is damaged, do not unpack the unit. Immediately notify the shipping carrier and
Bird Technologies.

If the shipping container is not damaged, unpack the unit. Save shipping materials for repackaging.
2. Inspect unit for visual signs of damage.
Note: If there is damage, immediately notify the shipping carrier and Bird Technologies.

Placement

Do not block air flow. The air intake vents on the side of the heat exchanger and the

Do not use outdoors or in areas of condensing humidity.

Surrounding air must be free of contaminants or particles that could be drawn into the air intakes.

The heat exchanger must be operated in a horizontal position.

AC power is required.

Allow a minimum of one foot clearance along the sides and three feet over the top to allow unobstructed
air intake and exhaust.

In small rooms or restricted areas, outside venting is recommended. Ductwork must not have sharp bends
that would restrict air flow or create back pressure.

Mounting

The Moduload is equipped for either portable use or fixed installation. The mounting brackets on the front and rear
faces have four mounting slots arranged in a 17" x 25" rectangle (432 x 635 mm). Use a screw with a
mm) diameter max. The brackets may be removed by removing the screws holding them to the Moduload.
WARNING
HEAVY. Do not lift this unit alone.
CAUTION
exhaust on top must not be obstructed.
4
Installation
1

inch (6.4
4
