- Page 1 INSTRUCTION BOOK ® TERMALINE LOAD RESISTOR SERIES 8920 COVERING MODELS: 8921 8922 8926 8927 8928 8922D 8926D 8927D ©Copyright 2008 by Bird Electronic Corporation Instruction Book Part Number 920-8920S Rev. H Termaline® and Thruline® are Registered Trademarks of Bird Electronic Corporation...
-
Page 2: Safety Precautions
Safety Precautions The following are general safety precautions that are not necessarily related to any specific part or procedure and do not necessarily appear elsewhere in this publication. These precautions must be thoroughly understood and applied to all phases of operation and maintenance. Keep Away From Live Circuits Operating personnel must at all times observe normal safety regulations. - Page 3 Bird 8920 Series Termaline Coaxial Load Resistor Safety Symbols WARNING Warning notes call attention to a procedure, which if not correctly performed, could result in personal injury. CAUTION Caution notes call attention to a procedure, which if not correctly performed, could result in damage to the instrument.
- Page 4 Do not use in any other manner. CAUTION If installed, connect optional interlock before applying RF power. CAUTION Use only Bird coolant, P/N 5-1070, to prevent damage to the load. Safety Statements USAGE ANY USE OF THIS INSTRUMENT IN A MANNER NOT SPECIFIED BY THE MANUFACTURER MAY IMPAIR THE INSTRUMENT’S SAFETY PROTECTION.
- Page 5 Bird 8920 Series Termaline Coaxial Load Resistor SERVICE SERVICING INSTRUCTIONS ARE FOR USE BY SERVICE - TRAINED PERSONNEL ONLY. TO AVOID DANGEROUS ELECTRIC SHOCK, DO NOT PERFORM ANY SERVICING UNLESS QUALIFIED TO DO SO. SERVICIO LAS INSTRUCCIONES DE SERVICIO SON PARA USO EXCLUSIVO DEL PERSONAL DE SERVICIO CAPACITADO.
-
Page 6: About This Manual
About This Manual This instruction book is arranged so that essential information on safety is in the front of the book. Reading the Safety Precautions before operating the equipment is strongly advised. The remainder of this instruction book is divided into Chapters and Sections. Operation First time operators should read Chapter 1 - Introduction and Chapter 3 - Installation to get an overview of equipment capabilities and how to... -
Page 7: Table Of Contents
Table of Contents Safety Precautions ......i About This Manual ......v Introduction . - Page 8 Repair ............16 RF Connector .
- Page 9 viii...
-
Page 10: Introduction

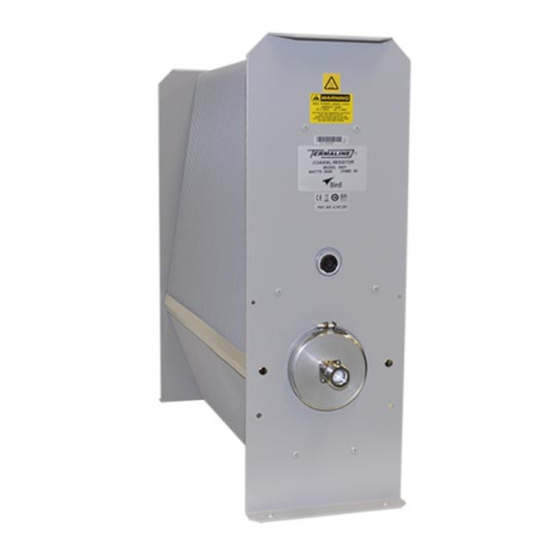

Introduction Bird 8920 Series Loads are portable, 50 ohm, coaxial RF transmission line terminations, designed for frequency ranges of dc – 1 GHz. Bird 8920D Series Loads are identical, except that they are designed for the UHF (470 – 860 MHz) band. They provide accurate, dependable, and low reflection line terminations. - Page 11 Bird 8920 Series Termaline Coaxial Load Resistor Figure 1 Bird 8920 Series Outline Drawing VENT PLUG INTERLOCK THERMOSWITCH (OPTIONAL) 26-7/8” (681mm) (4) MTG. HOLES 8-3/8” 3/8” (10 mm) (212mm) 28-1/4” 7” (718mm) (178mm) DEPENDS ON 9-1/8” CONNECTOR (241mm)
-
Page 12: Theory Of Operation
Chapter 2 Theory of Operation Bird 8920 series loads consist of a thin-film-on-ceramic resistor Load Resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special housing. When surrounded by the coolant, this produces a uniform, practically reflectionless line termination over the specified frequencies. - Page 13 Bird 8920 Series Termaline Coaxial Load Resistor Figure 2 Shipping Plug O-ring seal Figure 3 Vent Plug O-ring seal...
-
Page 14: Installation
3. Inspect all of the components for visible signs of damage. Immediately notify the shipping carrier and Bird Electronic Corporation of equipment damage or missing parts. Place the load in a dry, dust and vibration free environment. Do not Mounting use outdoors or in areas of condensing humidity. -
Page 15: Installing Thermoswitch
Bird 8920 Series Termaline Coaxial Load Resistor Bird 8920 series loads can be equipped with an optional interlock Installing thermoswitch, P/N 8890-008. It is normally closed, opening at 236 °C Thermoswitch (457 °F), with a rating of 10A @ 120 Vac and 5A @ 230 Vac. -
Page 16: Interlock Connection
Installation Connect the thermoswitch to the interlock as follows (see Figure 4): Interlock Connection CAUTION If installed, connect optional interlock before applying RF power. 1. Unscrew the large knurled ring-nut (A) at the lower end of the coupling jack assembly. Pull it off the thermoswitch jack (B). Unscrew the small knurled cover fitting from the base plug (D) of the connector to release the base. -
Page 17: Connecting Rf Power
Bird 8920 Series Termaline Coaxial Load Resistor After installing the load, the RF transmission line can be attached Connecting RF using standard coaxial line coupling kits. Power WARNING Never attempt to connect or disconnect RF equipment from the transmission line while RF power is being applied. - Page 18 Installation Unflanged Coupling: To couple the unflanged connector with an unflanged RF line, use an appropriate coupling kit. Refer to Figure 6 while following the instructions below: Figure 6 RF COAXIAL CLAMPING CONNECTOR BULLET LOAD LINE BANDS SLEEVE Unflanged Coupling Insert the center bullet and bottom it on the midpoint nibs.
- Page 19 Bird 8920 Series Termaline Coaxial Load Resistor...
-
Page 20: Operating Instructions
The vent plug must be used at all times when the unit is operating or cooling. Failure to do so could result in an explosion or severe burns. Bird 8920 series loads have no indicators or operating controls. They Normal Operation require no special operating procedures or surveillance when their performance limits are not exceeded. - Page 21 Bird 8920 Series Termaline Coaxial Load Resistor...
-
Page 22: Maintenance
Chapter 5 Maintenance This chapter covers cleaning, inspection, trouble-shooting, and specifications for the Bird 8920 series loads. WARNING Never attempt to connect or disconnect RF equipment from the transmission line while RF power is being applied. Leaking RF energy is a potential health hazard. -
Page 23: Maintenance
Bird 8920 Series Termaline Coaxial Load Resistor PROBLEM POSSIBLE CAUSE CORRECTION Overheating RF power too high Lower RF power radiator Coolant level too low Check the coolant level. Add coolant if necessary (See “Coolant Level” on page 15) Coolant degraded Replace the coolant (See “Coolant Level”... -
Page 24: Coolant Level
WARNING Oil is slippery. If a leak occurs, be careful not to fall. CAUTION Use only Bird coolant, P/N 5-1070, to prevent damage to the load. To inspect the coolant: NOTE: Correct any coolant leakage before inspection. (See “Troubleshooting” on page 13) Remove the load resistor (Refer to “Load Resistor”... -
Page 25: Repair
Failure to do so could result in an explosion or severe burns. The Model 8921, only, has a special Bird “QC” connector which allows RF Connector easy changing of the RF connector. This does not disturb the coolant seal or affect the electrical continuity of the load. -
Page 26: Storage And Shipment
Any maintenance or service procedure beyond the scope of those in this chapter should be referred to a qualified service center. If you need to return the unit for any reason, contact the Bird Service Center for a return authorization. All instruments returned must be shipped prepaid and to the attention of Bird Service Center. -
Page 27: Specifications
Bird 8920 Series Termaline Coaxial Load Resistor Specifications Frequency Range 8921-MM-3-150 100 - 200 MHz 8922D, 8926D, 8927D 470 – 860 MHz All other models dc – 1 GHz 5000 W continuous duty Power Rating Peak Power for Pulse Width 1 µs... -
Page 28: Replacement Parts
Maintenance 29”L x 9-1/2”W x 26-53/64”H Dimensions (737 x 241 x 681 mm) 119 lb. (54 kg) Weight, Nominal Finish 8921-MM-3-150 Black All other models Grey Powder Coat * Set the duty factor so that load’s average power rating is not exceeded. †... -
Page 29: Available "Qc" Type Connectors
Bird 8920 Series Termaline Coaxial Load Resistor Available “QC” Type Connectors Connector Part Connector Part Connector Part Number Number Number BNC-Female 4240-125 LT-Female 4240-018 Mini UHF-Female 4240-346 BNC-Male 4240-132 LT-Male 4240-012 UHF-Female 4240-050 C-Female 4240-100 N-Female 4240-062 UHF-Male 4240-179 C-Male... - Page 30 Limited Warranty All products manufactured by Seller are warranted to be free from defects in material and workmanship for a period of one (1) year, unless otherwise specified, from date of shipment and to conform to applicable specifications, drawings, blueprints and/or samples. Seller’s sole obligation under these warranties shall be to issue credit, repair or replace any item or part thereof which is proved to be other than as warranted;...
