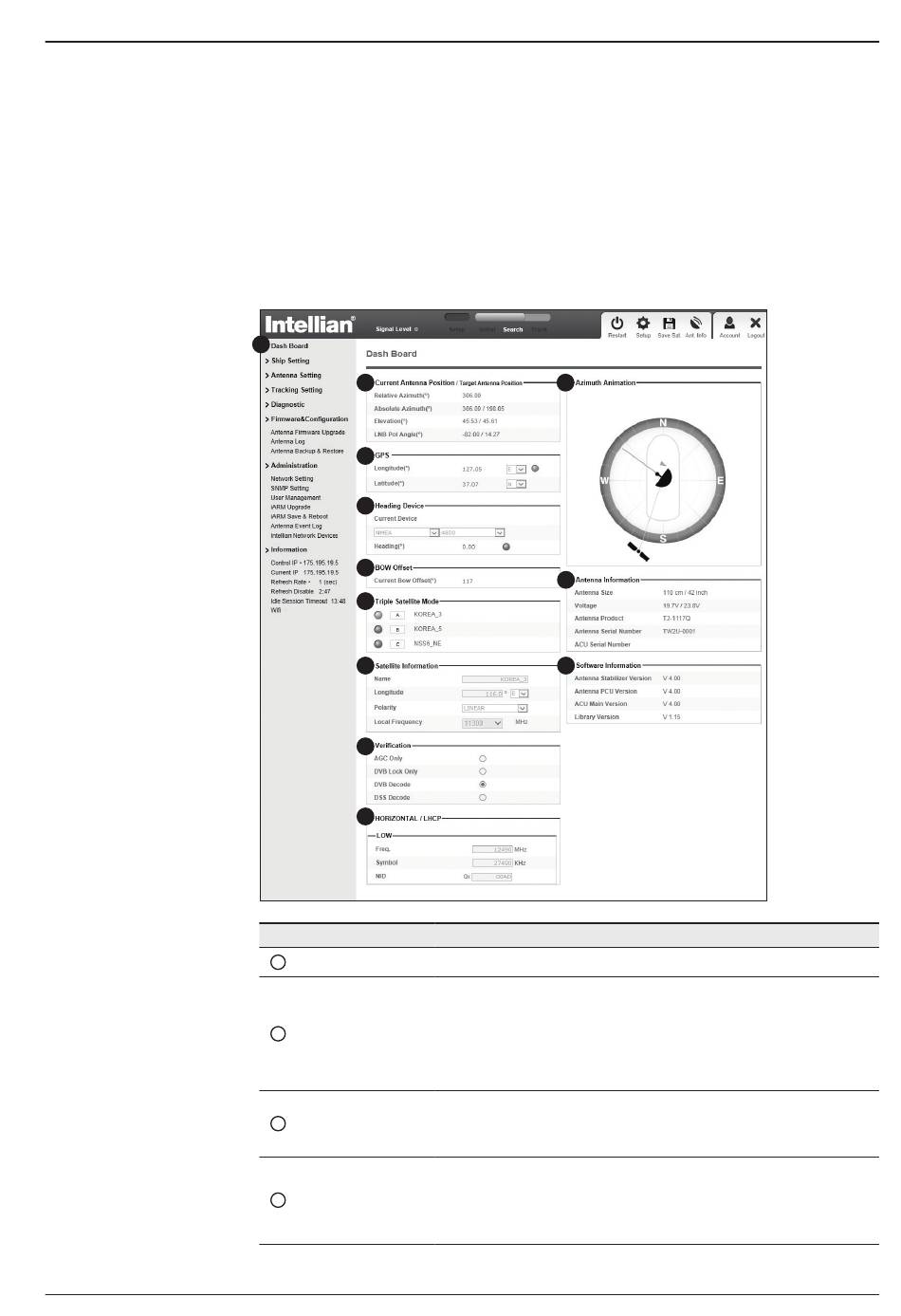

Dash Board & Information
On the left side of the page, Dash Board and Information menus are displayed
as below to provide quick monitoring of the antenna status and settings. Other
menus are displayed only in the Control & Monitoring mode and their functions will
be described in the next sections.
1
2
3
4
5
6
7
8
9
No. Item
Dash Board
1
Current Antenna
Position /
2
Target Antenna
Position
GPS
3
Heading
4
Device
10
11
12
Description
Displays current antenna status to be quickly monitored.
Displays current antenna position.
- Relative Azimuth: displays antenna relative AZ angle.
- Absolute Azimuth: displays antenna absolute AZ angle.
- Elevation: displays antenna elevation angle.
- LNB Pol Angle: displays LNB pol angle.
Displays current GPS information.
- Longitude (East / West)
- Latitude (North / South)
Displays current Heading Device: NONE, NMEA, NMEA 2000,
Ground test If the ship's gyrocompass input is other than NMEA
separate purchase of NMEA Converter is required.
- Heading: displays ship's heading information.
Aptus WEB
