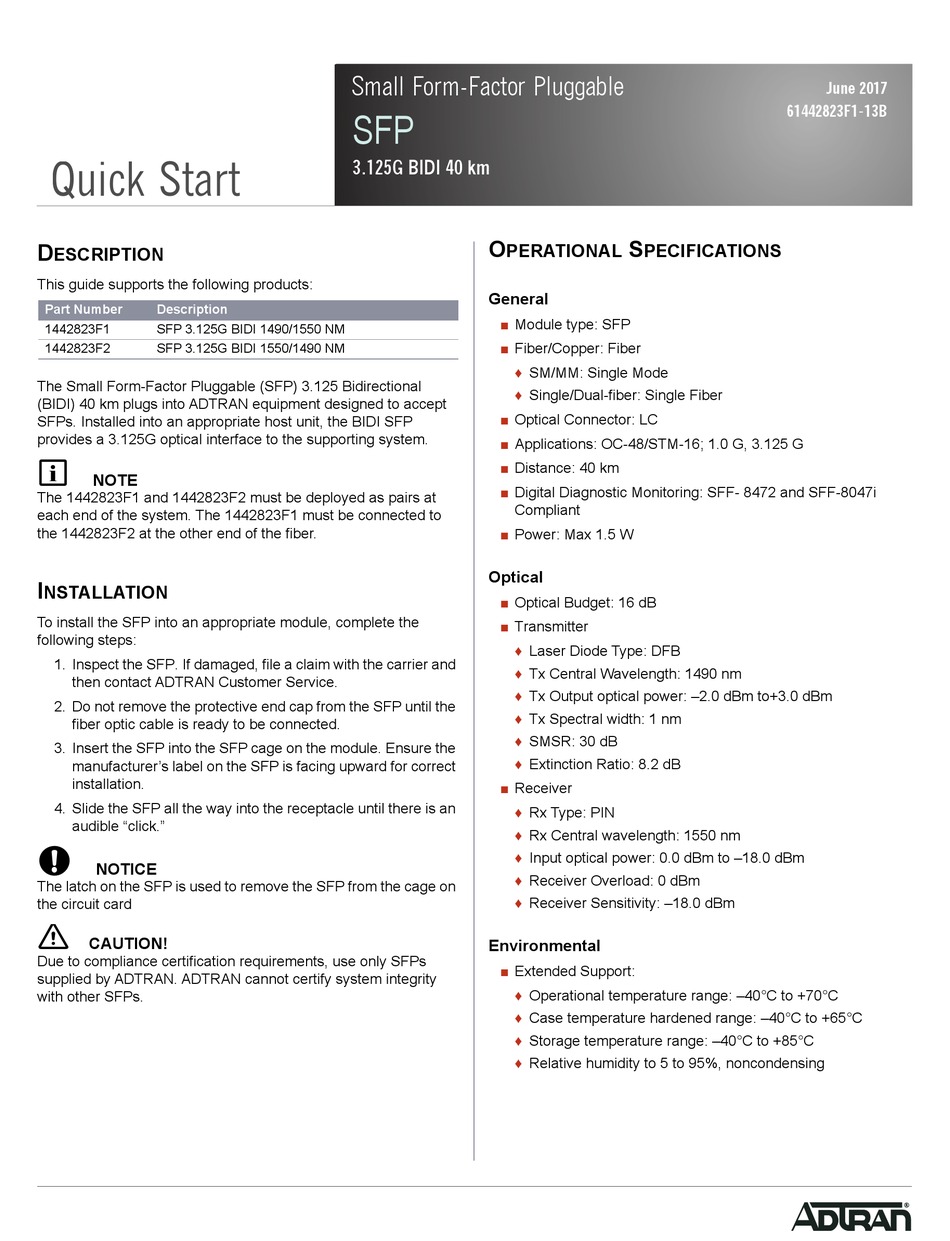

Quick Start
D
ESCRIPTION
This guide supports the following products:
Part Number
Description
1442823F1
SFP 3.125G BIDI 1490/1550 NM
1442823F2
SFP 3.125G BIDI 1550/1490 NM
The Small Form-Factor Pluggable (SFP) 3.125 Bidirectional
(BIDI) 40 km plugs into ADTRAN equipment designed to accept
SFPs. Installed into an appropriate host unit, the BIDI SFP
provides a 3.125G optical interface to the supporting system.
g
NOTE
The 1442823F1 and 1442823F2 must be deployed as pairs at
each end of the system. The 1442823F1 must be connected to
the 1442823F2 at the other end of the fiber.
I
NSTALLATION
To install the SFP into an appropriate module, complete the
following steps:
1. Inspect the SFP. If damaged, file a claim with the carrier and
then contact ADTRAN Customer Service.
2. Do not remove the protective end cap from the SFP until the
fiber optic cable is ready to be connected.
3. Insert the SFP into the SFP cage on the module. Ensure the
manufacturer's label on the SFP is facing upward for correct
installation.
4. Slide the SFP all the way into the receptacle until there is an
audible "click."
w
NOTICE
The latch on the SFP is used to remove the SFP from the cage on
the circuit card
f
CAUTION!
Due to compliance certification requirements, use only SFPs
supplied by ADTRAN. ADTRAN cannot certify system integrity
with other SFPs.
Small Form-Factor Pluggable
SFP
3.125G BIDI 40 km
O
PERATIONAL
General
■
Module type: SFP
■
Fiber/Copper: Fiber
♦
SM/MM: Single Mode
♦
Single/Dual-fiber: Single Fiber
■
Optical Connector: LC
■
Applications: OC-48/STM-16; 1.0 G, 3.125 G
■
Distance: 40 km
■
Digital Diagnostic Monitoring: SFF- 8472 and SFF-8047i
Compliant
■
Power: Max 1.5 W
Optical
■
Optical Budget: 16 dB
■
Transmitter
♦
Laser Diode Type: DFB
♦
Tx Central Wavelength: 1490 nm
♦
Tx Output optical power: –2.0 dBm to+3.0 dBm
♦
Tx Spectral width: 1 nm
♦
SMSR: 30 dB
♦
Extinction Ratio: 8.2 dB
■
Receiver
♦
Rx Type: PIN
♦
Rx Central wavelength: 1550 nm
♦
Input optical power: 0.0 dBm to –18.0 dBm
♦
Receiver Overload: 0 dBm
♦
Receiver Sensitivity: –18.0 dBm
Environmental
■
Extended Support:
♦
Operational temperature range: –40°C to +70°C
♦
Case temperature hardened range: –40°C to +65°C
♦
Storage temperature range: –40°C to +85°C
♦
Relative humidity to 5 to 95%, noncondensing
61442823F1-13B
S
PECIFICATIONS
June 2017
