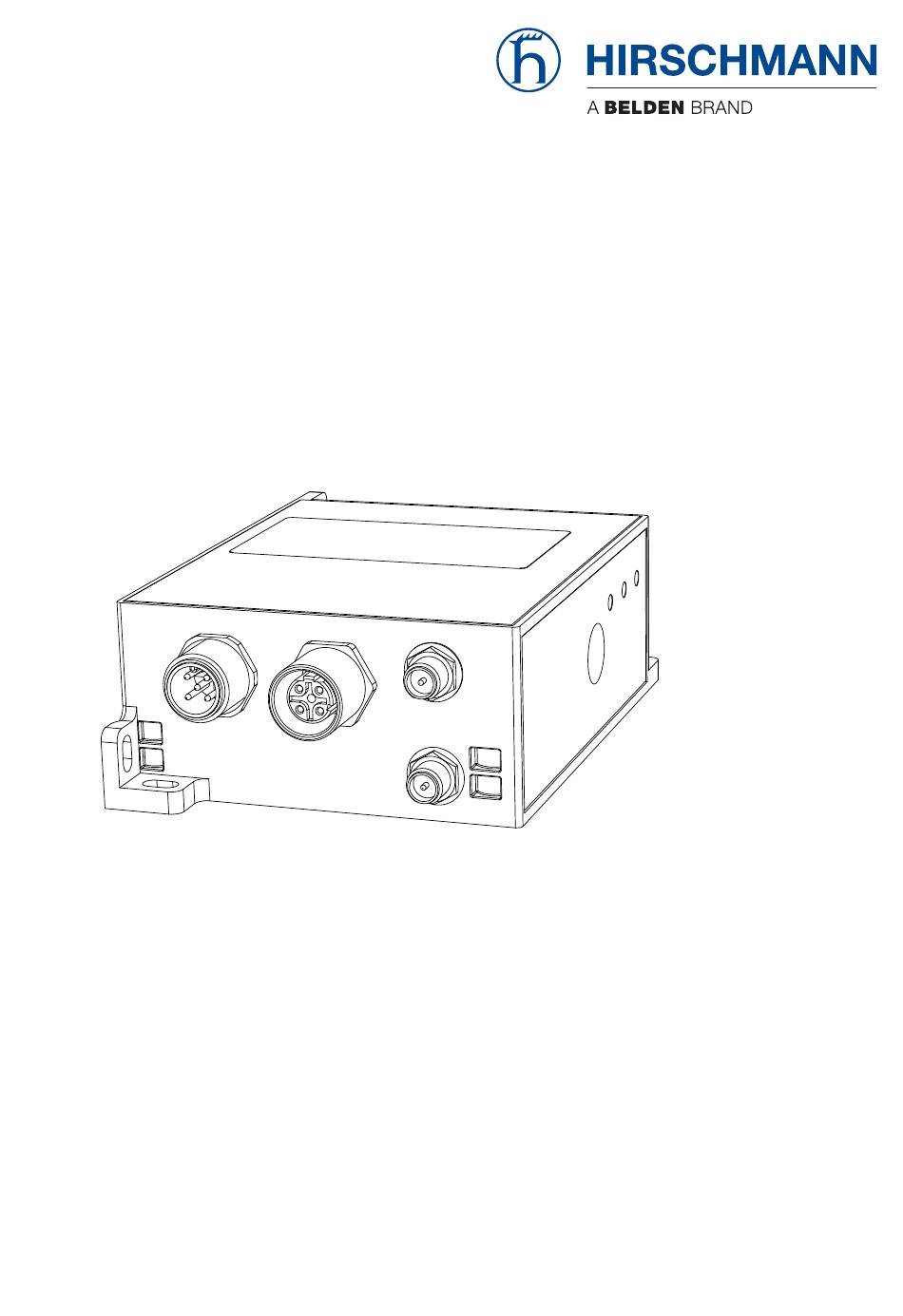

- Page 1 User Manual Installation Industrial Wireless LAN Client BAT-C2 Installation BAT-C2 Technical support Release 01 03/2019 https://hirschmann-support.belden.com...
- Page 2 In addition, we refer to the conditions of use specified in the license contract. You can get the latest version of this manual on the Internet at the Hirschmann product site (www.hirschmann.com). Hirschmann Automation and Control GmbH Stuttgarter Str.
-
Page 3: Table Of Contents
Connecting the power supply and the signal contact lines Grounding and operating the device 2.5.1 Connecting the power supply via a 5-pin M12 plug (“A”-coded) Connecting data cables Making basic settings Maintenance and service Disassembly Technical data Installation BAT-C2 Release 01 03/2019... - Page 4 Exemplary power consumption values depending on modulation type and data throughput 6.8.1 IEEE 802.11b 6.8.2 IEEE 802.11g 6.8.3 IEEE 802.11a 6.8.4 IEEE 802.11n 6.8.5 IEEE 802.11ac Scope of delivery, order numbers and accessories Underlying technical standards Further support Installation BAT-C2 Release 01 03/2019...
-
Page 5: Safety Instructions
Certified usage Use the product only for the application cases described in the Hirschmann product information, including this manual. Operate the product only according to the technical specifications. See “Technical data” on page 26. Connect to the product only components suitable for the requirements of the specific application case. - Page 6 Shielding ground The shielding ground of the connectable twisted pair cable is connected to the grounding connector as a conductor. Beware of possible short circuits when connecting a cable section with conductive shielding braiding. Installation BAT-C2 Release 01 03/2019...
- Page 7 The connected voltage is limited by a current limitation device or a fuse. Observe the electrical threshold values for the signal contact. See “General technical data” on page 26. Table 2: Requirements for connecting the signal contact Installation BAT-C2 Release 01 03/2019...
- Page 8 The power supply cable is suitable for the voltage, the current and the physical load. Hirschmann recommends a wire diameter of 0.5 mm² to 0.75 mm² (AWG20 up to AWG18). The cross-section of the ground conductor is the same size as or bigger than the cross-section of the power supply cables.
- Page 9 In accordance with the above-named EU directive(s), the EU conformity declaration will be available to the relevant authorities at the following address: Hirschmann Automation and Control GmbH Stuttgarter Str. 45-51 72654 Neckartenzlingen Germany www.hirschmann.com...
- Page 10 Note for the use in the USA and in Canada The following section applies to BAT-C2 variants with the characteristic value US (USA/Canada) for country approvals which are labeled as...
- Page 11 The maximum antenna gain permitted for the device in the 5725 MHz to 5850 MHz band shall be such that the equipment still complies with the EIRP limits specified for point-to-point and non-point-to-point operation as appropriate. High-power radars are allocated as primary users (i.e. priority users) of the 5250 MHz to 5350 MHz band and of the 5650 MHz to 5850 MHz band.
-
Page 12: About This Manual
Documentation mentioned in the “User Manual Installation” that is not supplied with your device as a printout can be found as PDF files for downloading on the Internet at: https://www.doc.hirschmann.com Installation BAT-C2 Release 01 03/2019... -
Page 13: Key
The symbols used in this manual have the following meanings: Listing Work step Subheading Installation BAT-C2 Release 01 03/2019... -
Page 14: Description
The Hirschmann network components help you ensure continuous communication across all levels of the company. The device provides you with a large range of functions, which the “User Manual Configuration”... -
Page 15: Device Views
5-pin, “A”-coded M12 plug for power supply and signal contact Device-specific label 4-pin, “D”-coded M12 socket for 10/100 Mbit/s twisted pair connections Antenna connection “Ant1” (Main) Reset button LED display elements Antenna connection “Ant2” (Diversity) Installation BAT-C2 Release 01 03/2019... -
Page 16: Power Supply
Autocrossing (if autonegotiation is activated) 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode Delivery state: Autonegotiation activated The socket housing is electrically connected with the device housing. Installation BAT-C2 Release 01 03/2019... -
Page 17: Pin Assignments
1.4.1 Pin assignments M12 4-pin (“D”-coded) Data TX− RX− Installation BAT-C2 Release 01 03/2019... -
Page 18: Connections For Antennas
Device is associated with Access Point on STA interface orange Short flashing WPS (Wi-Fi® Protected Setup) triggered orange flashes 3× long, 2× WPS (Wi-Fi® Protected Setup) profile error short, 2 seconds off (repeat) Installation BAT-C2 Release 01 03/2019... -
Page 19: Signal Contact
See “General technical data” on page 26. Reset button The device has a reset button. You will find detailed information regarding the configuration in the “User Manual Configuration”. The manual is available for download on the Internet: https:// www.doc.hirschmann.com Installation BAT-C2 Release 01 03/2019... -
Page 20: Installation
The devices have 2 Reverse SMA connectors for connecting external antennas. Note: When using 2 antennas type BAT-ANT-RSMA-2AGN-R, you must align each antenna in another spatial direction (x-y) so that both antennas are arranged at right angles to each other. Installation BAT-C2 Release 01 03/2019... -
Page 21: Connecting The Power Supply And The Signal Contact Lines
You find the prescribed tightening torque of the locking screw in chapter: See “General technical data” on page 26. Insert the socket into the 5-pin M12 plug on the device. Enable the supply voltage. Installation BAT-C2 Release 01 03/2019... -
Page 22: Connecting Data Cables
Connecting data cables Further information: See “Ethernet port” on page 16. Connect the data cable according to your requirements. Installation BAT-C2 Release 01 03/2019... -
Page 23: Making Basic Settings
Use the quick setup to do the first settings. Alternatively, skip the quick setup to do the first settings manually. You will find detailed information regarding the configuration in the “User Manual Configuration”. The manual is available for download on the Internet: https:// www.doc.hirschmann.com Installation BAT-C2 Release 01 03/2019... -
Page 24: Maintenance And Service
Check regularly whether there is an updated version of the software that provides you with additional benefits. You find information and software downloads on the Hirschmann product pages on the Internet (http://www.hirschmann.com). Note: You find information on settling complaints on the Internet at http:// www.beldensolutions.com/en/Service/Repairs/index.phtml. -
Page 25: Disassembly
Disassembly Disconnect the data cable. Disable the supply voltage. Disconnect the power supply cable. Remove the antennas. Installation BAT-C2 Release 01 03/2019... -
Page 26: Technical Data
795 hPa (+6562 ft; +2000 m) max. 1060 hPa (-1312 ft; -400 m) Pollution degree Protection classes Degree of protection IP65 a. Temperature of the ambient air at a distance of 2 in (5 cm) from the device Installation BAT-C2 Release 01 03/2019... -
Page 27: Dimension Drawings
Dimension drawings 2.83 14,7 0.58 32,6 1.28 53,7 2.11 20,5 0.26 58,2 0.81 2.29 Reset Figure 3: Dimension drawings Installation BAT-C2 Release 01 03/2019... -
Page 28: Radio Technology
Support of 2.4 GHz and 5 GHz: 2412 MHz to 2484 MHz and 4900 MHz to 5845 MHz Modulation technology OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM DSSS/CCK Radio topology WLAN-Access-Point, WLAN-Client, Router-Mode, Host-Bridge, Network-Bridge, Gateway (NAT) Installation BAT-C2 Release 01 03/2019... -
Page 29: Receiving Sensitivity, Transmit Power And Data Rate
Bandwidth 20 MHz Data rate Transmit power Receiving sensitivity 6 Mbit/s 14 dBm −92 dBm 54 Mbit/s 14 dBm −76 dBm Table 7: IEEE 802.11a, frequency range 5.180 GHz to 5.825 GHz, bandwidth 20 MHz Installation BAT-C2 Release 01 03/2019... -
Page 30: Ieee 802.11N
Frequency range 5.180 GHz to 5.825 GHz Bandwidth 40 MHz Coding Transmit power Receiving sensitivity MCS 0 13 dBm −92 dBm MCS 7 13 dBm −74 dBm Table 11: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth 40 MHz Installation BAT-C2 Release 01 03/2019... -
Page 31: Ieee 802.11Ac
80 MHz ... 1000 MHz 20 V/m 1000 MHz ... 3000 MHz 10 V/m 3000 MHz ... 6000 MHz 10 V/m EN 61000-4-4 Fast transients (burst) DC power line 2 kV Data line 1 kV Installation BAT-C2 Release 01 03/2019... -
Page 32: Network Range
Length of a twisted pair segment max. 328 ft (100 m) (for Cat5e cable) Table 15: Network range: 10/100/1000 Mbit/s twisted pair port Power consumption/power output Power consumption Power output 3.8 W 13 Btu (IT)/h Table 16: Power consumption/power output Installation BAT-C2 Release 01 03/2019... -
Page 33: Exemplary Power Consumption Values Depending On Modulation Type And Data Throughput
UDP power consumption values In order to determine the UDP power consumption values, an unidirectional data transfer with static data rate and modulation and with fixed data throughput was set up from the client (BAT-C2) to the access point using Iperf. 6.8.1 IEEE 802.11b... -
Page 34: Ieee 802.11A
2.8 W 5 Mbit/s 6 Mbit/s 2.5 W 3 Mbit/s MCS 4 2.6 W 19 Mbit/s 39 Mbit/s 2.6 W 19.5 Mbit/s Table 20: IEEE 802.11n, frequency range 2.412 GHz to 2.472 GHz, bandwidth 20 MHz Installation BAT-C2 Release 01 03/2019... - Page 35 24 Mbit/s 46 Mbit/s 2.6 W 23 Mbit/s MCS 7 2.6 W 26 Mbit/s 2.7 W 47 Mbit/s 2.5 W 23.5 Mbit/s Table 22: IEEE 802.11n, frequency range 5.180 GHz to 5.825 GHz, bandwidth 40 MHz Installation BAT-C2 Release 01 03/2019...
-
Page 36: Ieee 802.11Ac
2.7 W 50 Mbit/s 2.6 W 25 Mbit/s MCS 9 2.6 W 27 Mbit/s 2.6 W 50 Mbit/s 2.5 W 25 Mbit/s Table 25: IEEE 802.11ac, frequency range 5.180 GHz to 5.825 GHz, bandwidth 80 MHz Installation BAT-C2 Release 01 03/2019... -
Page 37: Scope Of Delivery, Order Numbers And Accessories
Other accessories Order number M12 power supply plug ELKA 5012 PG7 933 170-100 BAT-ANT-RSMA-2AGN-R (10 pieces) 942 046-001 50 Ω terminating resistors for sealing unused antenna connections, N 942 117-001 (10 pieces) Installation BAT-C2 Release 01 03/2019... -
Page 38: Underlying Technical Standards
Information technology equipment – Safety – Part 1: General requirements The device has an approval based on a specific standard exclusively if the approval indicator appears on the device casing. The device generally fulfills the technical standards named in their current versions. Installation BAT-C2 Release 01 03/2019... -
Page 39: A Further Support
Further support Technical questions For technical questions, please contact any Hirschmann dealer in your area or Hirschmann directly. You find the addresses of our partners on the Internet at http:// www.hirschmann.com. A list of local telephone numbers and email addresses for technical support...
