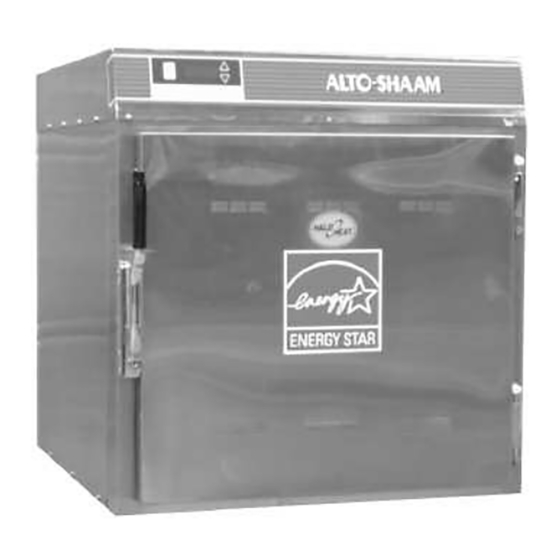

OPERATION and CAR E MAN UAL
CABINET, FOOD HOLDING
ELECTRONIC CONTROL
750-S/HD
MODEL:
(230V)
MARINE
203839
COOK/HOLD/SERVE SYSTEMS
W 1 6 4 N 9 2 2 1 W a t e r S t r e e t • P . O . B o x 4 5 0 • M e n o m o n e e F a l l s , W i s c o n s i n 5 3 0 5 2 - 0 4 5 0 U S A
PHONE:
262.251.3800 • 800.558-8744
/
Fax:
262.251.7067 • 800.329.8744
/
USA
CANADA
USA
CANADA
WEB SITE: www.alto-shaam.com
.
.
.
P R I N T E D I N U
S
A
7 5 0 - S / H D M A R I N E 1 1 / 0 6
